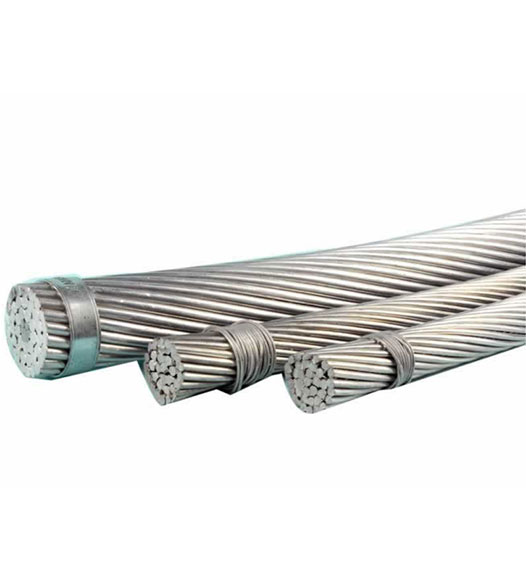

Kleur fan aluminium-konduktor stiel fersterke (ACSR) Kabel, overhead elektryske kabel

OERSICHT

Spesifikaasjes

KONSTRUKSJE

Parameter

Lit jo feedback ferlitte

Oanfraach

Acsr-kondukteurs wurde breed brûkt foar elektryske macht oerdracht oer lange ôfstannen, om't se ideaal binne foar spanen fan lange overhead. Se wurde ek brûkt as messenger foar it stypjen fan overhead elektryske kabels.

Storards:

Basic-ûntwerp nei BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232 / B 232m / DIN 4110 / as 3607 noarmen.

Elektroanyske eigenskippen

Density @ 20OC: Aluminium: 2,703 kg / DM
Galvanisearre stiel: 7,80 kg / DM
Temperatur Coefficient @ 20 ° C: Aluminium: 0.00403 (° C)
VERWENT.17 @ 20 ° C: Aluminium: moat net mear as 0,2828264
Lineêre útwreidicht foar Lineêre: Aluminium: 23 X10 (° C)
Galvanisearre stiel: 11,5 x10 (1 / ° C)

Tsjinstbetingsten

Jerongen Temperatur: -5 ° C - 50 ° C
Winddruk: 80 - 130kg / m ^ 2
Seismic Acceleration: 0.12 - 0.05G
Isokeraunic Level: 10 - 18
Relative Luftfeuchtigkeit: 5 - 100%

Spesifikaasjes

Rohs

konstruksje

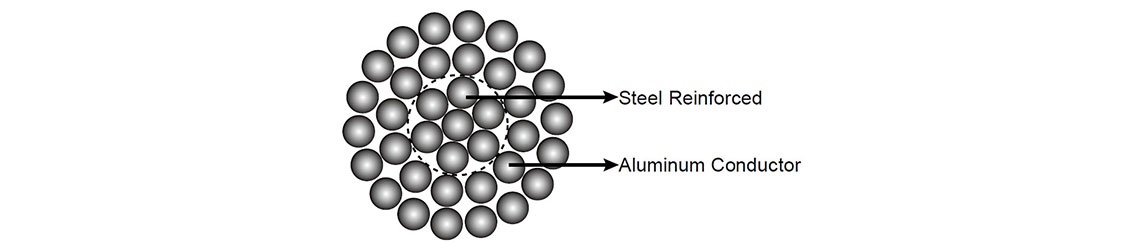

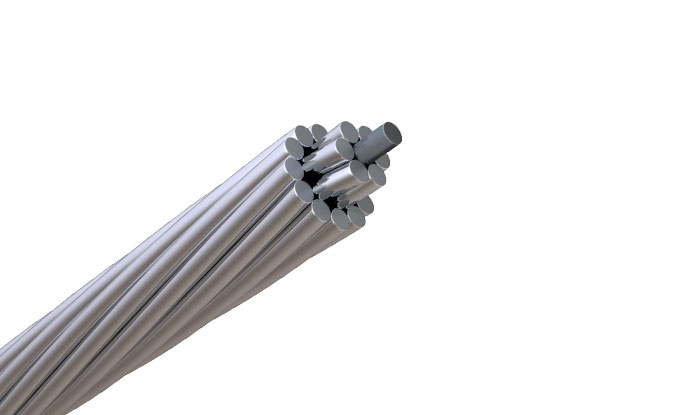

Acsr-konduksjes wurde foarme troch ferskate draden fan aluminium en galvanisearre stiel, strâne yn konsentryske lagen. De draad of draad dy't de kearn foarmje, binne makke fan galvanisearre stiel en de eksterne laach of lagen, binne fan aluminium. Galvanisearre stielkore besteane normaal fan 1, 7 of 19 draden. De diameters fan stielen en aluminiumdraden kinne itselde wêze, as oars.
Troch de relative proporsjes te feroarjen fan aluminium en stiel, kin de fereaske skaaimerken foar elke bepaalde oanfraach wurde berikt. In hegere U. T. S. S. kin wurde krigen, troch stielen te ferheegjen, en in hegere hjoeddeistige draachkapasiteit troch te ferheegjen fan aluminiere ynhâld.
Acsr is lang breed brûkt as overhead hege hege spanning-oerdrachtlinen en hat in fêststelde reputaasje foar ekonomy en ôfhinklikens. De yllustraasje hjirûnder toant typyske standertgrutte en strânde patroanen.

parameter

Bs 215-2

BS EN 50182

IEC 61089

ASTM B 232 / B 232m

Din 48204

Jis C 3110

As 3607

Koade	Nominaal gebiet				Strontearje		ALLE DIAMETER		Gewicht (Cu)			Wurdearre krêft	Elektroanyske ferset @ 20O
	Al		Stiel	Folslein	Al	Stiel	Kearn	Folslein	Al	Stiel	Folslein
	Nominaal	Teorical	Stiel	Folslein	Al	Stiel	Kearn	Folslein	Al	Stiel	Folslein
	mm ^ 2	mm ^ 2	mm ^ 2	mm ^ 2	Nee. × mm	Nee. × mm	MM	MM	Kg / KM	Kg / KM	Kg / KM	Kn	Ω / km
Mol	10	10.62	1.77	12.39	6/1.50	1/1.50	1.50	4.5	29	14	43	4.14	2.706
Iikhoarn	20	20.94	3.49	24.43	6/2.11	1/2.11	2.11	6.33	57	28	85	7.88	1.368
Gopher	25	26.24	4.38	30.62	6/2.36	1/2.36	2.36	7.08	71	35	106	9.61	1.093
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	2.59	7.77	87	41	128	11.45	0.9077
Fokse	35	36.66	6.11	42.77	6/2.79	1/2.79	2.79	8.37	101	48	149	13.2	0.7822
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	3.0	9.0	117	55	172	15.2	0.6766
Knyn	50	52.88	8.82	61.7	6/3.35	1/3.35	3.35	10.05	145	69	214	18.35	0.5426
Meist	60	63.18	10.53	73.71	6/3.66	1/3.66	3.66	10.98	171	84	255	2.18	0.4545
Skurker	60	63.27	37.03	100.3	12/2.59	7/2.59	7.77	12.95	178	287	465	5.3	0.4567
Bever	70	74.82	12.47	87.29	6/3.99	1/3.99	3.99	11.97	203	99	302	2.57	0.3825
Hynder	70	73.37	42.63	116.2	12/2.79	7/2.79	8.37	13.95	203	335	538	61.2	0.3936
Racoon	75	79.2	13.2	92.4	6/4.1	1/4.1	4.1	12.3	216	104	320	27.2	0.3622
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	4.22	13.98	226	113	339	28.8	0.3419
Kat	90	95.44	15.86	111.3	6/4.5	1/4.5	4.5	15.9	258	128	386	32.7	0.3007
Hazze	100	105	17.5	122.5	6/4.72	1/4.72	4.72	17.5	284	141	425	36.0	0.2733
Hûn	100	105	13.5	118.5	6/4.72	7/1.57	4.71	14.15	288	106	394	32.7	0.2733
Hyéna	100	105.8	20.4	126.2	7/4.39	7/1.93	5.79	14.57	250	200	450	40.9	0.2712
Leoperd	125	131.3	16.8	148.1	8/5.28	7/1.75	5.25	15.81	310	182	492	40.7	0.2184
Coyotte	125	132.1	20.1	152.2	26/2.54	7/1.91	5.73	15.89	410	112	522	46.4	0.2187
Kongar	125	130.3	7.2	137.5	18/3.05	1/3.05	3.05	15.25	361	58	419	29.8	0.2189
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	7.08	16.52	365	237	602	58	0.2202
Wolf	150	158.1	36.8	194.9	30/2.59	7/2.59	7.77	18.13	441	285	726	69.2	0.1828
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	3.35	16.75	437	69	506	35.7	0.1815
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	8.37	19.53	507	335	842	79.8	0.1576
Caracal	175	184.3	10.2	194.5	18/3.61	1/3.61	3.61	18.05	507	80	587	41.1	0.1563
Panter	200	212.1	49.4	261.5	30/3.00	7/3.00	9.0	21.0	586	388	974	92.25	0.1363
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	3.86	19.3	580	91	671	46.55	0.1367
Liuw	225	238.5	55.7	294.2	30/3.18	7/3.18	9.54	22.26	657	438	1095	100.6	0.1212
Bear	250	264	61.6	325.6	30/3.35	7/3.35	10.05	23.45	728	485	1213	111.1	0.1090
Geit	300	324.3	75.7	400	30/3.71	7/3.71	11.13	25.79	894	595	1489	135.7	0.0891
Skiep	350	374.1	87.3	461.4	30/3.99	7/3.99	11.97	27.93	1031	687	1718	155.9	0.0770
Antilope	350	373.1	48.4	421.5	54/2.97	7/2.97	8.91	26.73	1040	371	1411	118.2	0.0772
Bizon	350	381.8	49.5	431.3	54/3.00	7/3.00	9.0	27.0	1064	380	1444	120.9	0.7573
Sebra	400	428.9	55.6	484.5	54/3.18	7/3.18	9.54	28.62	1185	436	1621	131.9	0.0674

Koade	Strontearje		Seksje-gebiet			ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
Koade	Al	Stiel	Al	Stiel	Folslein	ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
	Nee. × mm	Nee. × mm	mm ^ 2	mm ^ 2	mm ^ 2	MM	Kg / KM	Kn	Ω / km	IN
Mol	6/1.50	1/1.50	10.6	1.77	12.4	4.5	42.8	4.14	2.7027	66
Iikhoarn	6/2.11	1/2.11	21	3.5	24.5	6.33	84.7	7.87	1.3659	101
Fokse	6/2.79	1/2.79	36.7	6.11	42.8	8.37	148.1	13.21	0.7812	142
Meist	6/3.66	1/3.66	63.1	10.5	73.6	10.98	254.9	21.67	0.454	199
Stjonkdier	12/2.59	7/2.59	63.2	36.9	100.1	12.95	463	52.79	0.4568	206
Bever	6/3.99	1/3.99	75	12.5	87.5	11.97	302.9	25.76	0.382	221
Racoon	6/4.09	1/4.09	78.8	13.1	91.9	12.27	318.3	27.06	0.3635	228
Otter	6/4.22	1/4.22	83.9	14	97.9	12.66	338.8	28.81	0.3415	237
Kat	6/4.50	1/4.50	95.4	15.9	111.3	13.5	385.3	32.76	0.3003	256
Hazze	6/4.72	1/4.72	105	17.5	122.5	14.16	423.8	36.04	0.273	271
Coyote	26/2.54	7/1.91	131.7	20.1	151.8	15.89	520.7	45.86	0.2192	311
Cougar	18/3.05	1/3.05	131.5	7.31	138.8	15.25	418.8	29.74	0.2188	308
Tiger	30/2.36	7/2.36	131.2	30.6	161.8	16.52	602.2	57.87	0.2202	313
Liuw	30/3.18	7/3.18	238.3	55.6	293.9	22.26	1093.4	100.47	0.1213	450
Bear	30/3.35	7/3.35	264.4	61.7	326.1	23.45	1213.4	111.5	0.1093	480
Geit	30/3.71	7/3.71	324.3	75.7	400	25.97	1488.2	135.13	0.0891	543
Skiep	30/3.99	7/3.99	375.1	87.5	462.6	27.93	1721.3	156.3	0.0771	592
Antilope	54/2.97	7/2.97	374.1	48.5	422.6	26.73	1413.8	118.88	0.0773	586
Bison	54/3.00	7/3.00	381.7	49.5	431.2	27	1442.5	121.3	0.0758	593
Hart	30/4.27	7/4.27	429.6	100.2	529.8	29.89	1971.4	179	0.0673	643
Elk	30/4.50	7/4.50	477.1	111.3	588.4	31.5	2189.5	198.8	0.0606	684
Kamiel	54/3.35	7/3.35	476	61.7	537.7	30.15	1798.8	146.4	0.0608	677
Eland	54/3.53	7/3.53	528.5	68.5	597	31.77	1997.3	159.92	0.0547	720

Koade	Nominaal gebiet			Strontearje		ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
Koade	Al	Stiel	Folslein	Al	Stiel	ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
	mm ^ 2	mm ^ 2	mm ^ 2	Nee. × mm	Nee. × mm	MM	Kg / KM	Kn	Ω / km	IN
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934	85
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478	112
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174	150
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555	198
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869	263
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304	299
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.231	302
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.18	347
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805	351
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.144	398
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444	402
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154	458
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155	461
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917	526
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917	530
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722	607
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723	610
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642	651
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643	655
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578	693
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578	697
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516	741
560*	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516	745
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459	794
630*	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459	798
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407	851
710*	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407	856
800*	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361	910
800*	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362	912
800*	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362	916
900*	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321	972
900*	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322	974
1000*	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289	1031
1120*	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258	1096
1120*	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258	1100
1250*	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232	1165
1250*	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231	1163

Koade	Strontearje		Strontearje			ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
Koade	Al	Stiel	Al	Stiel	Folslein	ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
	Nee. × mm	Nee. × mm	mm ^ 2	mm ^ 2	mm ^ 2	MM	Kg / KM	Kn	Ω / km	IN
Turkije	13.3	2.22	6/1.68	1/1.68	5.04	15.52	53.6	4.98	2.1499	76
Swan	21.18	3.53	6/2.12	1/2.12	6.36	24.71	85.3	7.83	1.3501	101
Swanate	21.12	5.35	7/1.96	1/2.61	6.53	26.47	99.6	9.79	1.3539	102
Sparrow	33.59	5.6	6/2.67	1/2.67	8.01	39.19	135.7	11.92	0.8512	135
Sparate	33.54	8.55	7/2.47	1/3.30	8.24	42.09	158.7	15.08	0.8525	135
Robin	42.41	7.07	6/3.00	1/3.00	9	49.48	171.1	14.86	0.6742	156
Raaf	53.52	8.92	6/3.37	1/3.37	10.11	62.44	216.1	18.33	0.5343	180
Quail	67.33	11.22	6/3.78	1/3.78	11.34	78.55	272	22.46	0.4247	207
Dowe	85.12	14.19	6/4.25	1/4.25	12.75	99.31	343	28.02	0.3359	239
Pinguin	107.22	17.87	6/4.77	1/4.77	14.31	125.09	432.7	35.36	0.2667	275
Waxwing	134.98	7.5	18/3.09	1/3.09	15.45	142.48	430.2	29.8	0.2129	313
PATRUGE	134.87	21.99	26/2.57	7/2.00	16.28	156.86	545.9	47.15	0.2141	316
Strúsfûgel	152.19	24.71	26/2.73	7/2.12	17.28	176.9	613.4	53.38	0.1897	341
Merlin	170.22	9.46	18/3.47	1/3.47	17.35	179.68	542.8	37.36	0.1688	361
Linnet	170.55	27.83	26/2.89	7/2.25	18.31	198.38	687.5	59.16	0.1693	365
Oriole	170.5	39.78	30/2.69	7/2.69	18.83	210.28	783.3	72.06	0.1698	367
ChickaDee	200.93	11.16	18/3.77	1/3.77	18.85	212.09	641.3	43.15	0.143	400
Brant	201.56	26.13	24/3.27	7/2.18	19.62	227.69	761	61.83	0.1433	403
Ibis	201.34	32.73	26/3.14	7/2.44	19.88	234.07	812.4	68.05	0.1434	404
Lark	200.9	46.88	30/2.92	7/2.92	20.44	247.78	925.2	84.07	0.1441	406
Pelikaan	242.31	13.46	18/4.14	1/4.14	20.7	255.77	769.7	51.15	0.1186	448
FLicker	241.58	31.4	24/3.58	7/2.39	21.49	272.98	913.5	72.06	0.1195	450
Hauk	241.65	39.19	26/3.44	7/2.67	21.77	280.84	975.1	81.84	0.1195	451
Hin	241.27	56.3	30/3.20	7/3.20	22.4	297.57	1110.6	98.3	0.12	453
Osprey	282.47	15.69	18/4.47	1/4.47	22.35	298.16	897.7	59.6	0.1017	492
Parakeet	282.31	36.6	24/3.87	7/2.58	23.22	318.91	1065.6	83.18	0.1023	495
Do	282.59	45.92	26/3.72	7/2.89	23.55	328.51	1138.6	94.3	0.1022	497
Earn	282.07	65.82	30/3.46	7/3.46	24.22	347.89	1295.6	114.76	0.1026	499
Pau	306.13	39.78	24/4.03	7/2.69	24.19	345.91	1158.9	90.74	0.0943	520
Squab	305.83	49.81	26/3.87	7/3.01	24.51	355.64	1237	101.41	0.0944	521
Hout eend	307.06	71.65	30/3.61	7/3.61	25.27	378.71	1408.4	121.43	0.0943	525
Teal *	307.06	69.62	30/3.61	19/2.16	25.24	376.68	1396.6	124.54	0.0943	525
Kingbird	323.01	17.95	18/4.78	1/4.78	23.9	340.96	1026.6	68.05	0.089	533
Swift	323.02	8.97	36/3.38	1 /3.38	23.66	331.99	956.5	60.05	0.089	532
Roek	323.07	41.88	24/4.14	7/2.76	24.84	364.95	1217.5	95.19	0.0894	537
Grosbeak	321.84	52.49	26/3.97	7/3.09	25.15	374.33	1300.8	104.97	0.0897	537
Scoter	322.56	75.26	30/3.70	7/3.70	25.9	397.82	1480.7	127.66	0.0897	541
Egret *	322.56	73.54	30/3.70	19/2.22	25.9	396.1	1469	130.77	0.0897	541
Flamingo	337.27	43.72	24/4.23	7/2.82	25.38	380.99	1276.6	99.64	0.0856	551
Gannet	338.26	54.9	26/4.07	7/3.16	25.76	393.16	1363.3	110.31	0.0854	553
Stilt	363.27	46.88	24/4.39	7/2.92	26.32	410.15	1370.4	107.2	0.0795	576
Starling	361.93	59.15	26/4.21	7/3.28	26.68	421.08	1463.7	118.32	0.0798	577
Redwing *	362.06	82.41	30/3.92	19/2.35	27.43	444.47	1650.6	143.23	0.0799	580
CoOo	401.86	11.16	36/3.77	1/3.77	26.39	413.02	1195.8	73.39	0.0715	607
Tern	403.77	27.83	45/3.38	7/2.25	27.03	431.6	1331.8	94.3	0.0715	610
Kondor	402.33	52.15	54/3.08	7/3.08	27.72	454.48	1520.7	118.32	0.0718	612
Koekoo	402.33	52.15	24/4.62	7/3.08	27.72	454.48	1522.2	117.43	0.0718	612
Drake	402.56	65.44	26/4.44	7/3.45	28.11	468	1626.4	131.66	0.0717	615
Mallard *	403.84	91.78	26/4.44	7/3.45	28.96	495.62	1836	159.24	0.0717	619
Ruddy	455.5	31.67	45/3.59	7/2.40	28.74	487.17	1507.3	104.53	0.0634	656
Kanary	456.28	59.15	54/3.28	7/3.28	29.52	515.43	1723.1	134.33	0.0633	660
Catbird	484.61	13.46	36/4.14	1/4.14	28.98	498.07	1434.4	86.74	0.0593	679
Leuning	483.84	33.54	45/3.70	7/2.47	29.61	517.38	1598.1	110.76	0.0597	680
Kaardalk	484.53	62.81	54/3.38	7/3.38	30.42	547.34	1825.9	142.34	0.0596	685
Kaardalk	484.53	62.81	54/3.38	7/3.38	30.42	547.34	1825.9	142.34	0.0596	685
Tanager	522.79	14.52	36/4.30	1/4.30	30.1	537.31	1553.5	93.85	0.055	710
OROTLAN	523.87	36.31	45/3.85	7/2.57	30.81	560.18	1730.5	118.32	0.0551	713
Curlew	522.51	67.73	54/3.51	7/3.51	31.59	590.24	1977.6	153.9	0.0553	716
Bluejay	565.49	38.9	45/4.00	7/2.66	31.98	604.39	1866	127.66	0.0511	745
Finch *	565.03	71.57	54/3.65	19/2.19	32.85	636.6	2127.8	164.58	0.0514	748
Bunting	605.76	41.88	45/4.14	7/2.76	33.12	647.64	1996.9	136.55	0.0477	776
Grackle *	602.79	76.89	54/3.77	19/2.27	33.97	679.68	2278.1	176.59	0.0481	777
Skylark	646.02	17.95	36/4.78	1/4.78	33.46	663.97	1913.6	115.65	0.0445	804
Bittern	644.4	44.66	45/4.27	7/2.85	34.17	689.06	2130.8	145.89	0.0448	805
Fazant *	645.08	81.71	54/3.90	19/2.34	35.1	726.79	2431.4	183.26	0.045	808
Upper	684.24	47.2	45/4.40	7/2.93	35.19	731.44	2263.2	154.79	0.0422	834
Martin *	685.39	86.67	54/4.02	19/2.41	36.17	772.06	2581.7	194.82	0.0423	838
Bobolink	725.27	50.14	45/4.53	7/3.02	36.24	775.41	2397.2	164.13	0.0398	862
Plover *	726.92	91.78	54/4.14	19/2.48	37.24	818.7	2734.9	206.39	0.0399	866
Nuthatch	764.2	52.83	45/4.65	7/3.10	37.2	817.03	2529.6	171.25	0.0378	888
Papegaai *	766.06	97.03	54/4.25	19/2.55	38.25	863.09	2883.7	217.51	0.0379	892
Lapwing	807.53	55.6	45/4.78	7/3.18	38.22	863.13	2663.5	180.14	0.0358	916
Falcon *	806.23	102.43	54/4.36	19/2.62	39.26	908.66	3038.5	229.52	0.036	919
Chukar *	903.18	73.54	84/3.70	19/2.22	40.7	976.72	3083.1	217.51	0.0321	976
Bluebird *	1092.84	88.84	84/4.07	19/2.44	44.76	1181.68	3731.9	256.65	0.0266	1083
Kiwi *	1099.76	47.52	72/4.41	7/2.94	44.1	1147.28	3423.9	215.28	0.0264	1083
Thrasher *	1171.42	63.94	76/4.43	19/2.07	45.79	1235.36	3754.2	243.75	0.0248	1122
Grouse **	40.54	14.12	8/2.54	1/4.24	9.32	54.66	221.4	21.75	0.7089	153
PETREL **	51.61	30.1	12/2.34	7/2.34	11.7	81.71	377.7	42.08	0.5595	181
Minorca **	56.11	32.73	12/2.44	7/2.44	12.2	88.84	411.1	45.81	0.5146	191
Leghorn **	68.2	39.78	12/2.69	7/2.69	13.45	107.98	499.2	55.16	0.4234	215
Guinee**	80.36	46.88	12/2.92	7/2.92	14.6	127.24	589.7	64.94	0.3593	238
Dotterel **	89.41	52.15	12/3.08	7/3.08	15.4	141.56	656.1	70.28	0.323	254
DORKING **	96.51	56.3	12/3.20	7/3.20	16	152.81	707.8	75.62	0.2992	267
Cochin **	107.04	62.44	12/3.37	7/3.37	16.85	169.48	783.9	84.07	0.2698	284
Brahma * & **	102.79	91.78	12/3.37	7/3.37	18.12	194.57	1003.8	114.76	0.2809	283

Nominaal sollatysk gebiet		Seksje-gebiet			Strontearje		ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
Al	Stiel	Al	Stiel	Folslein	Al	Stiel	ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O	Aktuele rating *
mm ^ 2	mm ^ 2	mm ^ 2	mm ^ 2	mm ^ 2	Nee. × mm	Nee. × mm	MM	Kg / KM	Kn	Ω / km	IN
16	2.5	15.27	2.54	17.8	6/1.80	1/1.80	5.4	62	5.81	1.8793	83
25	4	23.86	3.98	27.8	6/2.25	1/2.25	6.8	97	9.02	1.2028	109
35	6	34.35	5.73	40.1	6/2.70	1/2.70	8.1	140	12.7	0.8353	136
44	32	43.98	31.67	75.7	14/2.00	7/2.40	11.2	373	45.46	0.6573	166
50	8	48.25	8.04	56.3	6/3.20	1/3.20	9.6	196	17.18	0.5946	168
50	30	51.17	29.85	81	12/2.33	7/2.33	11.7	378	44.28	0.5644	181
70	12	69.89	11.4	81.3	26/1.85	7/1.44	11.7	284	26.31	0.413	211
95	15	94.39	15.33	109.7	26/2.15	7/1.67	13.6	383	35.17	0.3058	254
95	55	96.51	56.3	152.8	12/3.20	7/3.20	16	714	80.2	0.2992	267
105*	75	105.67	75.55	181.2	14/3.10	19/2.25	17.5	899	106.69	0.2736	284
120	20	121.57	19.85	141.4	26/2.44	7/1.90	15.5	494	44.94	0.2374	297
120	70	122.15	71.25	193.4	12/3.60	7/3.60	18	904	98.16	0.2364	308
125	30	127.92	29.85	157.8	30/2.33	7/2.33	16.3	590	57.86	0.2259	308
150	25	148.86	24.25	173.1	26/2.70	7/2.10	17.1	604	54.37	0.1939	336
170	40	171.77	40.08	211.9	30/2.70	7/2.70	18.9	794	77.01	0.1682	369
185	30	183.78	29.85	213.6	26/3.00	7/2.33	19	744	66.28	0.1571	382
210	35	209.1	34.09	243.2	26/3.20	7/2.49	20.3	848	74.94	0.138	414
210	50	212.06	49.48	261.5	30/3.00	7/3.00	21	979	92.25	0.1363	420
230	30	230.91	29.85	260.8	24/3.50	7/2.33	21	874	73.09	0.1249	438
240	40	243.05	39.49	282.5	26/3.45	7/2.68	21.8	985	86.46	0.1188	453
265	35	263.66	34.09	297.8	24/3.74	7/2.49	22.4	998	82.94	0.1094	475
300	50	304.26	49.48	353.7	26/3.86	7/3.00	24.5	1233	105.09	0.0949	520
305	40	304.62	39.49	344.1	54/2.68	7/2.68	24.1	1155	99.3	0.0949	518
340	30	339.29	29.85	369.1	48/3.00	7/2.33	25	1174	92.56	0.0851	551
380	50	381.7	49.48	431.2	54/3.00	7/3.00	27	1448	120.91	0.0757	593
385	35	386.04	34.09	420.1	48/3.20	7/2.49	26.7	1336	104.31	0.0748	595
435	55	434.29	56.3	490.6	54/3.20	7/3.20	28.8	1647	136.27	0.0666	641
450	40	448.71	39.49	488.2	48/3.45	7/2.68	28.7	1553	120.19	0.0644	651
490	65	490.28	63.55	553.8	54/3.40	7/3.40	30.6	1860	152.85	0.059	689
550	70	549.65	71.25	620.9	54/3.60	7/3.60	32.4	2085	167.42	0.0526	737
560	50	561.7	49.48	611.2	48/3.86	7/3.00	32.2	1943	146.28	0.0514	744
680*	85	678.58	85.95	764.5	54/4.00	19/2.40	36	2564	209.99	0.0426	834

Nominaal sollatysk gebiet	Seksje-gebiet			Strontearje		ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O
Nominaal sollatysk gebiet	Al	Stiel	Folslein	Al	Stiel	ALLE DIAMETER	Gewicht	Breakign lading	Elektroanyske ferset @ 20O
mm ^ 2	mm ^ 2	mm ^ 2	mm ^ 2	Nee. × mm	Nee. × mm	MM	Kg / KM	Kn	Ω / km
25	24.9	4.2	29.1	6/2.30	1/2.30	6.9	101	8.89	1.15
32	31.9	5.3	37.2	6/2.60	1/2.60	7.8	129	11.17	0.899
58	57.7	9.6	67.3	6/3.50	1/3.50	10.5	233	19.40	0.497
95	95.4	15.9	111.3	6/4.50	1/4.50	13.5	385	31.16	0.301
120	124.7	29.1	153.8	30/2.3	7/2.3	16.1	574	54.29	0.233
160	159.3	37.2	196.5	30/2.6	7/2.6	18.2	733	68.40	0.182
200	198.2	46.2	244.4	30/2.9	7/2.9	20.3	912	84.67	0.147
240	241.2	59.3	300.5	30/3.2	7/3.2	22.4	1110	100.06	0.120
330	326.8	52.8	379.6	26/4.0	7/3.1	25.3	1320	107.31	0.0888
410	413.4	67.3	480.7	26/4.5	7/3.5	28.5	1673	136.32	0.0702
520	519.5	67.3	586.8	54/3.5	7/3.5	31.2	1969	152.88	0.0559
610	612.4	79.4	691.8	54/3.8	7/3.8	34.2	2320	179.83	0.0474
810	814.5	56.3	870.8	45/3.8	7/3.2	38.4	2700	181.10	0.0356

Koade namme	Bouw, NO. / Wire DIAMETER		Berekkene lykweardige aluminiumgebiet	Krús - SIJDER	Sawat ALLE DIAMETER	Sawat gewicht	Berekkene minimale brekkenbelesting	Berekkene DC Ferset om 20 ° C
	Aluminium	Stiel	Berekkene lykweardige aluminiumgebiet	Krús - SIJDER	Sawat ALLE DIAMETER	Sawat gewicht	Berekkene minimale brekkenbelesting	Berekkene DC Ferset om 20 ° C
	NEE. / mm	NEE. / mm	mm2	mm2	MM	Kg / KM	kn	Ohm / km
Mangel	6/2.50	1/2.50	29.0	34.36	7.50	119	10.5	0.975
Abrikoas	6/2.75	1/2.75	35.1	41.58	8.30	144	12.6	0.805
Appel	6/3.00	1/3.00	41.8	49.48	9.00	171	14.9	0.677
Banaan	6/3.75	1/3.75	65.2	77.31	11.3	268	22.7	0.433
Kers	6/4.75	7/1.60	105	120.4	14.3	402	33.4	0.271
Drúf	30/2.50	7/2.50	144	181.6	17.5	677	63.5	0.196
Sitroen	30/3.00	7/3.00	207	261.5	21.0	973	90.4	0.136
Lychee	30/3.25	7/3.25	243	306.9	22.8	1,140	105	0.116
Lime	30/3.50	7/3.50	282	356.0	24.5	1,320	122	0.100
Mango	54/3.00	7/3.00	373	431.2	27.0	1,440	119	0.0758
Oranje	54/3.25	7/3.25	438	506.0	29.3	1,690	137	0.0646
Oliif	54/3.50	7/3.50	508	586.9	31.5	1,960	159	0.0557
PADPAW	54/3.75	19/2.25	583	672.0	33.8	2,240	178	0.0485
Pjisk	54/4.75	19/2.85	936	1085	42.8	3,660	292	0.0303
Standert High - Sterkte-gedrach
Quince	3/1.75	4/1.75	8.74	16.84	5.3	95	12.7	3.25
Rezyn	3/2.50	4/2.50	17.8	34.36	7.5	195	24.4	1.59
Sultana	4/3.00	3/3.00	31.5	49.48	9.0	243	28.3	0.897
Wâlnút	4/3.75	3/3.75	49.2	77.31	11.3	380	43.9	0.573

Oare besibbe produkten

Werom nei list
