Typus CCLX 1.1 ad 11Kv Mining funem, Mining Trailing & Rolling Cable & Cicero Cable

Overview

Cubits

Constructio

Parameter

Relinque tuum videre

Overview

His armis cables sunt maxime usus ut pascere funem in potentia copia, ubi mechanica tutela et vires non requiritur, et quoque potest esse pastorem ad machinationem et i.e. transportable Mining substatione (harena).

Signa:

Ut / NZS MDCCCII: MMIII
Sicut / NZS MCXXV
Ut / NZS (IX) DCCCVIII
Sicut / NZS 5000.1

Cubits

Humilis voltage

Medium voltage

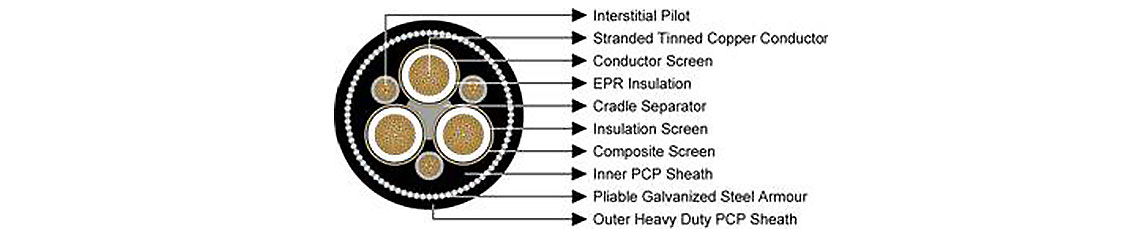

constructio

III x Conductors:

Flexibilia arietes annealed aeris conductor.

Conductor screen:

1.1 / 1.1kv - Polyester obice tape, 3.3 / 3.3kv andabove - Polyester obice tape et extruditur semiconductive tape.

Valerium:

EPR.

Stuulationem screen:

Semiconductive tape.

Compositum screen (Terra Conductor):

Tinned annealed aeris braiding interwove cum polyester bis.

Cunabula separator:

Semiconductive PCP.

III × gubernator:

EPR operuit flexibilia Stranded tinnitus aeris conductor.

Interiore vagina:

PCP vagina.

Flini:

Galvanized humilis carbonis (mitis) ferro firma.

Turbo externa:

Gravibus officium PCP vagina.

parameter

Typus 260,1

Typus 260,3

Typus 260,6

Typus 260,11

Nominal Conductor Area	Strand Location	SINTULATIO	Core screen		Conductor Gubernator		Flumina armis magnitudine	Crassitudine vagina		Nominal altiore diameter	Nominal pondus
Nominal Conductor Area	Strand Location	SINTULATIO	Strand Location	Regio Screen	Strand Location	Tegumentum crassitudine	Flumina armis magnitudine	Interius	Exterior	Nominal altiore diameter	Nominal pondus
Mm²	Non / mm	Mm	Non / mm	Mm²	Non / mm	Mm	Non / mm	Mm	Mm	Mm	Kg / 100m
Typus 260,1
6	84/0.30	1.5	7/0.25	7.2	18/0.30	1.0	7/0.45	2.0	3.8	36.9	230
10	77/0.40	1.5	7/0.25	8.6	27/0.30	1.0	7/0.45	2.0	3.8	39.5	265
16	126/0.40	1.6	7/0.25	9.6	42/0.30	1.0	7/0.90	2.5	4.0	46.5	410
25	209/0.40	1.6	7/0.25	11.3	66/0.30	1.2	7/0.90	2.5	4.3	50.4	495
35	285/0.40	1.6	7/0.25	12.4	90/0.30	1.2	7/0.90	2.5	4.6	53.8	576
50	380/0.40	1.7	7/0.25	14.1	120/0.30	1.2	7/0.90	2.5	5.0	58.4	679
70	203/0.67	1.8	7/0.25	16.5	39/0.67	1.2	7/0.90	2.5	5.4	64.6	837
95	259/0.67	2.0	7/0.25	18.2	39/0.67	1.2	7/0.90	3.5	6.0	71.4	1003
120	336/0.67	2.1	7/0.25	20.3	42/0.67	1.4	7/0.90	3.5	6.4	77.2	1176
150	427/0.67	2.3	7/0.25	22.3	54/0.67	1.4	7/0.90	3.5	6.9	83.0	1372
185	518/0.67	2.5	7/0.30	30.2	63/0.67	1.4	7/0.90	3.5	7.4	90.0	1610
240	672/0.67	2.8	7/0.30	33.6	77/0.67	1.6	7/1.25	4.5	8.2	103.0	2150
300	854/0.67	3.0	7/0.40	50.1	98/0.67	1.6	7/1.25	4.5	8.8	112.1	2590

Nominal Conductor Area	Strand Location	SINTULATIO	Core screen		Conductor Gubernator		Flumina armis magnitudine	Crassitudine vagina		Nominal altiore diameter	Nominal pondus
Nominal Conductor Area	Strand Location	SINTULATIO	Strand Location	Regio Screen	Strand Location	Tegumentum crassitudine	Flumina armis magnitudine	Interius	Exterior	Nominal altiore diameter	Nominal pondus
Mm²	Non / mm	Mm	Non / mm	Mm²	Non / mm	Mm	Non / mm	Mm	Mm	Mm	Kg / 100m
Typus 260,3
16	126/0.40	3.0	7/0.25	13.1	42/0.30	1.4	7/0.90	2.5	5.3	56.9	566
25	209/0.40	3.0	7/0.25	14.8	66/0.30	1.4	7/0.90	2.5	5.6	60.8	661
35	285/0.40	3.0	7/0.25	15.8	90/0.30	1.4	7/0.90	3.5	5.9	66.3	779
50	380/0.40	3.0	7/0.25	17.2	120/0.30	1.4	7/0.90	3.5	6.3	70.4	886
70	203/0.67	3.0	7/0.25	18.6	39/0.67	1.4	7/0.90	3.5	6.6	75.3	1044
95	259/0.67	3.0	7/0.25	20.3	39/0.67	1.4	7/0.90	3.5	7.1	78.9	1156
120	336/0.67	3.0	7/0.30	27.2	42/0.67	1.6	7/0.90	3.5	7.4	84.7	1350
150	427/0.67	3.0	7/0.40	39.6	54/0.67	1.6	7/1.25	4.5	7.8	95.0	1779
185	518/0.67	3.0	7/0.40	42.2	63/0.67	1.8	7/1.25	4.5	8.2	100.4	1990
240	672/0.67	3.0	7/0.40	46.6	77/0.67	1.8	7/1.25	4.5	8.8	107.3	2300
300	854/0.67	3.0	7/0.50	63.2	98/0.67	1.8	7/1.25	4.5	9.4	115.4	2710

Nominal Conductor Area	Strand Location	SINTULATIO	Core screen		Conductor Gubernator		Flumina armis magnitudine	Crassitudine vagina		Nominal altiore diameter	Nominal pondus
Nominal Conductor Area	Strand Location	SINTULATIO	Strand Location	Regio Screen	Strand Location	Tegumentum crassitudine	Flumina armis magnitudine	Interius	Exterior	Nominal altiore diameter	Nominal pondus
Mm²	Non / mm	Mm	Non / mm	Mm²	Non / mm	Mm	Non / mm	Mm	Mm	Mm	Kg / 100m
Typus 260,6
16	126/0.40	5.0	7/0.25	17.2	42/0.30	1.4	7/0.90	3.5	6.4	70.1	796
25	209/0.40	5.0	7/0.25	18.6	66/0.30	1.4	7/0.90	3.5	6.7	74.0	897
35	285/0.40	5.0	7/0.25	18.6	90/0.30	1.6	7/0.90	3.5	7.0	77.4	990
50	380/0.40	5.0	7/0.25	21.3	120/0.30	1.6	7/0.90	3.5	7.3	81.2	1102
70	203/0.67	5.0	7/0.25	23.4	39/0.67	1.6	7/1.25	4.5	7.7	90.7	1456
95	259/0.67	5.0	7/0.30	29.2	39/0.67	1.6	7/1.25	4.5	8.1	94.8	1610
120	336/0.67	5.0	7/0.30	31.7	42/0.67	1.8	7/1.25	4.5	8.5	100.2	1807
150	427/0.67	5.0	7/0.40	45.7	54/0.67	1.8	7/1.25	4.5	8.9	106.2	2080
185	518/0.67	5.0	7/0.40	48.4	63/0.67	1.8	7/1.25	4.5	9.3	111.5	2300
240	672/0.67	5.0	7/0.40	52.8	77/0.67	1.8	7/1.25	4.5	9.9	118.4	2630
300	854/0.67	5.0	7/0.50	71.5	98/0.67	1.8	7/1.25	4.5	10.4	126.3	3060

Nominal Conductor Area	Strand Location	SINTULATIO	Core screen		Conductor Gubernator		Flumina armis magnitudine	Crassitudine vagina		Nominal altiore diameter	Nominal pondus
Nominal Conductor Area	Strand Location	SINTULATIO	Strand Location	Regio Screen	Strand Location	Tegumentum crassitudine	Flumina armis magnitudine	Interius	Exterior	Nominal altiore diameter	Nominal pondus
Mm²	Non / mm	Mm	Non / mm	Mm²	Non / mm	Mm	Non / mm	Mm	Mm	Mm	Kg / 100m
Typus 260,11
25	209/0.40	7.6	7/0.25	23.7	66/0.30	2.0	7/1.25	4.5	8.1	92.7	1380
35	285/0.40	7.6	7/0.30	30.2	90/0.30	2.0	7/1.25	4.5	8.4	96.7	1528
50	380/0.40	7.6	7/0.30	31.7	120/0.30	2.0	7/1.25	4.5	8.7	100.6	1664
70	203/0.67	7.6	7/0.30	34.1	39/0.67	2.0	7/1.25	4.5	9.1	105.8	1867
95	259/0.67	7.6	7/0.40	47.5	39/0.67	2.0	7/1.25	4.5	9.6	110.7	2080
120	336/0.67	7.6	7/0.40	51.0	42/0.67	2.2	7/1.25	4.5	9.9	115.8	2290
150	427/0.67	7.6	7/0.40	53.7	54/0.67	2.2	7/1.25	4.5	10.3	120.5	2510
185	518/0.67	7.6	7/0.40	57.2	63/0.67	2.2	7/1.25	4.5	10.7	125.9	2750
