This 600/1000V Mica+XLPE Insulated, LSZH Sheathed Fire Resistant Power Cables designed for areas where the integrity of the electrical circuit is critical in maintaining power supply. Applications can be found in emergency lightings, control and power circuits, power stations, fire alarm systems, underground tunnels, communications systems, sewage treatment plants, lifts, escalators, and high-rise buildings.
Standards:
Basic design to IEC 60502-1
Characteristics:
Rated voltage: 600/1000 V
Colour Code
Insulation Colour: Natural (other colors upon request)
Sheath Colour: Orange (other colors upon request)
Electrical Prpperties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Physical And Thermal Properties:
Insulation Colour: Natural (other colors upon request)
Sheath Colour: Orange (other colors upon request)
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)
Specifications
Low Voltage
Low Voltage
Cold Resistant -25℃
Cold Resistant -25℃
LSZH
LSZH
Working Temperature 90℃
Working Temperature 90℃

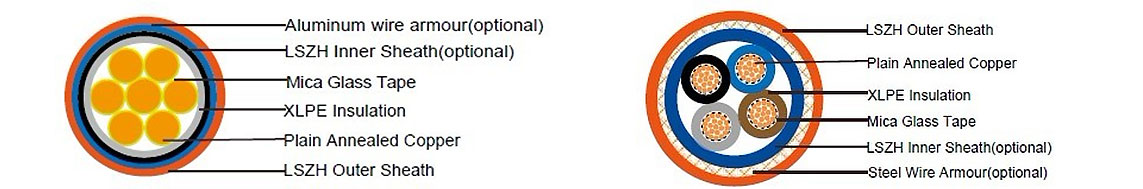

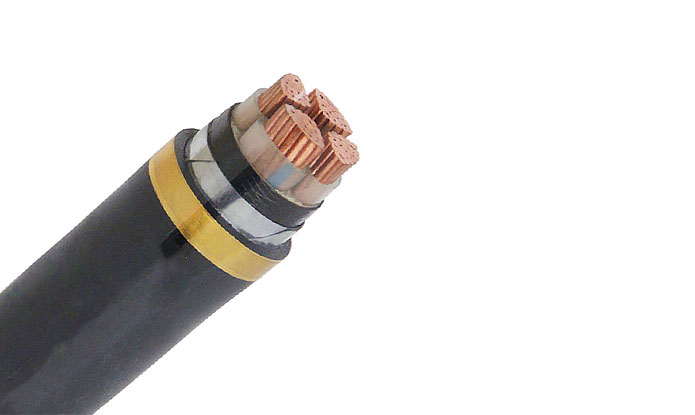

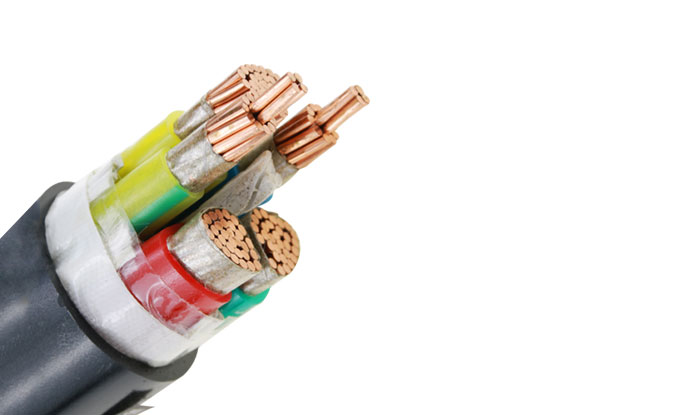

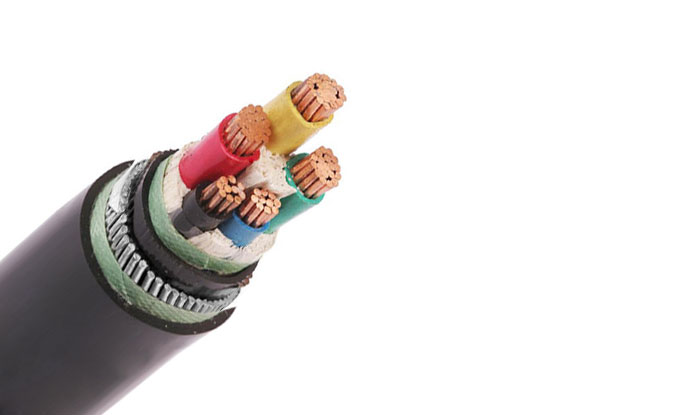

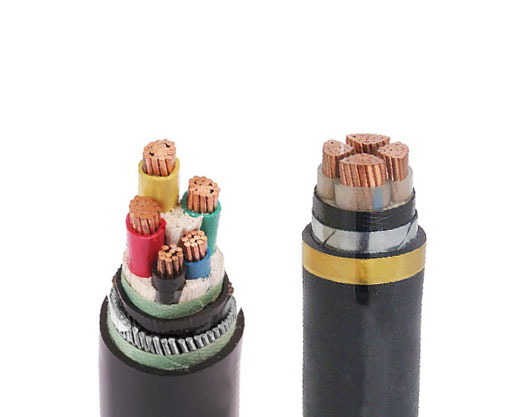

construction
Conductor:
Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation:
Mica glass tape covered by extruded cross-linked XLPE compound
Inner Sheath (optional):
Thermoplastic LSZH compound
Armouring (optional):
Aluminum wire armour
Outer Sheath:
Thermoplastic LSZH compound
parameter
Single Core
2 Cores
3 Cores
4 Cores
single core cable
NOMINAL CROSS SECTION AREA NO./ NOMINAL DIAMETER OF STRANDS DIA. OF CONDUCTOR NOMINAL INSULATION THICKNESS UNARMOURED CABLE ARMOURED CABLE
APPROX. OVERALL DIAMETER APPROX. WEIGH APPROX. OVERALL DIAMETER APPROX. WEIGHT
MM2 NO./MM MM MM MM KG/KM MM KG/KM
1.5 7/0.53 1.59 0.7 6.5 54 - -
2.5 7/0.67 2.01 0.7 6.8 67 - -
4 7/0.85 2.55 0.7 7.5 86 - -
6 7/1.04 3.12 0.7 8.1 110 - -
10 7/1.35 4.05 0.7 9.2 155 - -
16 7/1.70 5.1 0.7 10.2 220 - -
25 7/2.14 6.42 0.9 11.9 325 - -
35 19/1.53 7.65 0.9 13.2 425 - -
50 19/1.78 8.9 1 14.6 600 18.5 780
70 19/2.14 10.7 1.1 16.6 820 20.5 1010
95 19/2.52 12.6 1.1 18.7 1100 23 1320
120 37/2.03 14.21 1.2 20.5 1350 24.5 1610
150 37/2.25 15.75 1.4 22.7 1640 27 2010
185 37.2.52 17.64 1.6 25.5 2040 29.5 2440
240 61/2.25 20.25 1.7 28.5 2650 34.5 3060
300 61/2.52 22.68 1.8 31.5 3260 36.9 3690
400 65/2.85 25.65 2 35.4 4130 41.5 4780
500 61/3.20 28.8 2.2 39 5200 45.5 5970
630 127/2.52 32.76 2.4 43.5 6600 50.5 7530
800 127/2.85 37.05 2.6 48.5 8300 56.8 9680
NO. OF CORE X CROSS SECTION NO./ NOMINAL DIAMETER OF STRANDS DIA. OF CONDUCTOR NOMINAL INSULATION THICKNESS UNARMOURED CABLE ARMOURED CABLE
NOMINAL OVERALL DIAMETER APPROX. WEIGHT NOMINAL OVERALL DIAMETER APPROX. WEIGHT
NO*MM2 NO./MM MM MM MM KG/KM MM KG/KM
2 Cores
1.5 7/0.53 1.59 0.7 12.2 150 15.3 390
2.5 7/0.67 2.01 0.7 12.6 180 16.5 450
4 7/0.85 2.55 0.7 14.7 250 17.6 525
6 7/1.04 3.12 0.7 16.2 290 18.8 620
10 7/1.35 4.05 0.7 17.1 450 21 800
16 7/1.70 5.1 0.7 19.2 550 23 1100
25 7/2.14 6.42 0.9 20 680 27 1480
35 19/1.53 7.65 0.9 22 940 30 2000
50 19/1.78 8.9 1 24 1250 33 2450
70 19/2.14 10.7 1.1 27 1700 37 3200
95 19/2.52 12.6 1.1 31 2300 42 4350
120 37/2.03 14.21 1.2 36 3150 48 6500
NO. OF CORE X CROSS SECTION NO./ NOMINAL DIAMETER OF STRANDS DIA. OF CONDUCTOR NOMINAL INSULATION THICKNESS UNARMOURED CABLE ARMOURED CABLE
NOMINAL OVERALL DIAMETER APPROX. WEIGHT NOMINAL OVERALL DIAMETER APPROX. WEIGHT
NO*MM2 NO./MM MM MM MM KG/KM MM KG/KM
3 Cores
1.5 7/0.53 1.59 0.7 12.3 170 16.5 420
2.5 7/0.67 2.01 0.7 13.8 200 17 500
4 7/0.85 2.55 0.7 15.2 300 18.5 600
6 7/1.04 3.12 0.7 16.8 380 19.8 785
10 7/1.35 4.05 0.7 18 550 22.6 1030
16 1/1.70 5.1 0.7 21 760 25 1370
25 7/2.14 6.42 0.9 22 960 29 1900
35 19/1.53 7.65 0.9 24 1300 32 2300
50 19/1.78 8.9 1 28 1700 35 2900
70 19/2.14 10.7 1.1 31 2400 40 4000
95 19/2.52 12.6 1.1 36 3250 45 5400
120 37/2.03 14.21 1.2 38 4000 49 6450
150 37/2.25 15.75 1.4 42 5000 55 8200
185 37/2.52 17.64 1.6 47 6100 60 9800
240 61/2.25 20.25 1.7 52 8000 68 12300
300 61/2.52 22.68 1.8 59 9850 74 14800
400 61/2.85 25.65 2 63 13000 83 17600
NO. OF CORE X CROSS SECTION NO./ NOMINAL DIAMETER OF STRANDS DIA. OF CONDUCTOR NOMINAL INSULATION THICKNESS UNARMOURED CABLE ARMOURED CABLE
NOMINAL OVERALL DIAMETER APPROX. WEIGHT NOMINAL OVERALL DIAMETER APPROX. WEIGHT
NO*MM2 NO./MM MM MM MM KG/KM MM KG/KM
4 Cores
1.5 7/0.53 1.59 0.7 14.3 210 16 475
2.5 7/0.67 2.01 0.7 15.2 270 17.8 570
4 7/0.85 2.55 0.7 17.2 380 19.8 690
6 7/1.04 3.12 0.7 19 440 21 940
10 7/1.35 4.05 0.7 20.6 670 23.3 1200
16 1/1.70 5.1 0.7 23.6 820 26.5 1400
25 7/2.14 6.42 0.9 26 1320 30.5 2400
35 19/1.53 7.65 0.9 29 1730 34 2800
50 19/1.78 8.9 1 32 2300 38 3500
70 19/2.14 10.7 1.1 38 3180 44 5300
95 19/2.52 12.6 1.1 41.9 4370 48.5 6700
120 37/2.03 14.21 1.2 44 5400 54 8500
150 37/2.25 15.75 1.4 50.8 6500 59 10000
185 37/2.52 17.64 1.6 55 8200 64.5 12200
240 61/2.25 20.25 1.7 60.5 10600 74 15400
300 61/2.52 22.68 1.8 68.5 13200 82 19500
400 61/2.85 25.65 2 76 17000 92 25500
