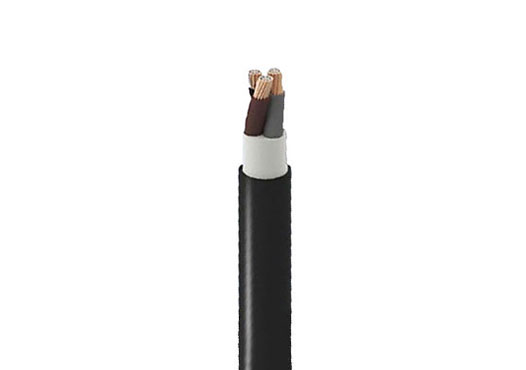

0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cable, Marine & offershore cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

Application

0.6/1 kV IEC60092 STANDARD Offshore & Marine armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free.

Approvals

IEC 60092-350/351/353/359, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034

Technical data

a.Temperature range:
during installation:
fixed installed: -30 °C up to+90 °C
at short circuit of max. 5 s: 250
b.Nominal voltage: 0.6/1 kV
c.Test voltage: 3500V
d.Minimal inner bending radius: 6×OD

Specifications

Low Voltage

Flame Retardant

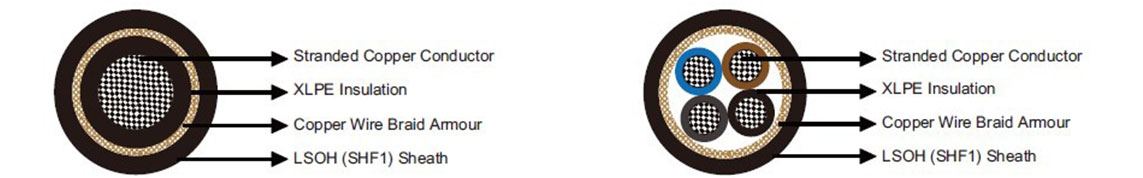

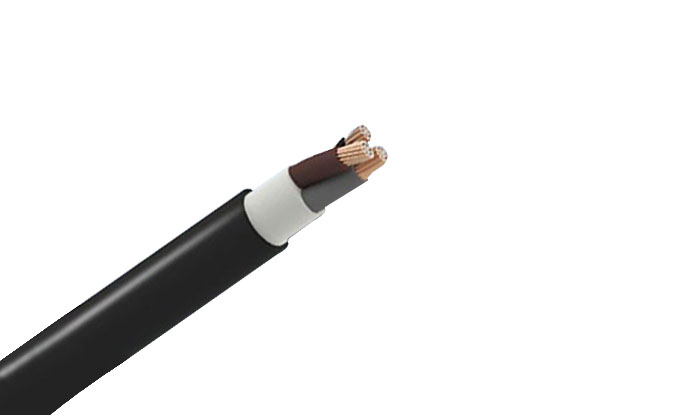

construction

Conductor:

Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.

Insulation:

XLPE. HEPR insulation can be offered upon request.

Armour:

Copper wire braid.

Outer Sheath:

LSOH (SHF1). SHF2 can be offered upon request.

possible insulation colors:

Single core: Black
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers.
With yellow/green (optional)
Two cores + earth (3G): Yellow/green, Blue, Brown.
Three cores + earth (4G): Yellow/green, Brown, Black, Grey.
Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey.

parameter

Single Core

Multi Cores

CONSTRUCTION	NOMINAL INSULATION	NOMINAL SHEATH	NOMINAL OVERALL	NOMINAL WEIGHT
NO. OF CORES×CROSS	NOMINAL INSULATION	NOMINAL SHEATH	NOMINAL OVERALL	NOMINAL WEIGHT
SECTION(MM²)	THICKNESS MM	THICKNESS MM	DIAMETER MM	KG/KM
1×1.5	0.7	1.1	6.3	70
1×2.5	0.7	1.1	6.7	80
1×4	0.9	1.1	7.4	100
1×6	0.9	1.1	8	120
1×10	0.9	1.1	8.8	180
1×16	0.9	1.1	10.2	245
1×25	0.9	1.2	11.7	355
1×35	0.9	1.2	13	455
1×50	1	1.3	15	620
1×70	1.1	1.4	17.2	850
1×95	1.1	1.4	19.1	1115
1×120	1.2	1.5	21.1	1385
1×150	1.4	1.6	23.2	1690
1×185	1.6	1.6	25.5	2065
1×240	1.7	1.7	28.4	2640
1×300	1.8	1.8	31.3	3260

CONSTRUCTION	NOMINAL INSULATION	NOMINAL SHEATH	NOMINAL OVERALL	NOMINAL WEIGHT
NO. OF CORES×CROSS	NOMINAL INSULATION	NOMINAL SHEATH	NOMINAL OVERALL	NOMINAL WEIGHT
SECTION(MM²)	THICKNESS MM	THICKNESS MM	DIAMETER MM	KG/KM
2×1.5	0.7	1.1	9.3	120
2×2.5	0.7	1.1	10.1	150
2×4	0.9	1.2	12.2	195
2×6	0.9	1.2	13.7	275
2×10	0.9	1.3	15.7	385
2×16	0.9	1.4	18.4	595
2×25	0.9	1.5	21.3	820
2×35	0.9	1.5	23.9	1140
2×50	1	1.5	26.7	1500
3×(G)1.5	0.7	1.1	9.8	145
3×(G)2.5	0.7	1.1	10.7	180
3×4	0.9	1.2	12.9	245
3×6	0.9	1.3	14.7	345
3×10	0.9	1.3	16.6	490
3×16	0.9	1.4	19.5	755
3×25	0.9	1.6	22.7	1095
3×35	0.9	1.6	24.9	1340
3×35 (sector shaped)	0.9	1.6	22	1320
3×50	1	1.6	27.1	1750
3×50 (sector shaped)	1	1.6	24.8	1820
3×70 (sector shaped)	1.1	2	29.7	2575
3×95 (sector shaped)	1.1	2.1	33.1	3435
3×120 (sector shaped)	1.2	2.2	36	4070
3×150 (sector shaped)	1.4	2.4	40.9	5435
4×(G)1.5	0.7	1.1	10.5	170
4×(G)2.5	0.7	1.2	11.8	225
4×4	0.9	1.3	14.7	335
4×6	0.9	1.3	16	425
4×10	0.9	1.4	18.3	625
4×16	0.9	1.5	21.5	935
4×25	0.9	1.6	24.4	1345
4×35	0.9	1.7	27.5	1715
4×35 (sector shaped)	0.9	1.7	24.3	1700
4×50	1	1.6	29.9	2400
4×50(sector shaped)	1	1.6	27.3	2300
4×70(sector shaped)	1.1	2.1	32.8	3250
4×95(sector shaped)	1.1	2.2	37.3	4390
5×(G)1.5	0.7	1.2	11.7	205
5×(G)2.5	0.7	1.2	12.8	265
5G4	0.9	1.2	15.2	360
6×1.5	0.7	1.2	12.7	240
7×1.5	0.7	1.2	12.7	260
8×1.5	0.7	1.2	15.5	340
10×1.5	0.7	1.3	16.2	390
12×1.5	0.7	1.4	16.9	440
16×1.5	0.7	1.4	18.6	550
19×1.5	0.7	1.5	19.7	620
24×1.5	0.7	1.6	22.9	800
5×2.5	0.7	1.2	12.9	290
7×2.5	0.7	1.2	14.6	390
12×2.5	0.7	1.4	18.7	610
19×2.5	0.7	1.5	21.8	870
24×2.5	0.7	1.6	25.6	1100
27×2.5	0.7	1.7	26.1	1200
37×2.5	0.7	1.9	29.2	1560
