IEC60092 Standard MariTox Marine Flame Retardant Power & Control Cable, Marine & offershore cable

Application

0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables.
0.6/1 kV IEC60092 STANDARD Offshore & Marine unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.

Approvals

IEC 60092-350/351/353/359, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034

Technical data

a.Temperature range:
during installation:
fixed installed: -30 °C up to+90 °C
at short circuit of max. 5s: 250
b.Nominal voltage: 0.6/1 kV
c.Test voltage: 3500V
d.Minimal inner bending radius: 6×OD (OD>25mm); 4×OD (OD ≤25mm)

Specifications

Low Voltage

Flame Retardant

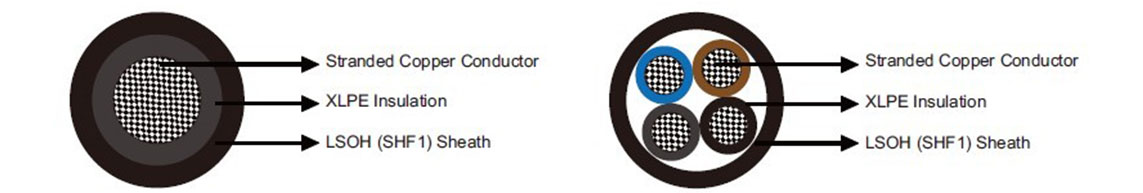

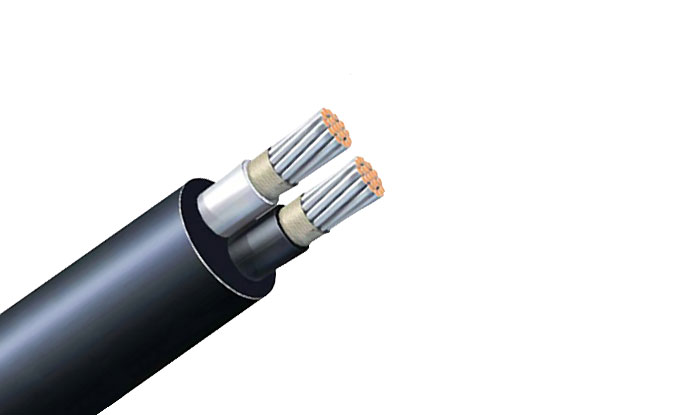

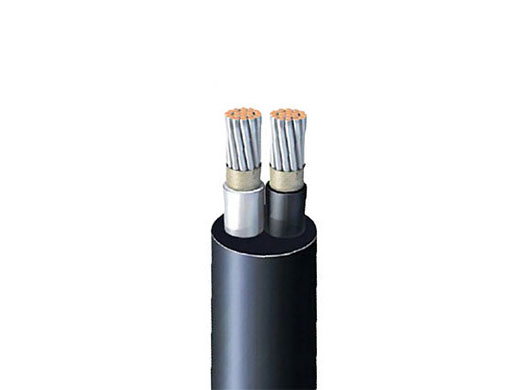

construction

Conductor:

Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.

Insulation:

XLPE. HEPR insulation can be offered upon request.

Outer Sheath:

LSOH (SHF1). SHF2 can be offered upon request.

possible insulation colors:

Single core: Black
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers.
With yellow/green (optional)
Two cores + earth (3G): Yellow/green, Blue, Brown.
Three cores + earth (4G): Yellow/green, Brown, Black, Grey.
Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey.

parameter

Single Core

Multi Cores

CONSTRUCTION	NOMINAL INSULATION	NOMINAL SHEATH THICKNESS MM	NOMINAL OVERALL	NOMINAL WEIGHT KG/KM
NO. OF CORES×CROSS	THICKNESS MM		DIAMETER MM
SECTION(MM²)
1×1.5	0.7	1	5	40
1×2.5	0.7	1	5.4	50
1×4	0.9	1.04	6.4	70
1×6	0.9	1.04	7	90
1×10	0.9	1.04	7.9	130
1×16	0.9	1.04	8.9	190
1×25	0.9	1.1	10.4	295
1×35	0.9	1.1	11.7	380
1×50	1	1.2	13.3	510
1×70	1.1	1.3	15.5	720
1×95	1.1	1.3	17.4	970
1×120	1.2	1.4	19.4	1220
1×150	1.4	1.5	21.5	1505
1×185	1.6	1.5	23.8	1865
1×240	1.7	1.6	26.7	2420
1×300	1.8	1.7	29.6	3015

CONSTRUCTION	NOMINAL INSULATION THICKNESS MM	NOMINAL SHEATH THICKNESS MM	NOMINAL OVERALL DIAMETER MM	NOMINAL WEIGHT KG/KM
NO. OF CORES×CROSS
SECTION(MM²)
2×1.5	0.7	1.1	8.4	80
2×2.5	0.7	1.1	9.2	100
2×4	0.9	1.1	11.1	135
2×6	0.9	1.2	12.4	185
2×10	0.9	1.2	14.1	270
2×16	0.9	1.3	16.4	400
2×25	0.9	1.3	18.8	700
2×35	0.9	1.3	21.4	930
2×50	1	1.3	24.2	1290
3×(G)1.5	0.7	1.1	8.8	100
3×(G)2.5	0.7	1.1	9.8	130
3×(G)4	0.9	1.2	12	190
3×(G)6	0.9	1.2	13.2	250
3×10	0.9	1.3	15.2	380
3×16	0.9	1.3	17.5	560
3×25	0.9	1.5	20.7	875
3×35	0.9	1.6	23.5	1220
3×35 (sector shaped)	0.9	1.5	20.1	1135
3×50	1	1.7	26.7	1780
3×50 (sector shaped)	1	1.7	22.8	1530
3×70 (sector shaped)	1.1	1.8	26.7	2150
3×95 (sector shaped)	1.1	1.9	30.2	2900
3×120 (sector shaped)	1.2	2.1	34	3675
4×(G)1.5	0.7	1.1	9.6	120
4×(G)2.5	0.7	1.1	10.7	165
4×(G)4	0.9	1.2	13.2	240
4×(G)6	0.9	1.2	14.5	320
4×(G)10	0.9	1.3	16.7	490
4×(G)16	0.9	1.4	19.5	740
4×(G)25	0.9	1.5	22.8	1145
4G35	0.9	1.7	26	1515
4G50	1	1.8	29.7	2340
5×(G)1.5	0.7	1.1	10.5	145
5×(G)2.5	0.7	1.2	11.9	205
5G6	0.9	1.3	16.1	400
5G16	0.9	1.5	21.6	920
6×1.5	0.7	1.2	11.6	180
7×1.5	0.7	1.2	11.7	195
8×(G)1.5	0.7	1.2	12.7	225
10×1.5	0.7	1.3	14.8	275
12×1.5	0.7	1.3	15.3	315
16×1.5	0.7	1.4	17.2	410
19×1.5	0.7	1.4	18.1	470
24×1.5	0.7	1.5	21.3	620
5×2.5	0.7	1.2	11.9	210
7×2.5	0.7	1.2	13.2	280
12×2.5	0.7	1.3	17.4	460
19×2.5	0.7	1.4	20.6	690
24×2.5	0.7	1.5	24.3	880
27×2.5	0.7	1.5	24.6	970
37×2.5	0.7	1.6	27.7	1300
