EPDM Insulated and Lead/EPDM Sheathed, Galvanized Steel Strip Armoring, Round Cable for Submersible Oil Pump
EPDM Insulated and Lead/EPDM Sheathed, Galvanized Steel Strip Armoring, Round Cable for Submersible Oil Pump
Get A Quote
Product Inquiry

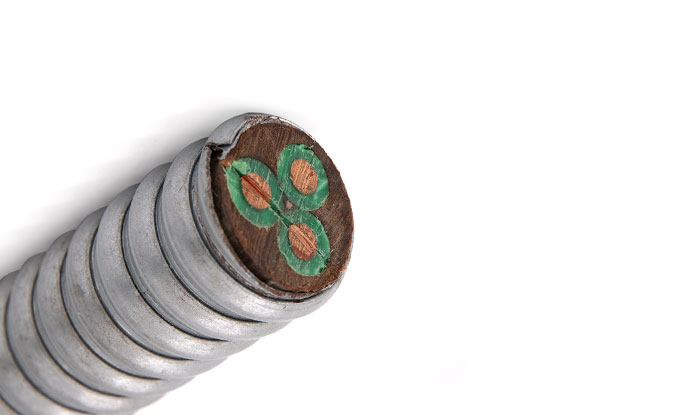

Product Picture
Product name
EPDM Insulated and Lead/EPDM Sheathed, Galvanized Steel Strip Armoring, Round Cable for Submersible Oil Pump
EPDM Insulated and Lead/EPDM Sheathed, Galvanized Steel Strip Armoring, Round Cable for Submersible Oil Pump
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Overview
This product is mainly used to provide power for ESP Cable conductor continuous working temperature is not more than 232℃(450F).
Standards:
PAI RP11S5, PAI RP11S6, IEEE1018
Specifications
Medium Voltage
Medium Voltage
Water Resistance
Water Resistance
Cold Resistant -40℃
Cold Resistant -40℃
Oil Resistance
Oil Resistance
construction

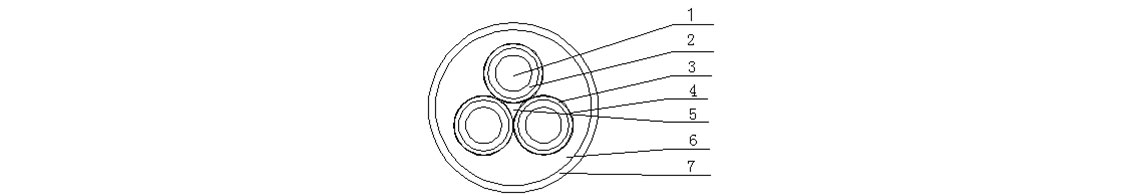

1. Conductor 2. EPDM 3. Lead 4. Nylon fabric 5. Filler 6. EPDM 7. Galvanized steel strip
PARAMETER
3kV
5kV
Type Conductor specification EPDM insulation LEAD sheath EPDM shealth Finished size

mm
calculated weight
kg/km
AWG Area
mm2
Outer diameter mm Thickness
mm
Outer diameter mm Thickness
mm
Outer diameter mm Thickness
mm
Outer diameter mm
6EP3LDEPGR 6 13 4.12 1.7 7.92 0.75 9.12 1.52 23.71 28.61 2.03
4EP3LDEPGR 4 20 5.19 1.7 8.99 0.75 10.19 1.52 26.01 30.92 2.44
2EP3LDEPGR 2 33 6.54 1.7 10.34 0.75 11.54 1.52 28.92 33.82 3.02
1EP3LDEPGR 1 42 7.35 1.7 11.15 0.75 12.35 1.52 30.66 35.57 3.40
Type Conductor specification EPDM insulation LEAD sheath EPDM sheath Finished size

mm
calculated weightkg/km
AWG Area
mm2
Outer diameter mm Thickness
mm
Outer diameter mm Thickness
mm
Outer diameter mm Thickness
mm
Outer diameter
mm
6EP5LDEPGR 6 13 4.12 1.9 7.92 0.75 9.52 1.52 24.57 30.50 2.12
4EP5LDEPGR 4 20 5.19 1.9 8.99 0.75 10.59 1.52 26.87 32.78 2.59
2EP5LDEPGR 2 33 6.54 1.9 10.34 0.75 11.94 1.52 29.78 35.70 3.11
1EP5LDEPGR 1 42 7.35 1.9 11.15 0.75 12.75 1.52 31.53 37.43 3.50
