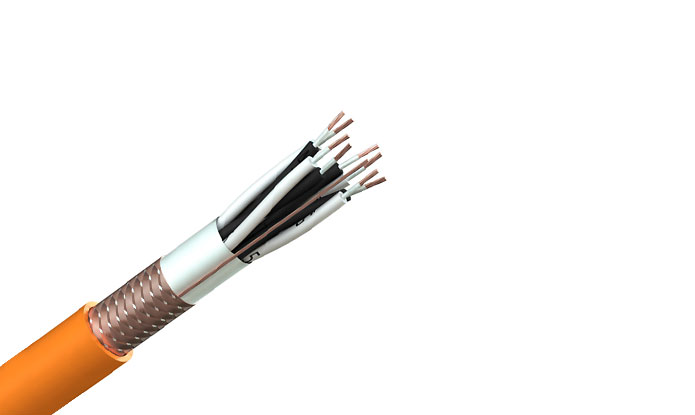

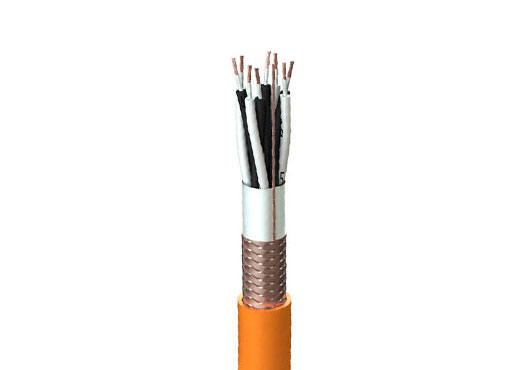

150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple), Marine & offershore cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

Application

150/250V IEC60092 STANDARD Offshore & Marine armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Approvals

IEC 60092-350/351/376/359, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034

Technical data

a.Temperature range:
during installation:
fixed installed: -30 °C up to+90 °C
at short circuit of max. 5 s: 250
b.Nominal voltage: 150/250V
d.Minimal inner bending radius: 6×OD

Specifications

Low Voltage

Working Temperature 90℃

Flame Retardant

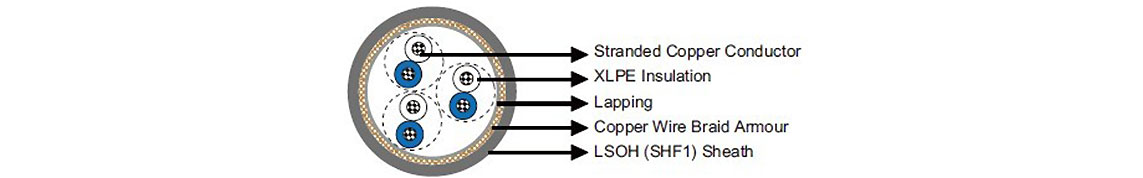

construction

Conductor:

Class 2 stranded copper conductor.

Insulation:

XLPE.

Cabling Element:

Pair/Triple.

Inner Covering:

Lapped polyester tape.

Armour:

Copper wire braid.

Outer Sheath:

LSOH (SHF1). SHF2 can be offered upon request.

possible insulation colors:

Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

parameter

2×0.75 (CORES×CROSSSECTION)

2×1.0 (CORES×CROSSSECTION)

2×1.5 (CORES×CROSSSECTION)

3×0.75 (CORES×CROSSSECTION)

3×1.0 (CORES×CROSSSECTION)

3×1.5 (CORES×CROSSSECTION)

CONSTRUCTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF ELEMENTS×NO. OF CORES IN ELEMENT×CROSSSECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
(MM²)	MM	MM	MM	KG/KM
1×2×0.75	0.5	1.2	8.1	90
2×2×0.75	0.5	1.3	9.3	130
3×2×0.75	0.5	1.4	12.4	200
4×2×0.75	0.5	1.4	13.1	230
5×2×0.75	0.5	1.8	15.2	320
6×2×0.75	0.5	1.8	16.1	350
7×2×0.75	0.5	1.8	16.1	370
8×2×0.75	0.5	1.9	17.2	420
10×2×0.75	0.5	1.9	19.1	500
12×2×0.75	0.5	2	20	560
14×2×0.75	0.5	2	20.6	610
16×2×0.75	0.5	2.1	22.2	690
19×2×0.75	0.5	2.1	23.6	790
20×2×0.75	0.5	2.1	23.6	800
24×2×0.75	0.5	2.2	26.8	980
30×2×0.75	0.5	2.3	29.1	1160
37×2×0.75	0.5	2.4	31.1	1360

CONSTRUCTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF ELEMENTS×NO. OF CORES IN ELEMENT×CROSSSECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
(MM²)	MM	MM	MM	KG/KM
1×2×1.0	0.5	1.3	8.7	110
2×2×1.0	0.5	1.3	9.7	150
3×2×1.0	0.5	1.4	13.2	230
4×2×1.0	0.5	1.8	14.6	310
5×2×1.0	0.5	1.8	16.1	360
6×2×1.0	0.5	1.9	17.3	420
7×2×1.0	0.5	1.9	17.3	440
8×2×1.0	0.5	1.9	18.3	490
10×2×1.0	0.5	2	20.5	590
12×2×1.0	0.5	2	21.3	660
14×2×1.0	0.5	2.1	22.2	730
16×2×1.0	0.5	2.1	23.7	820
19×2×1.0	0.5	2.2	25.4	940
20×2×1.0	0.5	2.2	25.4	960
24×2×1.0	0.5	2.3	28.9	1170
30×2×1.0	0.5	2.4	31.3	1400
37×2×1.0	0.5	2.5	33.5	1640

CONSTRUCTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF ELEMENTS×NO. OF CORES IN ELEMENT×CROSSSECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
(MM²)	MM	MM	MM	KG/KM
1×2×1.5	0.6	1.3	9.7	140
2×2×1.5	0.6	1.3	10.9	190
3×2×1.5	0.6	1.8	15.7	340
4×2×1.5	0.6	1.9	16.8	400
5×2×1.5	0.6	1.9	18.6	480
6×2×1.5	0.6	2	20	550
7×2×1.5	0.6	2	20	590
8×2×1.5	0.6	2	21.2	650
10×2×1.5	0.6	2.1	23.8	800
12×2×1.5	0.6	2.2	24.9	900
14×2×1.5	0.6	2.2	25.8	990
16×2×1.5	0.6	2.3	27.8	1130
19×2×1.5	0.6	2.3	29.6	1290
20×2×1.5	0.6	2.3	29.6	1320
24×2×1.5	0.6	2.5	33.9	1630
30×2×1.5	0.6	2.8	37.3	2040
37×2×1.5	0.6	2.9	39.9	2390

CONSTRUCTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF ELEMENTS×NO. OF CORES IN ELEMENT×CROSSSECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
(MM²)	MM	MM	MM	KG/KM
1×3×0.75	0.5	1.3	8.7	110
2×3×0.75	0.5	1.4	12.6	210
3×3×0.75	0.5	1.4	13.3	240
4×3×0.75	0.5	1.8	15.2	330
5×3×0.75	0.5	1.9	16.8	400
6×3×0.75	0.5	1.9	18.6	470
7×3×0.75	0.5	1.9	18.6	490
8×3×0.75	0.5	2	20	560
10×3×0.75	0.5	2.1	22.5	690
12×3×0.75	0.5	2.1	23.6	770
14×3×0.75	0.5	2.1	24.5	850
16×3×0.75	0.5	2.2	26.1	950
19×3×0.75	0.5	2.3	28.2	1100
20×3×0.75	0.5	2.3	28.6	1140
24×3×0.75	0.5	2.4	31.1	1340
30×3×0.75	0.5	2.5	34.3	1620
32×3×0.75	0.5	2.5	35.4	1720

CONSTRUCTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF ELEMENTS×NO. OF CORES IN ELEMENT×CROSSSECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
(MM²)	MM	MM	MM	KG/KM
1×3×1.0	0.5	1.3	9.1	130
2×3×1.0	0.5	1.4	13.4	240
3×3×1.0	0.5	1.8	14.9	320
4×3×1.0	0.5	1.8	16.1	380
5×3×1.0	0.5	1.9	17.8	460
6×3×1.0	0.5	2	20	560
7×3×1.0	0.5	2	20	590
8×3×1.0	0.5	2	21.3	660
10×3×1.0	0.5	2.1	24	810
12×3×1.0	0.5	2.2	25.4	920
14×3×1.0	0.5	2.2	26.4	1020
16×3×1.0	0.5	2.3	28.1	1150
19×3×1.0	0.5	2.4	30.3	1330
20×3×1.0	0.5	2.4	30.8	1380
24×3×1.0	0.5	2.5	33.5	1620
30×3×1.0	0.5	2.8	37.5	2060
32×3×1.0	0.5	2.9	38.9	2190

CONSTRUCTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF ELEMENTS×NO. OF CORES IN ELEMENT×CROSSSECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
(MM²)	MM	MM	MM	KG/KM
1×3×1.5	0.6	1.3	10.2	160
2×3×1.5	0.6	1.8	16	350
3×3×1.5	0.6	1.9	17.1	430
4×3×1.5	0.6	1.9	18.6	510
5×3×1.5	0.6	2	20.6	620
6×3×1.5	0.6	2.1	23.2	750
7×3×1.5	0.6	2.1	23.2	800
8×3×1.5	0.6	2.2	24.9	900
10×3×1.5	0.6	2.3	28.1	1110
12×3×1.5	0.6	2.3	29.6	1260
14×3×1.5	0.6	2.4	31	1410
16×3×1.5	0.6	2.5	33	1590
19×3×1.5	0.6	2.5	35.4	1830
20×3×1.5	0.6	2.8	36.7	2010
24×3×1.5	0.6	2.9	39.9	2360
30×3×1.5	0.6	3.1	44.2	2880
32×3×1.5	0.6	3.1	45.7	3060
