PVC - Covered Aluminium Conductors, Steel Reinforced Type 16
PVC - Covered Aluminium Conductors, Steel Reinforced Type 16
Get A Quote
Product Inquiry

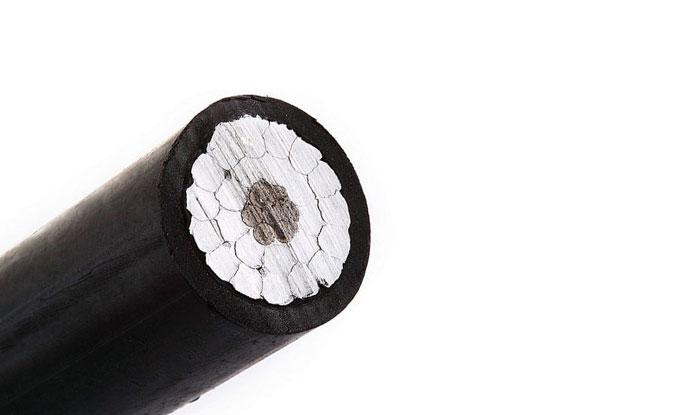

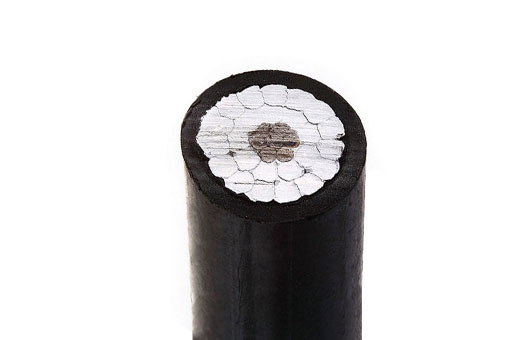

Product Picture
Product name
PVC - Covered Aluminium Conductors, Steel Reinforced Type 16
PVC - Covered Aluminium Conductors, Steel Reinforced Type 16
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
crossings of telecommunication lines and proximities to them.
Standards:
BS 6485: 1999
Technical data:
a.Temperature range:
during installation: +70 °C
fixed installed: +70 °C
b.Nominal voltage: 650V
d.Minimal inner bending radius: 15-30D
d.Chemical Performance: Chemical & Oil resistance
Specifications
Low Voltage
Low Voltage
Working Temperature 70℃
Working Temperature 70℃
Oil Resistance
Oil Resistance

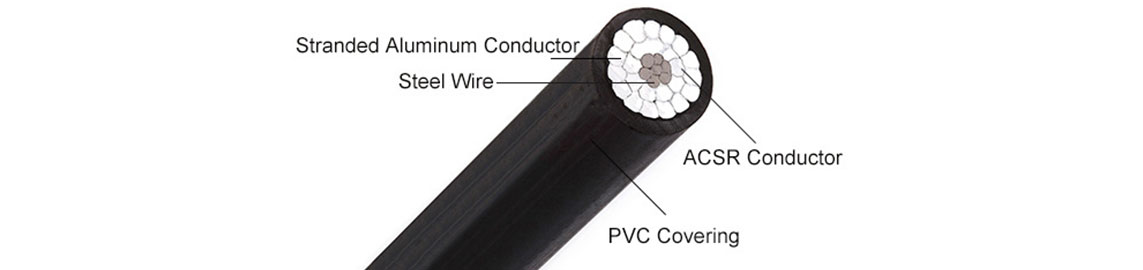

construction
Conductor:
bare aluminium conductor of class 2 (stranded); galvanized steel wire
Insulation:
PVC compound type
Insulation colors:
Green
parameter
Datasheet
Nominal Cross-Section Conductor Structure D.C. Resistance at 20 Breaking Load Approx. Overall Diameter
mm2 No./mm Ω/km kN mm
Aluminum Steel
25 6/2.36 1/2.36 1.093 9.61 10.7
50 6/3.35 1/3.35 0.5426 18.35 14.1
100 6/4.72 7/1.57 0.2733 32.7 18.2
150 30/2.59 7/2.59 0.1828 69.2 22.2
150 18/3.35 1/3.35 0.1815 35.7 20.8
175 30/2.79 7/2.79 0.1576 79.8 23.6
175 18/3.61 1/3.61 0.1563 41.1 22.1
200 3/30 7/3 0.1363 92.25 25
200 18/3.86 1/3.86 0.1367 46.55 23.3
