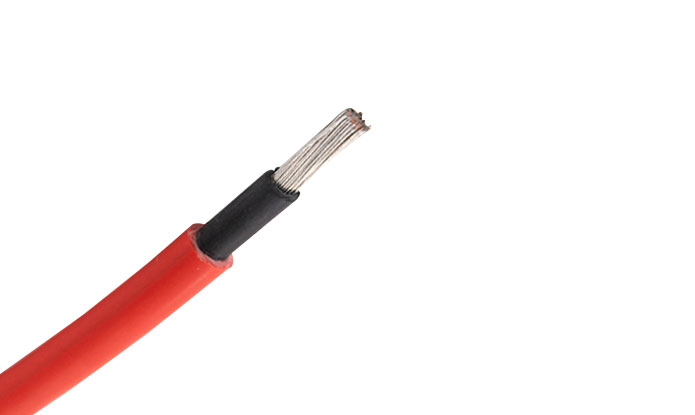

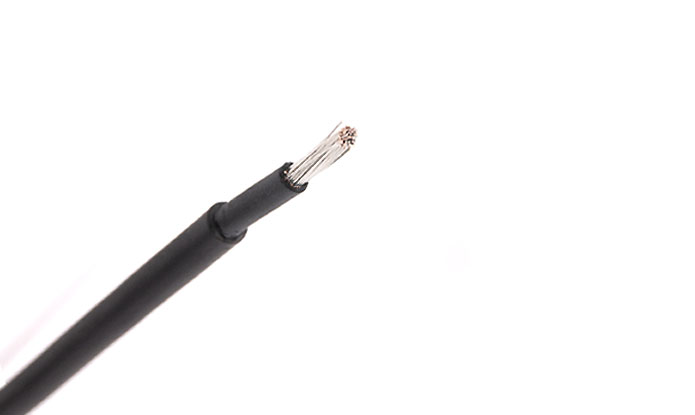

Solar Cable TUV 2PFG 1169, Solar Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Standards:

2PfG 1169/08.2007 (PV1-F), TUV certificate, RHOS.

Description

Electrical Properties
» Rated Voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
» Maximum Permitted DC Voltage: 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)
» Insulation Resistance: 1000 MΩ-km
» Spark Test: 6000 Vac (8400 Vdc)
» Voltage Withstand: 6500 Vac for 5 min
Thermal Properties
» Maximum Voltage: Ambient Temperature: -40℃ ~ +90℃
» Maximum Temperature At Conductor: 120℃ (20000h) according to IEC/EN 60216-1
» Short Circuit Temperature: 200℃/5 sec
» Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
» High Temperature Pressure Test: According to EN 60811-3-1
» Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity
Mechanical Properties
» Minimum Bending Radius: 4×OD (fixed), 5×OD (flexing)
» Dynamic Penetration: According to 2 PfG 1169/08.2007 Annex F
» Notch Propagation: According to 2 PfG 1169/08.2007 Annex G
» Tensile Strength And Elongation Of Insulation And Jacket: According to EN 60811
» Anticipated Period Of Use: 25 years
Chemical Properties
» Ozone Resistance: According to EN 50396 part 8.1.3 Method B
» Weathering- UV Resistance: According to HD 605/A1
» Ammoniac resistant
» Very good resistance to oils and chemicals
» High wear and robust, abrasion resistant
» Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Fire Performance
» Flame retardant according to EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, DIN EN 60332-1-2
» Low smoke emission according to IEC 61034, EN 50268
» Halogen free according to EN 50267-2-1, IEC 60754-1
» Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Specifications

ROHS

Low Voltage

UV Resistance

Working Temperature 90℃

Cold Resistant -40℃

Oil Resistance

Flame Retardant

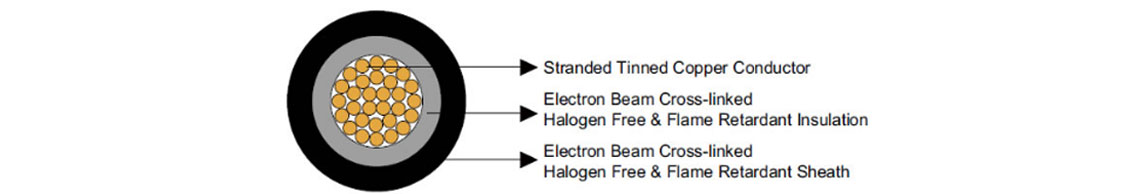

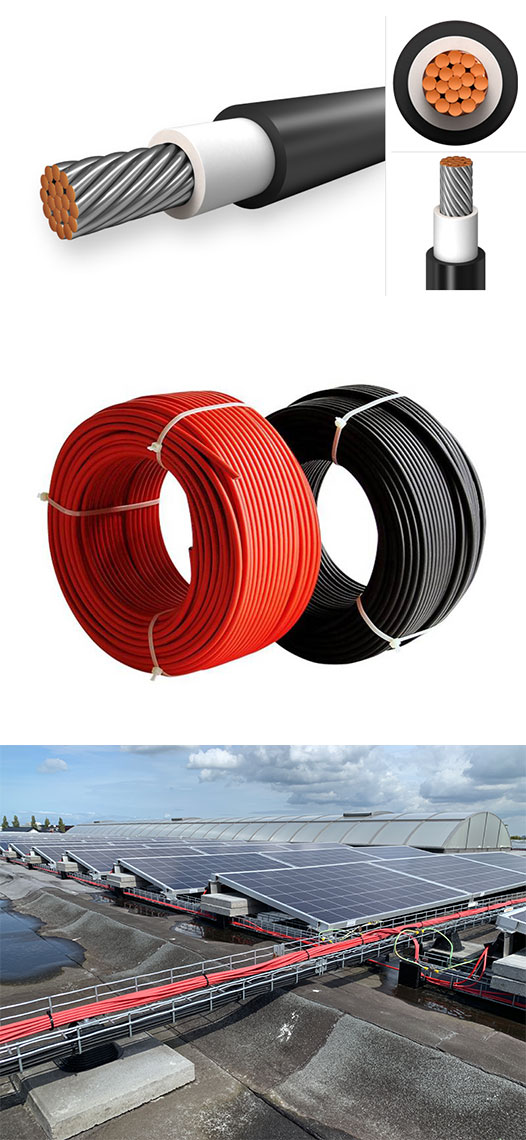

construction

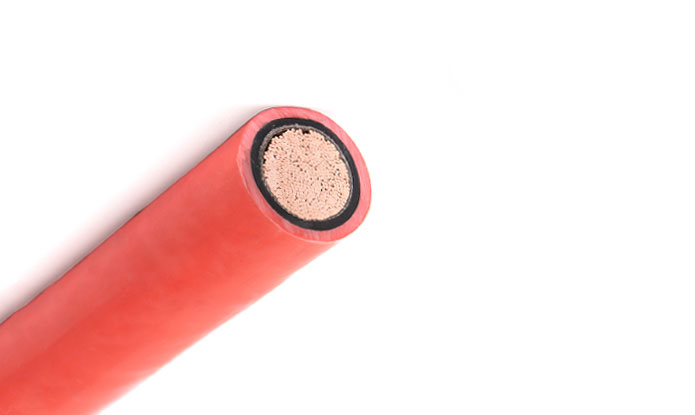

Conductor:

Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5

Insulation:

Electron beam cross-linked, halogen free and flame retardant compound

Sheath:

Electron beam cross-linked, halogen free and flame retardant compound, Black

parameter

Dimensions and Weight

NO. OF CORES ×NOMINAL CROSS SECTION	NO. OF STRANDING	NOMINAL CONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMATER	NOMINAL WEIGHT
NO. ×MM²	-	MM	MM	MM	MM	KG/KM
1×1.5	30/0.25	1.58	1.14	0.82	5.4	52
1×2.5	50/0.25	2.04	1.14	0.82	5.8	67
1×4.0	56/0.30	2.59	1.14	0.82	6.4	87
1×6.0	84/0.30	3.17	1.14	0.82	7.0	113
1×10	78/0.40	4.07	1.52	0.82	8.6	178
1×16	128/0.40	5.22	1.52	0.82	9.8	254
1×25	199/0.40	6.51	1.52	0.82	11.1	363
1×35	279/0.40	7.71	1.52	0.82	12.3	473
