Overview

Appications

HuaTong EV Connection（Automotive） Cable supports both the motor industry and the wider, growing electric vehicle (EV) market. Our EV automotive cable range includes automotive cables for the vehicle itself, whether electric or traditional petrol & diesel.

Characteristics

a. Voltage Rating
Uo/U (Um) AC: 0.6/1 (1.2)kV DC: 1.8/1.8 (1.8)kV
Test Voltage AC: 4kV DC: 9.6kV
b. Temperature Rating
Operating: -15ºC to +90ºC
Minimum Installation Temperature: 0ºC
Maximum Short Circuit Temperature: -240 mm²: +250ºC-Above 240 mm²: +220ºC
c. Minimum Bending Radius
power Flexible Cables: 4 x Overall Diameter
Control Flexible Cables: 6 x Overall Diamete

Standards

EN 50620, IEC 62893, IEC 60502-1, EN 50575:2014, EN 50575/A1:2016

Specifications

ROHS

Medium Voltage

Working Temperature 90℃

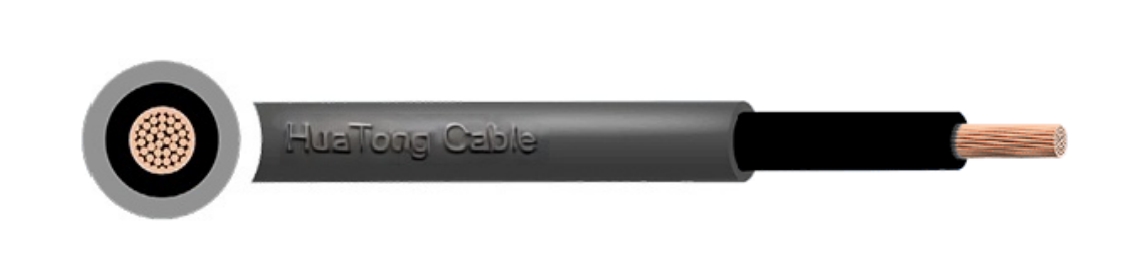

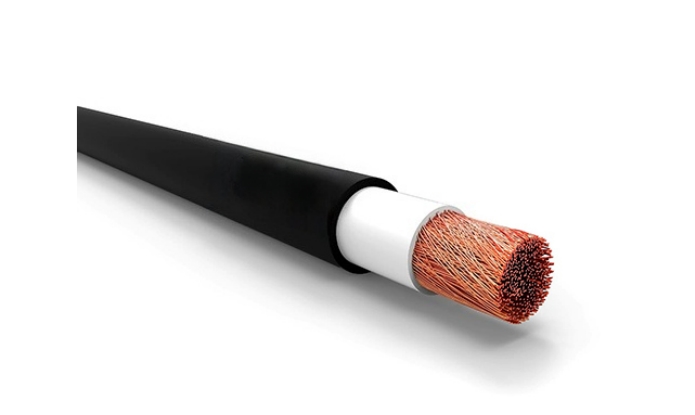

Construction

a. Conductor: Class 5 Flexible Copper Insulation Elastomeric Mixture Insulation (Type G16)
b. Filler Non-Fibrous, Non Hygroscopic
c. Outer Sheath PVC (Polyvinyl Chloride) Type R16
d. Core Identification 1 Core: Black
e. Sheath Colour Light Grey

Parameters

EV Connection Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	MAXIMUM OUTER DIAMETER mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING STRESS N/ mm2
1	4	2.6	0.7	9.30	82	50
1	6	3.4	0.7	9.90	101	50
1	10	4.4	0.7	10.9	152	50
1	16	5.7	0.7	11.4	211	50
1	25	6.9	0.9	13.2	301	50
1	35	8.1	0.9	14.6	396	50
1	50	9.8	1	16.4	556	50
1	70	11.6	1.1	17.3	761	50
1	95	13.3	1.1	20.4	991	50
1	120	15.1	1.2	22.4	1219	50
1	150	16.8	1.4	24.8	1517	50
1	185	18.6	1.6	27.2	1821	50
1	240	21.4	1.7	30.4	2366	50
1	300	23.9	1.8	33.0	2947	50
1	400	27,5	2	37.7	3870	50
