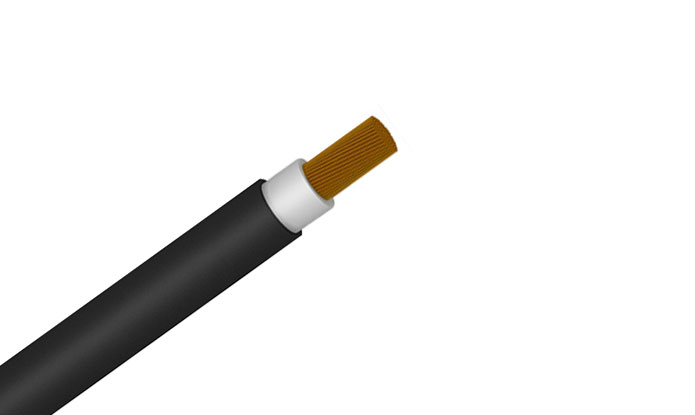

PVC Insulated Single-core Unshielded Low-tension Cable, Automotive Cable

OVERVIEW

SPECIFICATIONS

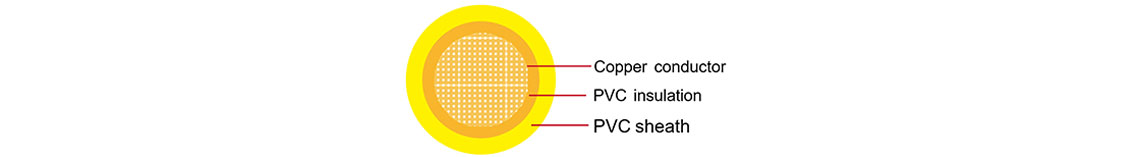

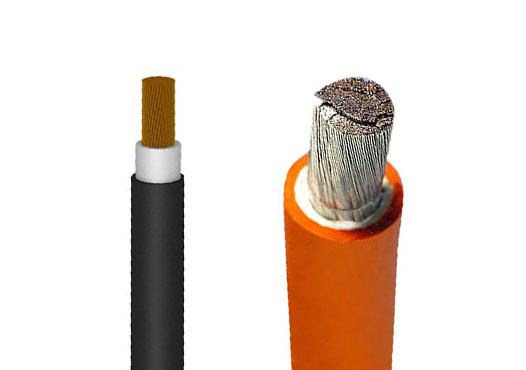

CONSTRUCTION

PARAMETER

Application

This PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

Standard Compliance

ISO 6722

Technical data:

a. Temperature range:
during installation: +5 °C up to+90 °C
fixed installed: -30 °C up to+90°C
at short circuit of max. 5 s: up to 160 °C
ambient temperature at storage: up to 40 °C
b. Minimal inner bending radius: 4D
c. Behavior in fire: IEC 60332-1

Specifications

Low Voltage

Working Temperature 90℃

Fire Resistance

construction

Conductors:

Cu-ETP1 bare according to DIN EN 13602

Insulation:

PVC

Sheath:

PVC

possible insulation colors:

as your request

parameter

Datasheet

	Conductor			Insulation		Cable
Nominal Cross- section	No. and Dia. of Wires	Diameter max.	Electrical Resistance at 20°C max.	Thickness Wall nom.	Diameter of Core	Sheath Thickness Nom.	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	mm	mm	kg/km
1x0.50	16/0.21	1.00	37.10	0.60	2.10	0.40	2.70	3.10	14
1x0.75	24/0.21	1.20	24.70	0.60	2.30	0.40	3.00	3.30	17
1x1.00	32/0.21	1.35	18.50	0.60	2.50	0.40	3.20	3.60	20
1x1.50	30/0.26	1.70	12.70	0.60	2.80	0.50	3.70	4.10	28
1x2.00	40/0.26	2.00	9.42	0.60	3.00	0.50	3.90	4.30	33
1x2.50	50/0.26	2.20	7.60	0.70	3.50	0.50	4.30	4.80	41
