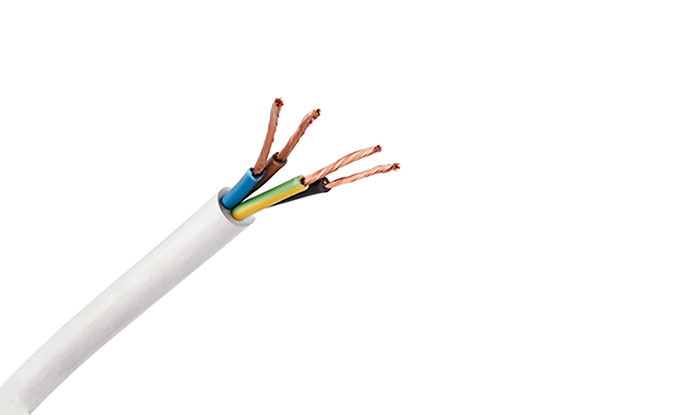

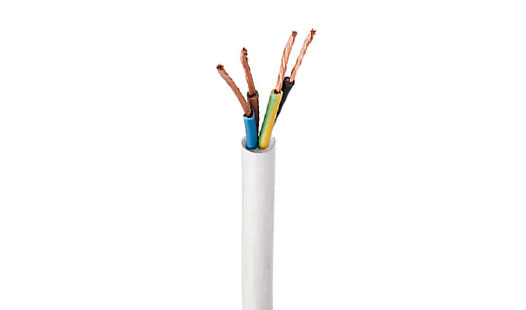

LIYY Cable, Control Cable, 250/250V Class 5 Copper Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

This cable can be used for signal transmission between electronic devices, in computer systems or process control units.

Standards:

DIN VDE 0812
Flame Retardant according to: IEC 60332-1

Characteristics

Voltage Rating Uo/U 250/250V
Temperature Rating Fixed: -30ºC to +80ºC Flexed: -5ºC to +70ºC
Minimum Bending Radius Fixed: 5 x overall diameter Flexed: 7.5 x overall diameter

Specifications

Low Voltage

Flame Retardant

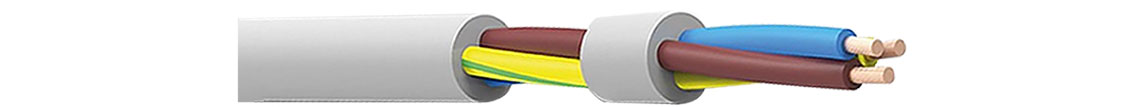

construction

Conductor:

Class 5 Fine Stranded Bare Copper

Insulation:

PVC (Polyvinyl chloride)

Outer Sheath:

PVC (Polyvinyl chloride)

parameter

0.75 mm2 Conductor Size

1 mm2 Conductor Size

1.5 mm2 Conductor Size

Conductor Size			Nominal Overall Diameter	Approximate net weight of cu cables	Maximum conductor resistance at temperature 20°C
(mm2)			(mm)	(kg/km)	Maximum conductor resistance at temperature 20°C
2	*	0.75	5.9	45	26
3	*	0.75	6.2	56	26
4	*	0.75	6.7	69	26
5	*	0.75	7.2	81	26
6	*	0.75	7.7	94	26
7	*	0.75	7.7	104	26
8	*	0.75	8.2	116	26
9	*	0.75	8.8	129	26
10	*	0.75	9.5	143	26
12	*	0.75	9.8	164	26

Conductor Size			Nominal Overall Diameter	Approximate net weight of cu cables	Maximum conductor resistance at temperature 20°C
(mm2)			(mm)	(kg/km)	Maximum conductor resistance at temperature 20°C
2	*	1.0	7.0	60	19.5
3	*	1.0	7.4	77	19.5
4	*	1.0	8.0	95	19.5
5	*	1.0	8.6	113	19.5
6	*	1.0	9.3	131	19.5
7	*	1.0	9.3	146	19.5
8	*	1.0	10.0	164	19.5
9	*	1.0	10.8	183	19.5
10	*	1.0	12.1	213	19.5
12	*	1.0	12.5	245	19.5

Conductor Size			Nominal Overall Diameter	Approximate net weight of cu cables	Maximum conductor resistance at temperature 20°C
(mm2)			(mm)	(kg/km)	Maximum conductor resistance at temperature 20°C
2	*	1.5	7.9	79	13.3
3	*	1.5	8.4	102	13.3
4	*	1.5	9.1	127	13.3
5	*	1.5	9.9	153	13.3
6	*	1.5	10.7	179	13.3
7	*	1.5	10.7	200	13.3
8	*	1.5	12.0	237	13.3
9	*	1.5	12.8	263	13.3
10	*	1.5	13.9	292	13.3
12	*	1.5	14.4	337	13.3
