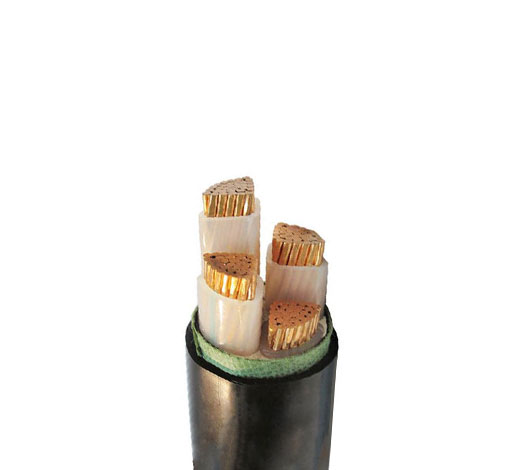

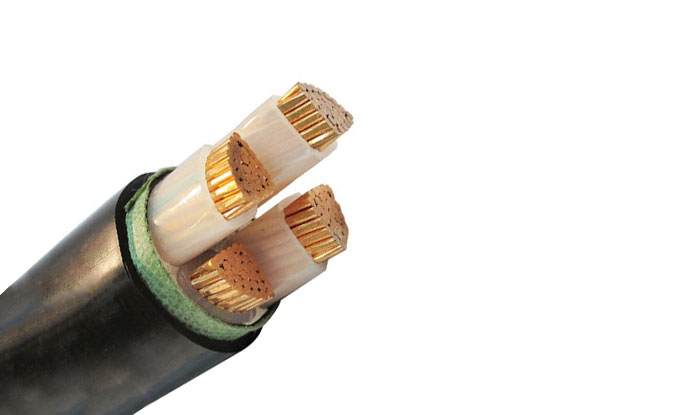

Low Voltage DIN VDE Standard N2XY NA2XY Power Cable, XLPE(Cross linked polyethylene) insulated cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

XLPE(Cross linked polyethylene) insulated cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties.

Standards:

DIN VDE 0276-603
DIN VDE 0276-627
ZN-96/MP-13-K1 203
ALSO CAN AS OUR LLIENT MADE WITH THE GB/12706-2008, IEC60502, IEC60228, IEC60332 BS5467, BS6622, IS1554, IS7098 and ICEA S-66-524 etc.

Product Properties

Suitable for power transmission and distribution lines with rated voltage 0.6/1kV.
3.1 Rated voltages: 0.6/1kV；
3.2 The ambient temperature for installation: ≥0℃
3.3 Maximum conductor temperature in normal operation: ≤90℃
3.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃

Specifications

Low Voltage

Working Temperature 90℃

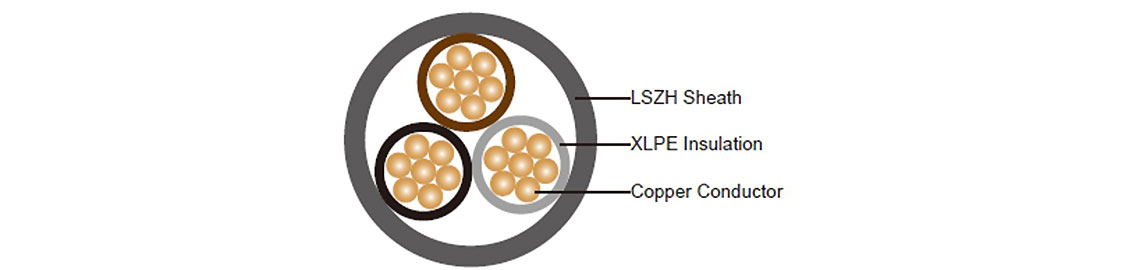

construction

Conductor shaped:

RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded

Conductors:

Plain circular, compacted or shaped stranded copper or aluminium conductor

Insulation:

XLPE (cross-linked polyethylene) rated at 90°C

Color identification:

1 Core : Red or Black, 2 Cores : Red, Black, 3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black, 5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
*The above identifying can be changed as user requirement

Assembly /Inner Sheath:

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted

Armour:

Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.

Fire Performance of Cable Sheaths:

Cables can be supplied with special flame retardant PVC outer sheath to comply With the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, we can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

parameter

main technical parameters

laying of the cable ampacity correction

Directly buried into ground

correct coefficients of ground thermal resistivity

Nominal section area (mm2)	Copper conductor (Ω/km)	Aluminum conductor (Ω/km)
1.5	12.1	-
2.5	7.41	12.1
4	4.61	7.41
6	3.08	4.61
10	1.83	3.08
16	1.15	1.91
25	0.727	1.20
35	0.524	0.868
50	0.387	0.641
70	0.268	0.443
95	0.193	0.320
120	0.153	0.253
150	0.124	0.206
185	0.0991	0.164
240	0.0754	0.125
300	0.0601	0.100
400	0.0470	0.0778
500	0.0366	0.0605

Max. Permissible D.C. resistance of conductor at 20℃

Ambient temperature	20℃	25℃	30℃	35℃	40℃	45℃	50℃
Rating factors	1.18	1.14	1.10	1.05	1.0	0.95	0.89

Rating factors of current rating for ambient temperature

Ambient temperature	15℃	20℃	25℃	30℃	35℃	40℃	45℃
Rating factors	1.07	1.04	1.00	0.96	0.92	0.87	0.83

When the single core cables are installed separately, the distance between the cables is 2 times of the cable’s diameter.
Ambient temperature: 25℃。
Soil thermal resistivity: 1.0℃.m/W。
Depth: 0.7m.
Rating factors under different ambient temperature

thermal resistive ℃.m/W	0.6	0.8	1.0	1.2	1.4	1.6	2.0
Rating factors	1.17	1.08	1.00	0.94	0.89	0.84	0.77

Current Rating Conditions:
Ground Temperature: 25°C Ambient Temperature (air): 30°C
Depth of Soil: 0.8 m Thermal Resistance of Soil: 1.0℃.m/W
