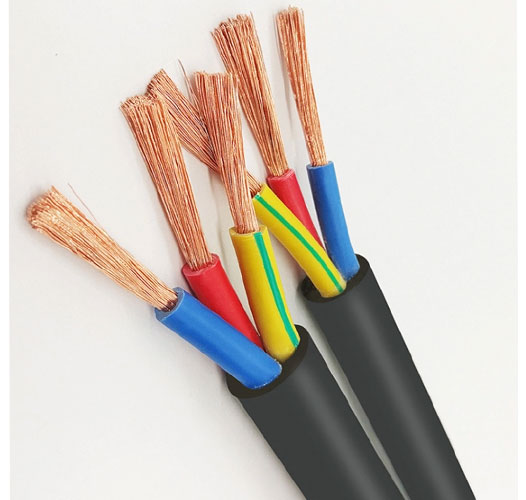

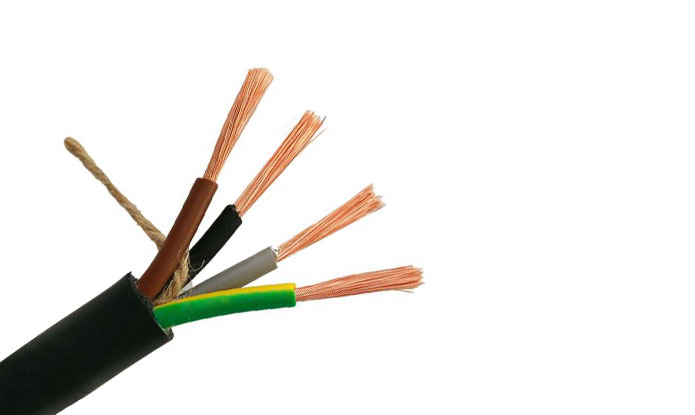

RZ1-K UNE 21123-91 0.6/1kV Stranded Copper Flexible Power Cable, flexible power and control cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. A flexible power and control cable designed for fixed applications. Manufactured with flexible conductors in order to facilitate installations with sinuous courses.

Standards:

UNE 21123-9 1, IEC 60502-1, IEC 60332-3

Technical parameter

Rated voltage: U0/U 0.6/1kV
Test voltage: insulation thickness of more than 0.6 or more: 3000V, finished product testing: 3000V.

The main features

Good soft bending, good oil resistance, resistant to moisture, with a special has the ability of resistance to electromagnetic interference shieding of the cable.
It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.

Specifications

Low Voltage

Oil Resistance

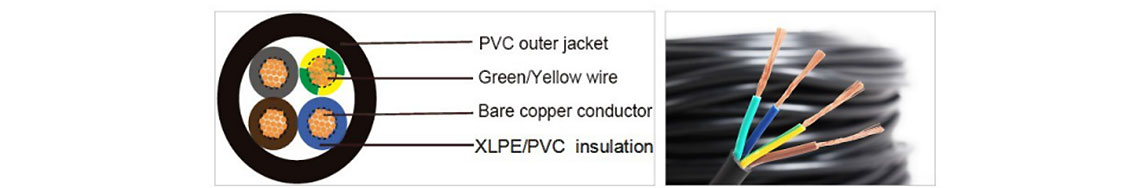

construction

Conductor:

conductor conform to the requirements of the soft GB3956 fifth or sisth kind

Insulation:

PVC/D type PVC insulated

Color:

insulation wire core color said, generally should be used under five core and color recognition

Conductor structure:

more than 5 core can use color recognition and digital recognition twisted with ropes to increase Tension stress,after this can add pp tape, aluminium myra or non-woven belt as buffer

Shielding:

bare copper wire braided shielding

Sheath:

VC/ST5 hardy special jacket, black (RAL9005) or gray(RAL7001)

parameter

Voltage Rating

No. x Nominal Cross Section of Conductor No. x mm2
single core	two cores	three cores	Four cores	five core
1x2.5 mm2	2x2.5 mm2	3x2.5 mm2	4x2.5 mm2	5x4 mm2
1x4 mm2	2x4 mm2	3x4 mm2	4x4 mm2	5x6 mm2
1x6 mm2	2x6 mm2	3x6mm2	4x6 mm2	5x10 mm2
1x 10 mm2	2x 10 mm2	3x 10 mm2	4x10 mm2	5x16 mm2
1x16 mm2	2x16 mm2	3x 16 mm2	4x16 mm2	5x25 mm2
1x25 mm2	2x25 mm2	3x 25 mm2	4x25 mm2	5x35 mm2
1x35 mm2	2x35 mm2	3x 35 mm2	4x35 mm2	5x50 mm2
1x50 mm2	2x50 mm2	3x 50 mm2	4x50 mm2	5x70 mm2
1x70 mm2	2x70 mm2	3x 70 mm2	4x70 mm2	5x95 mm2
1x95 mm2	2x95 mm2	3x 95 mm2	4x95 mm2	5x120 mm2
1x120 mm2	2x120 mm2	3x 120 mm2	4x120 mm2	5x150 mm2
1x150 mm2	2x150 mm2	3x 150 mm2	4x150 mm2	5x185 mm2
1x185 mm2	2x185 mm2	3x 185 mm2	4x185 mm2	5x240 mm2
1x240 mm2		3x240 mm2	4x240 mm2	5x300 mm2

It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.
