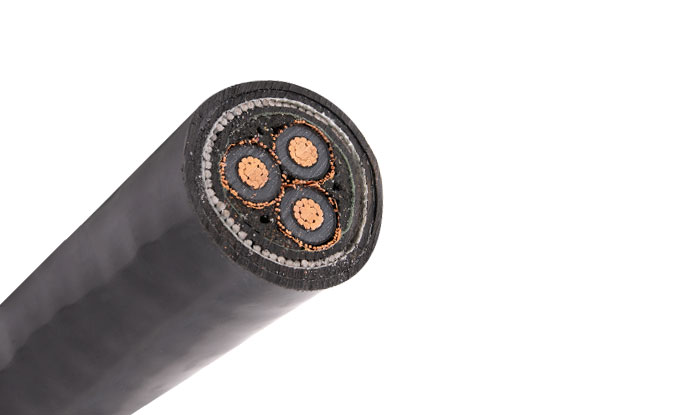

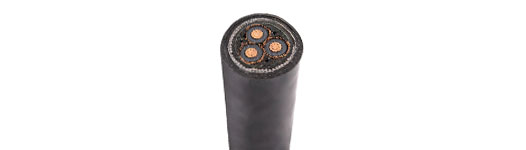

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable, Medium voltage cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

Application

They are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.

Standards:

DIN VDE 0276part 620, HD 620 and IEC 60502

Specifications

Medium Voltage

Working Temperature 90℃

construction

Conductor:

Сu and Al stranded compacted, according to IEC 60228 class 2 or VDE 0295 class 2

Inner Layer:

Semi-conductive material

Insulation:

XLPE (Cross-Linked Polyethylene)

Outer Layer:

Semi-conductive material and tape

Screen:

Copper wires and copper tape

Outer Sheath :

PVC (Polyvinyl Chloride) or PE

Sheath Colour:

Red

parameter

Technical data

N2XSEY 6/10kV 3-core

Voltage rating U0/U	6/10KV	12/20KV	18/30KV
Um	12KV	24KV	36KV
Test Voltage	21KV AC/5 min	42KV AC/5 min	63KV AC/ 5min

Temperature Rating Fixed: -20°C to +70°C Flexed: -5°C to +70°C
Operating temperature: 90C continuous operation
Short Circuit Temperature: +250°C
Minimum Bending Radius:15 x overall diameter

Number of cores x core cross section	Thickness of insulation	Thickness of PVC sheathed	Approx diameter of cable	Approx. cable weight
Number of cores x core cross section	Thickness of insulation	Thickness of PVC sheathed	Approx diameter of cable	Approx. cable weight
mm2	mm	mm	mm	kg/km
3x25/16	3,4	2,5	43	2850
3x35/16	3,4	2,5	48	3300
3x50/16	3,4	2,5	50	3750
3x70/16	3,4	2,6	54	4650
3x95/16	3,4	2,8	58	5700
3x120/25	3,4	2,9	61	6700
3x150/25	3,4	3,0	65	7900
3x185/25	3,4	3,1	68	9200
3x240/25	3,4	3,3	74	11450
3x300/25	3,4	3,3	79	14450
