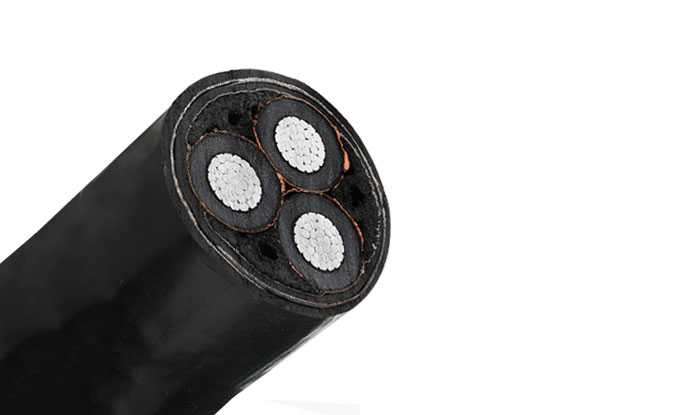

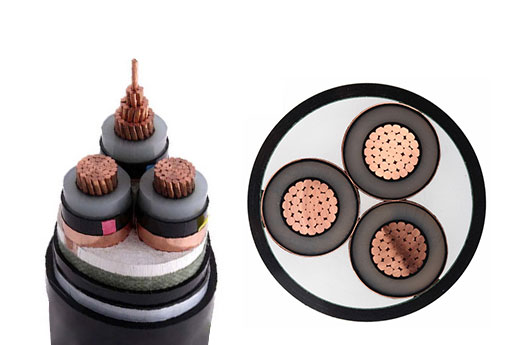

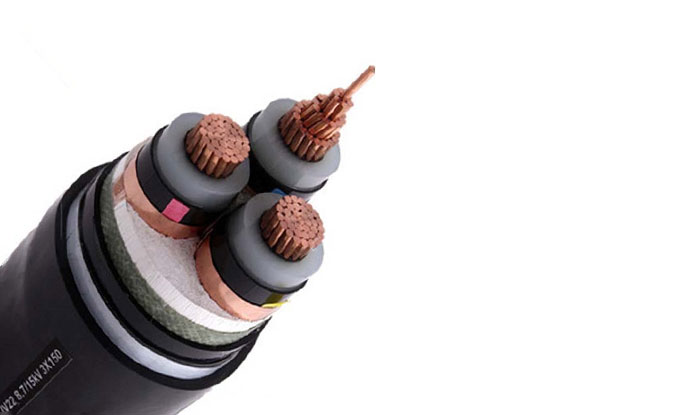

XLPE PVC Type B Three Cores Cable
XLPE PVC Type B Three Cores Cable
XLPE PVC Type B Three Cores Cable
Get A Quote
Product Inquiry
Product Picture
Product name
XLPE PVC Type B Three Cores Cable
XLPE PVC Type B Three Cores Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
They are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.
Standards:
SANS 1339
Technical data:
Voltage: 3.8/6.6kV 6.35/11kV 12.7/22kV 19/33kV
Size: 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240mm2 300mm2
Operating temperature: 90℃ continuous operation
Short Circuit Temperature: +250°C
Minimum Bending Radius: 15 x overall diameter
Specifications
Medium Voltage
Medium Voltage
Working Temperature 90℃
Working Temperature 90℃
construction
Conductor:
Stranded copper condcutor or Circular aluminum condcutor per SANS 1411-1
Inner Semi-Conductive Layer:
Semi-conductive conductor screen
Insulation:
XLPE (Cross-Linked Polyethylene)
Outer Layer:
Semi-conductive core screen
Tape:
Semi-conductive tape
Screen:
copper tape screen
Outer Sheath :
FRPVC (red stripe) LHPVC (blue stripe)
parameter
3.8/6.6kV
6.35/11kV
12.7/22kV
19/33kV
Core*Size Conductor diameter Insulation thickness Nominal diameter over insulation Nominal thickness of Copper tape Outer Sheatehd thickness Diameter of Cable
  app nominal       max.
N x mm² mm mm mm mm mm mm
3.8/6.6KV
3x16 4.8 2.5 12.3 0.2 2.0 37.6
3x25 6.0 2.5 13.5 0.2 2.1 40.4
3x35 7.2 2.5 14.7 0.2 2.2 43.2
3x50 8.4 2.5 15.9 0.2 2.3 46
3x70 10 2.5 17.4 0.2 2.4 49.5
3x95 11.7 2.5 19.2 0.1 2.5 53.1
3x120 13.4 2.5 20.9 0.1 2.6 57
3x150 14.6 2.5 22.1 0.1 2.7 59.8
3x185 16.4 2.5 23.9 0.1 2.8 63.9
3x240 18.8 2.6 26.5 0.1 3.0 70
3x300 21.4 2.8 29.5 0.1 3.2 76.9
Core*Size Conductor diameter Insulation thickness Nominal diameter over insulation Nominal thickness of Copper tape Outer Sheatehd thickness Diameter of Cable
  app nominal       max.
N x mm² mm mm mm mm mm mm
6.35/11KV
3x16 4.8 3.4 14.1 0.2 2.2 41.9
3x25 6.0 3.4 15.3 0.2 2.2 44.5
3x35 7.2 3.4 16.5 0.2 2.3 47.3
3x50 8.4 3.4 17.7 0.2 2.4 50.1
3x70 10 3.4 19.2 0.2 2.5 53.6
3x95 11.7 3.4 21.0 0.1 2.7 57.4
3x120 13.4 3.4 22.7 0.1 2.8 61.3
3x150 14.6 3.4 23.9 0.1 2.9 64.1
3x185 16.4 3.4 25.7 0.1 3.0 68.2
3x240 18.8 3.4 28.1 0.1 3.1 73.6
3x300 21.4 3.4 30.7 0.1 3.3 79.7
3x400 24.3 3.4 33.6 0.1 3.5 86.4
Core*Size Conductor diameter Insulation thickness Nominal diameter over insulation Nominal thickness of Copper tape Outer Sheatehd thickness Diameter of Cable
  app nominal       max.
N x mm² mm mm mm mm mm mm
12.7/22KV
3x25 6.0 5.5 19.5 0.1 2.7 54.2
3x35 7.2 5.5 20.7 0.1 2.8 57
3x50 8.4 5.5 21.9 0.1 2.9 59.8
3x70 10 5.5 23.4 0.1 3 63.6
3x95 11.7 5.5 25.2 0.1 3.1 67.4
3x120 13.4 5.5 26.9 0.1 3.2 71.3
3x150 14.6 5.5 28.1 0.1 3.4 74.3
3x185 16.4 5.5 29.9 0.1 3.5 78.4
3x240 18.8 5.5 32.3 0.1 3.7 84.0
3x300 21.4 5.5 34.9 0.1 3.8 89.8
Core*Size Conductor diameter Insulation thickness Nominal diameter over insulation Nominal thickness of Copper tape Outer Sheatehd thickness Diameter of Cable
  app nominal       max.
N x mm² mm mm mm mm mm mm
19/33KV
3x50 8.4 8.0 26.9 0.1 3.3 71.5
3x70 10 8.0 28.4 0.1 3.4 74.9
3x95 11.7 8.0 30.2 0.1 3.5 79.0
3x120 13.4 8.0 31.9 0.1 3.7 83.1
3x150 14.6 8.0 33.1 0.1 3.8 85.9
3x185 16.4 8.0 34.9 0.1 3.9 90.9
3x240 18.8 8.0 37.3 0.1 4.1 95.7
3x300 21.4 8.0 39.9 0.1 4.2 101.5
