Type W Power, Flat Parallel Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Type W Power, Flat Parallel Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Get A Quote
Product Inquiry

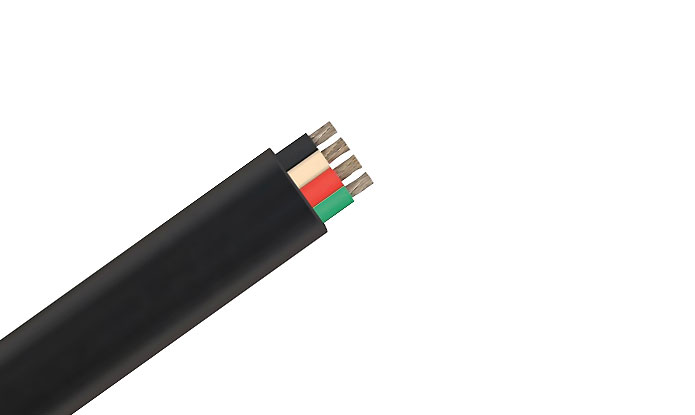

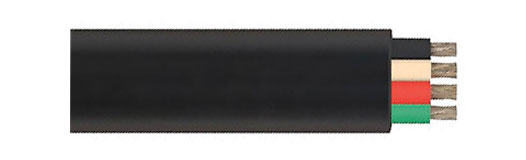

Product Picture
Product name
Type W Power, Flat Parallel Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Type W Power, Flat Parallel Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is not required for fail-safe ground monitoring
-Where induced voltages in the grounding system do not present a hazard
Compliances
ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
Meets flame test requirements and accepted for listing by MSHA
Specifications
Low Voltage
Low Voltage
Working Temperature 90℃
Working Temperature 90℃
Flame Retardant
Flame Retardant

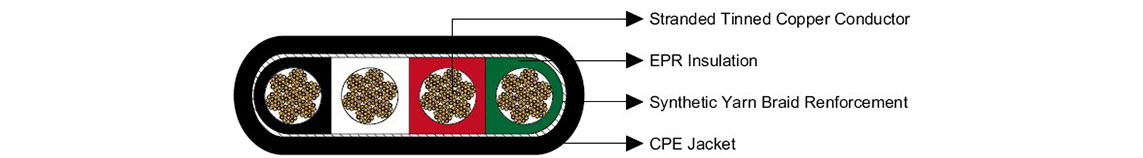

construction
Conductor:
6 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white, red and green)
Jacket:
Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
PARAMETER
Flat Parallel Portable, Four Conductors
NO. OF COND. COND. SIZE (AWG) COND. STRAND NOMINAL INSULATION THICKNESS NOMINAL CABLE DIMENSIONS NET WEIGHT
kg/ km
mm mm
4 6 133 1.5 17.0 x 42.9 1332
4 4 259 1.5 19.0 x 48.0 1764
4 2 259 1.5 20.6 x 56.6 2411
4 1 259 2 24.6 x 66.0 3125
4 1/0 259 2 25.7 x 69.3 3721
4 2/0 329 2 27.9 x 75.2 4316
4 3/0 413 2 30.0 x 82.6 5209
4 4/0 532 2 32.8 x 87.9 6288
