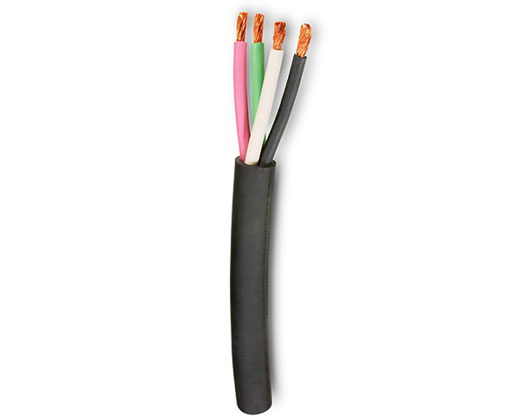

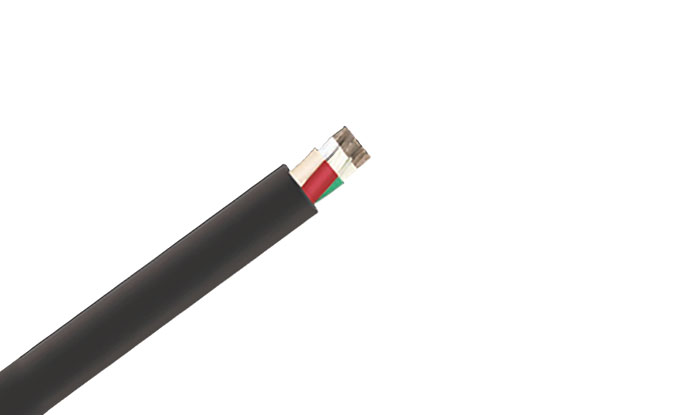

Type W Power, Round Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Type W Power, Round Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Get A Quote
Product Inquiry
Product Picture
Product name
Type W Power, Round Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Type W Power, Round Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is not required for fail-safe ground monitoring
-Where induced voltages do not present a problem
Features:
•Rope-lay-stranded conductors are extremely flexible and resistant to wire breakage
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
•Flexible for easy handling
•Resists cutting, impact, abrasion, flame and sunlight
•Excellent thermal stability and physical properties over a broad temperature range
Compliances
•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA
Specifications
Low Voltage
Low Voltage
UV Resistance
UV Resistance
Working Temperature 90℃
Working Temperature 90℃
Oil Resistance
Oil Resistance
Flame Retardant
Flame Retardant

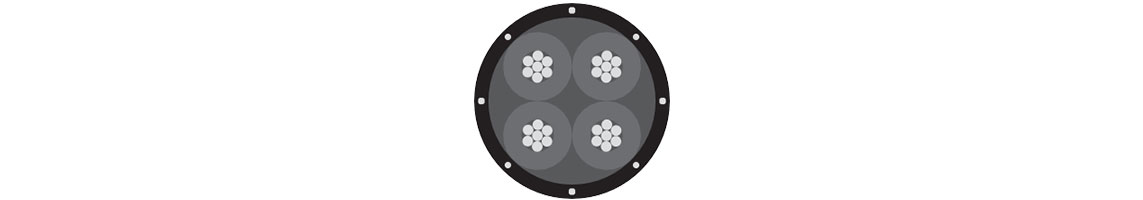

construction
Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white, red and green)
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
PARAMETER
Round Portable, Four Conductors
NO. OF COND. COND. SIZE (AWG/kcmil) COND. STRAND NOMINAL INSULATION THICKNESS NOMINAL CABLE O.D. COPPER WEIGHT NET WEIGHT
kg/ km kg/ km
mm mm
4 6 133 1.5 27.9 507 1247
4 4 259 1.5 32.3 779 1747
4 3 259 1.5 34 988 2049
4 2 259 1.5 37.6 1239 2531
4 1 259 2 42.7 1610 3262
4 1/0 259 2 45.5 2025 3793
4 2/0 329 2 49 2572 4581
4 3/0 413 2 52.6 3228 5485
4 4/0 532 2 57.4 4199 6758
4 250 608 2.4 67.6 4798 8553
4 350 851 2.4 75.7 6748 11275
4 500 1221 2.4 86.4 9682 15441
