Type G-GC Power, Round Portable W/Ground-Check, EPR/CPE	2000 Volts, 90˚C, Three Conductors Cable

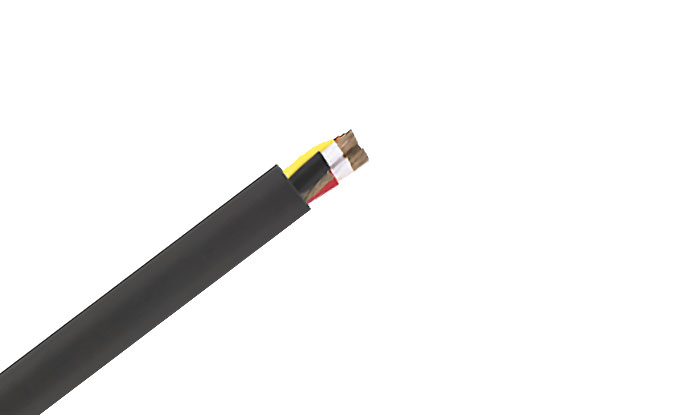

Type G-GC Power, Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable
Get A Quote
Product Inquiry
Product Picture
Product name
Type G-GC Power, Round Portable W/Ground-Check, EPR/CPE	2000 Volts, 90˚C, Three Conductors Cable
Type G-GC Power, Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is required for fail-safe monitoring
-Where induced voltages in the grounding system will not present a hazard
Compliances
•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA
Features
•Ground-check-conductor provides fail-safe ground monitoring for maximum safety
•Improved ground-check conductor has longer flex life and durability
•Rope-lay-stranded conductors are extremely flexible and resistant to wire breakage
Specifications
Low Voltage
Low Voltage
Working Temperature 90℃
Working Temperature 90℃
Flame Retardant
Flame Retardant

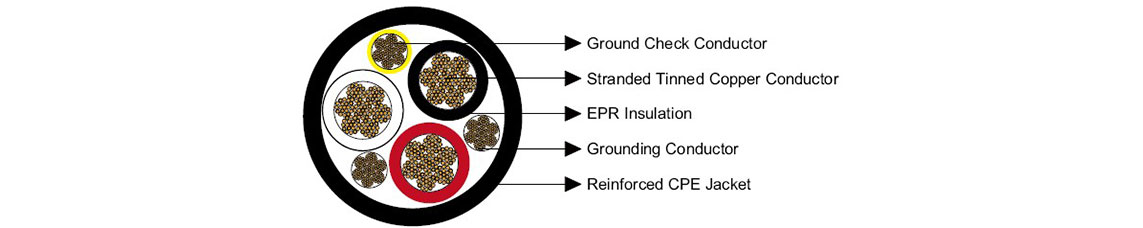

construction
Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white and red)
Ground-Check Conductor:
Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene
Grounding Conductor:
Two coated copper, rope-lay-stranded per ASTM B172
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
parameter
THREE CONDUCTOR, ROUND PORTABLE W/GROUND-CHECK, TYPE G-GC
NO. OF COND. COND. SIZE (AWG) COND. STRAND NOMINAL INSULATION THICKNESS GRD. COND. SIZE (AWG) GRD-CHECK COND. SIZE (AWG) NOMINAL CABLE 0.D. NET WEIGHT
kg/ km
mm mm
3 6 133 1.5 10 10 26.6 1094
3 4 259 1.5 8 10 30.2 1585
3 3 259 1.5 8 10 31.5 1853
3 2 259 1.5 7 10 34 2202
3 1 259 2 6 8 38.3 2805
3 1/0 259 2 5 8 41.9 3408
3 2/0 329 2 4 8 44.4 4033
3 3/0 413 2 3 8 48 4866
3 4/0 532 2 2 8 51.8 5915
3 250 608 2.4 2 6 60.7 7366
3 350 851 2.4 1/0 6 68 9859
3 500 1221 2.4 2/0 6 76.9 13230
