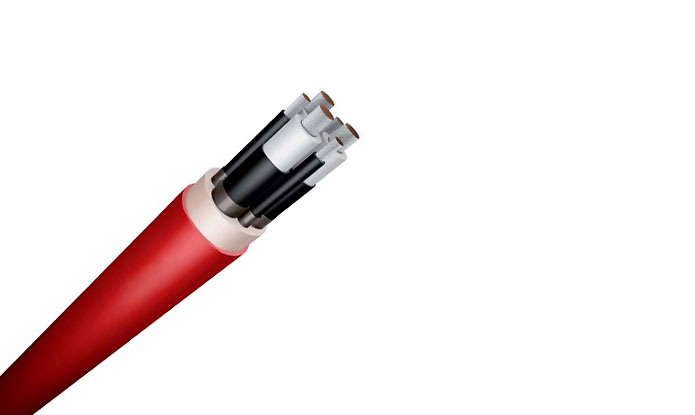

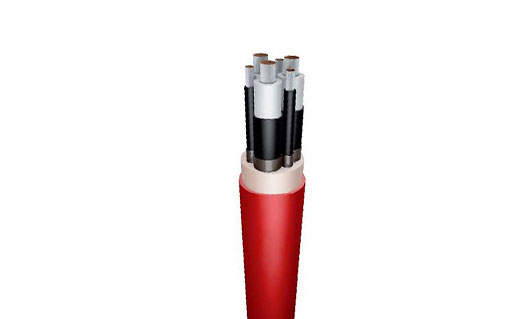

F-(N)TSCGEWÖU 3.6/6 to 18/30 kV Medium Voltage Cable
F-(N)TSCGEWÖU 3.6/6 to 18/30 kV Medium Voltage Cable
Get A Quote
Product Inquiry
Product Picture
Product name
F-(N)TSCGEWÖU 3.6/6 to 18/30 kV Medium Voltage Cable
F-(N)TSCGEWÖU 3.6/6 to 18/30 kV Medium Voltage Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
APPLICATION
For laying alongside the conveyor belts and on material handling equipment and for connection of submersible pump units.
Other industrial applications.
STANDARDS
DIN VDE 0250 p. 813
CHARACTERISTICS
Excellent tear, impact and abrasion resistant
Flame retardant
Temperature range -25℃ to +90℃. For fixed installation lowest temperature is -40℃
UV, sunlight, ozone and oil resistant
Specifications
Cold Resistant -25℃
Cold Resistant -25℃
UV Resistance
UV Resistance
Medium Voltage
Medium Voltage
Working Temperature 90℃
Working Temperature 90℃
Oil Resistance
Oil Resistance
Flame Retardant
Flame Retardant
construction
Conductor:
sAnnealed flexible stranded tin coated or bare copper class 5 to IEC 60228, HD 383
Insulation:
High grade EPR thermosetting compound exceed parameters type 3GI3 to DIN VDE 0207 part 20
Separator:
If needed a suitable semi-conductive tape between the conductor and insulation
Conductor screen:
Semi-conductive layer
Insulation screen:
Semi-conductive layer max. resistivity of semi-conductive layers -200 Ω x m
Internal layer of sheath:
A synthetic thermosetting compound
Outer layer of sheath:
A synthetic thermosetting compound type 5GM5 or 5GM3 to DIN VDE 0207 part 21
Colour of outer jacket:
Red or other colours can be provided
parameter
3.6/6kV F-(N)TSCGEWÖU
6/10kV F-(N)TSCGEWÖU
8.7/15kV F-(N)TSCGEWÖU
12/20kV F-(N)TSCGEWÖU
18/30kV F-(N)TSCGEWÖU
NTMCGEWÖU
Number of cores Cross-section Conductor diameter Approximate overall diameter Approximate weight Conductor resistance at 200C Current-currying capacity at 300C
mm2 mm mm kg/km Ω/km A
3.6/6kV F-(N)TSCGEWÖU
3x25+3x25/3 6.30 40.3 2492 0.795 132
3x25+3x50/3 6.30 40.3 2613 0.795 132
3x35+3x25/3 7.00 41.8 2858 0.565 161
3x35+3x50/3 7.00 41.8 2979 0.565 161
3x50+3x25/3 9.00 46.2 3557 0.393 202
3x50+3x50/3 9.00 46.2 3677 0.393 202
3x70+3x35/3 10.80 51.8 4593 0.277 251
3x70+3x50/3 10.80 51.8 4714 0.277 251
3x95+3x50/3 12.90 56.4 5665 0.210 301
3x120+3x70/3 14.00 58.7 6718 0.164 351
3x150+3x70/3 15.80 64.0 7968 0.132 405
3x185+3x95/3 18.10 68.0 9415 0.108 462
3x240+3x120/3 19.60 72.0 11395 0.0817 540
3x300+3x150/3 23.20 82.2 14350 0.0654 620
Number of cores Cross-section Conductor diameter Approximate overall diameter Approximate weight Conductor resistance at 200C Current-currying capacity at 300C
mm2 mm mm kg/km Ω/km A
6/10kV F-(N)TSCGEWÖU
3x25+3x25/3 6.30 42.0 2649 0.795 132
3x25+3x50/3 6.30 42.0 2769 0.795 132
3x35+3x25/3 7.00 43.6 3021 0.565 161
3x35+3x50/3 7.00 43.6 3141 0.565 161
3x50+3x25/3 9.00 47.9 3735 0.393 202
3x50+3x50/3 9.00 47.9 3856 0.393 202
3x70+3x35/3 10.80 53.6 4794 0.277 251
3x70+3x50/3 10.80 53.6 4914 0.277 251
3x95+3x50/3 12.90 58.1 5882 0.210 301
3x120+3x70/3 14.00 60.4 6944 0.164 351
3x150+3x70/3 15.80 66.2 8342 0.132 405
3x185+3x95/3 18.10 71.0 9873 0.108 462
3x240+3x120/3 19.60 76.0 11989 0.0817 540
3x300+3x150/3 23.20 83.9 14665 0.0654 620
Number of cores Cross-section Conductor diameter Approximate overall diameter Approximate weight Conductor resistance at 200C Current-currying capacity at 300C
mm2 mm mm kg/km Ω/km A
8.7/15kV F-(N)TSCGEWÖU
3x25+3x25/3 6.30 45.4 2981 0.795 138
3x25+3x50/3 6.30 45.4 3101 0.795 138
3x35+3x25/3 7.00 47.0 3365 0.565 173
3x35+3x50/3 7.00 47.0 3485 0.565 173
3x50+3x25/3 9.00 53.1 4330 0.393 216
3x50+3x50/3 9.00 53.1 4450 0.393 216
3x70+3x35/3 10.80 57.0 5214 0.277 265
3x70+3x50/3 10.80 57.0 5335 0.277 265
3x95+3x50/3 12.90 63.3 6597 0.210 320
3x120+3x70/3 14.00 67.1 7919 0.164 370
3x150+3x70/3 15.80 69.7 8859 0.132 428
3x240+3x120/3 19.60 79.5 12581 0.0817 574
3x300+3x150/3 23.20 89.2 15684 0.0654 665
Number of cores Cross-section Conductor diameter Approximate overall diameter Approximate weight Conductor resistance at 200C Current-currying capacity at 300C
mm2 mm mm kg/km Ω/km A
12/20kV F-(N)TSCGEWÖU
3x25+3x25/3 6.30 48.5 3294 0.795 138
3x25+3x50/3 6.30 48.5 3414 0.795 138
3x35+3x25/3 7.00 51.8 3900 0.565 173
3x35+3x50/3 7.00 51.8 4021 0.565 173
3x50+3x25/3 9.00 56.1 4693 0.393 216
3x50+3x50/3 9.00 56.1 4814 0.393 216
3x70+3x35/3 10.80 60.0 5604 0.277 265
3x70+3x50/3 10.80 60.0 5724 0.277 265
3x95+3x50/3 12.90 66.3 7029 0.210 320
3x120+3x70/3 14.00 70.1 8377 0.164 370
3x150+3x70/3 15.80 72.7 9332 0.132 428
3x185+3x95/3 18.10 79.3 11258 0.108 489
3x240+3x120/3 19.60 82.5 13120 0.0817 574
3x300+3x150/3 23.20 92.2 16288 0.0654 665
Number of cores Cross-section Conductor diameter Approximate overall diameter Approximate weight Conductor resistance at 200C Current-currying capacity at 300C
mm2 mm mm kg/km Ω/km A
18/30kV F-(N)TSCGEWÖU
3x25+3x25/3 6.30 58.0 4426 0.795 138
3x25+3x50/3 6.30 58.0 4546 0.795 138
3x35+3x25/3 7.00 59.6 4853 0.565 173
3x35+3x50/3 7.00 59.6 4974 0.565 173
3x50+3x25/3 9.00 65.7 5990 0.393 216
3x50+3x50/3 9.00 65.7 6110 0.393 216
3x70+3x35/3 10.80 69.6 6982 0.277 265
3x70+3x50/3 10.80 69.6 7103 0.277 265
3x95+3x50/6 12.90 75.9 8543 0.210 320
3x120+3x70/3 14.00 78.2 9695 0.164 370
3x150+3x70/3 15.80 82.2 10981 0.132 428
3x185+3x95/3 18.10 88.8 13046 0.108 489
3x240+3x120/3 19.60 92.0 14977 0.0817 574
Size Nominal insulation thickness Nominal jacket thickness Approximate overall diameter Approximate weight Current rating at 300C in air
mm2 mm mm mm kg/km A
NTMCGEWÖU 3.6/6 kV
1x16/16 3.4 2.20 20.3 720 141
1x25/16 3.4 2.20 21.5 828 187
1x35/16 3.4 2.20 22.2 933 231
1x50/16 3.4 2.20 24.2 1119 288
1x70/16 3.4 2.50 26.6 1384 357
1x95/16 3.4 2.50 28.7 1637 430
1x120/16 3.4 2.50 29.8 1888 503
1x150/25 3.4 3.00 32.7 2382 577
1x185/25 3.4 3.00 34.9 2725 658
NTMCGEWÖU 6/10 kV
1x16/16 3.4 2.2 21.1 755 141
1x25/16 3.4 2.2 22.3 864 187
1x35/16 3.4 2.2 23.0 970 231
1x50/16 3.4 2.5 25.6 1197 289
1x70/16 3.4 2.5 27.4 1429 356
1x95/16 3.4 2.5 29.5 1686 430
1x120/16 3.4 3.0 31.6 2016 503
1x150/25 3.4 3.0 33.5 2438 577
1x185/25 3.4 3.5 35.7 2785 658
NTMCGEWÖU 12/20 kV
1x16/16 5.5 2.50 25.9 994 150
1x25/16 5.5 2.50 27.1 1116 198
1x35/16 5.5 2.50 27.8 1230 245
1x50/16 5.5 2.50 29.8 1440 307
1x70/16 5.5 3.00 32.6 1767 379
1x95/16 5.5 3.00 34.7 2048 456
1x120/16 5.5 3.00 35.8 2312 531
1x150/25 5.5 3.50 38.7 2846 611
1x185/25 5.5 3.50 40.9 3218 698
NTMCGEWÖU 18/30 kV
1x16/16 8.0 3.00 31.9 1368 150
1x25/16 8.0 3.00 33.1 1505 198
1x35/16 8.0 3.00 33.8 1629 245
1x50/16 8.0 3.00 35.8 1866 307
1x70/16 8.0 3.50 38.6 2230 379
1x95/16 8.0 3.50 40.7 2539 456
1x120/16 8.0 3.50 41.8 2818 531
1x150/25 8.0 3.50 43.7 3284 611
1x185/25 8.0 3.50 45.9 3680 698
