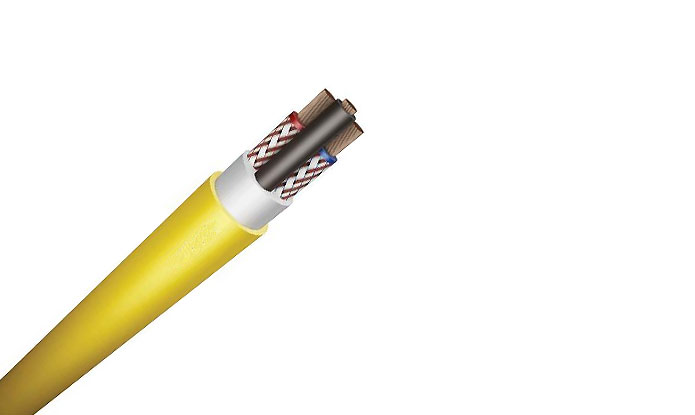

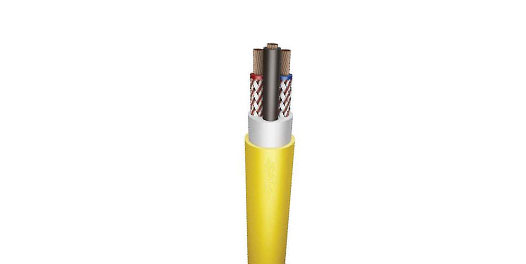

NSSHÖU 0.6/1 kV with Individual Core Screen Heavy Duty Tough Rubber Sheathed Flexible Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

APPLICATION

For use in mines, quarries and industrial areas, indoors and outdoors, for higher mechanical stresses as ﬂexible cable and as trailing cable for mobile current consumers.
Other industrial applications where individual copper screen power cores is needed.

CHARACTERISTICS

High resistance to ripping and notching, to abrasion, oils, greases, chemicals and weather inﬂuences, ﬂame resistant, good ﬂexibility even at low ambient temperatures.
Temperature range: -25oC to +90oC. For ﬁxed installation lowest temperature is -400C.
UV, sunlight, ozone and oil resistant.
Ink jet or embossing printed for easy identiﬁcation.

Specifications

Low Voltage

Cold Resistant -25℃

UV Resistance

Working Temperature 90℃

Oil Resistance

Flame Retardant

construction

Conductor:

Annealed ﬂexible stranded tin coated or bare copper class 5 to IEC 60228, HD 383

Insulation:

Ethylene-propylene rubber (EPR) type 3GI3 in accordance to DIN VDE 0207 p. 21

Separator:

A suitable tape separator between the conductor and insulation

Circuit identiﬁcation:

Brown, black, grey

Internal jacket:

A synthetic thermosetting compound type GM1b in accordance to DIN VDE 0207 p. 21

Outer jacket:

A synthetic thermosetting compound type 5GM3 to DIN VDE 0207 p. 21

Colour of outer jacket:

Yellow

parameter

NSSHÖU

Number and cross-sectional area of conductor	Maximum diameter of wires in conductor	Nominal thickness of insulation	Nominal thickness of inner sheath	Nominal thickness of outer sheath	Approximate overall diameter	Approximate net weight of cables	Maximum conductor resistance at 200C
n x mm2	mm	mm	mm	mm	mm	kg/km	Ω/km
3x1.5+3x1.5/3E	0.25	0.8	1.0	1.6	13.9	286	13.7
3x2.5+3x2.5/3E	0.25	0.9	1.2	2.0	16.6	403	8.21
3x4+3x4/3E	0.3	1.0	1.2	2.0	18.4	519	5.09
3x6+3x6/3E	0.3	1.0	1.2	2.0	19.7	611	3.39
3x10+3x10/3E	0.4	1.2	1.4	2.2	23.3	882	1.95
3x16+3x10/3E	0.4	1.2	1.4	2.2	27.1	1256	1.24
3x16+3x16/3E	0.4	1.2	1.4	2.2	27.1	1315	1.24
3x25+3x16/3E	0.4	1.4	1.6	2.5	31.4	1754	0.795
3x35+3x16/3E	0.4	1.4	1.8	3.0	33.7	2115	0.565
3x50+3x25/3E	0.4	1.6	2.0	3.5	41.4	3147	0.393
3x50+3x35/3E	0.4	1.6	2.0	3.5	41.8	3342	0.393
3x70+3x35/3E	0.4	1.6	2.0	3.5	45.1	3989	0.277
3x95+3x35/3E	0.4	1.8	2.4	4.0	50.9	4496	0.210
3x95+3x50/3E	0.4	1.8	2.4	4.0	50.9	4564	0.210
3x120+3x70/3E	0.4	1.8	2.4	4.0	55.1	6543	0.164
3x150+3x70/3E	0.4	2.0	2.4	4.0	60.0	7728	0.132
3x185+3x95/3E	0.4	2.2	2.8	4.5	67.4	9603	0.108
3x240+3x70/3E*	0.4	2.4	2.8	4.5	71.5	11211	0.0817
