NTMCGCWÖU 3.6/6 to 18/30 kV Medium Voltage Flexible Single Core Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

APPLICATION

For connection of switchgear cubicles mobile transformers substations to the overhead lines Other industrial applications.

STANDARDS

DIN VDE 0250 p. 813

CHARACTERISTICS

Medium voltage cables with concentric screen
Moisture resistant and ﬂame retardant
Temperature range for mobile installation -25℃ to +60℃. For ﬁxed installation -40℃ to +80℃.
UV, sunlight, ozone and oil resistant

Specifications

UV Resistance

Medium Voltage

Cold Resistant -40℃

Oil Resistance

Flame Retardant

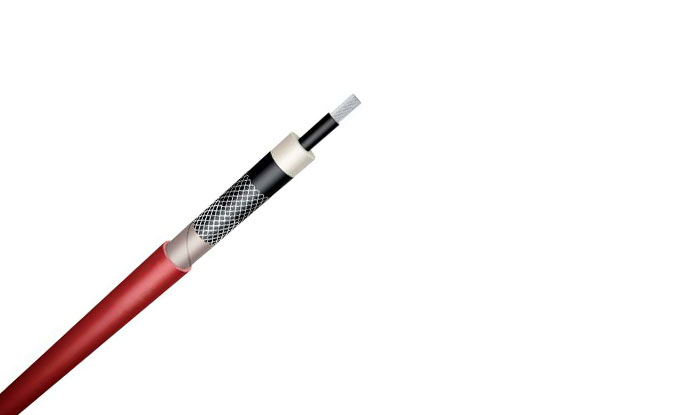

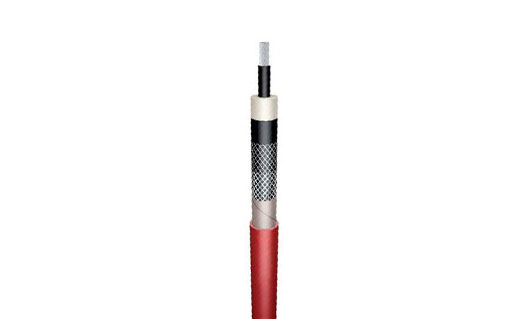

construction

Outer jacket:

A synthetic thermosetting compound type 5GM3 in accordance to DIN VDE 0207 p. 21

Conductor:

Annealed ﬂexible stranded tin coated class 5 to IEC 60228, HD 383

Insulation:

Ethylene-propylene rubber (EPR) type 3GI3 in accordance to DIN VDE 0207 p. 20

Separator:

The wrap of synthetic tape

Conductor screen:

Semi-conductive tape + layer between the conductor and insulation

Insulation screen:

Semi-conductive layer over insulation + the warp or braid of tinned copper wires

Colour of outer jacket:

Red or other colours can be provided

parameter

NTMCGCWÖU

Size	Nominal insulation thickness	Nominal jacket thickness	Approximate overall diameter	Approximate weight	Current rating at 300C in air
mm2	mm	mm	mm	kg/km	A
NTMCGEWÖU 3.6/6 kV
1x16/16	3.4	2.20	20.3	720	141
1x25/16	3.4	2.20	21.5	828	187
1x35/16	3.4	2.20	22.2	933	231
1x50/16	3.4	2.20	24.2	1119	288
1x70/16	3.4	2.50	26.6	1384	357
1x95/16	3.4	2.50	28.7	1637	430
1x120/16	3.4	2.50	29.8	1888	503
1x150/25	3.4	3.00	32.7	2382	577
1x185/25	3.4	3.00	34.9	2725	658
