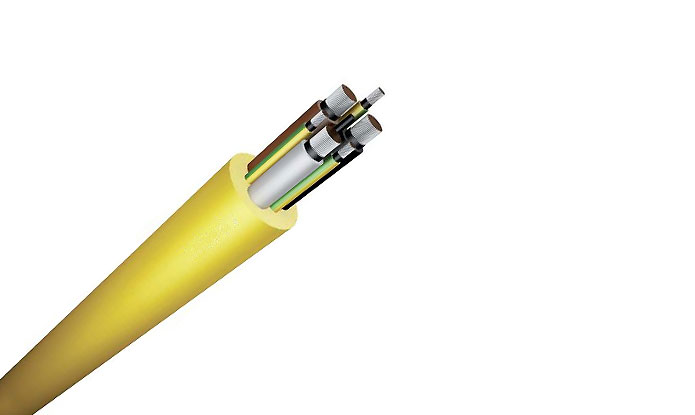

Number and cross- section of power + grounding conductors |
Power conductor stranding |
Nominal insulation thickness | Minimum/ Approx./Maximum overall diameter | Maximum conductor resistance at 200C | Ampacity * at ambient temperature 300C |
Approximate weight of cable |
mm2 | N x mm | mm | mm | Ω/km | A | kg/km |
3x25+3G6 | 180x0.4 | 1.4 | 23.5/25.5/26.0 | 0.780 | 121 | 1252 |
3x35+3G6 | 254x0.4 | 1.4 | 27.0/27.1/29.5 | 0.554 | 150 | 1556 |
3x50+3G10 | 364x0.4 | 1.6 | 30.0/33.2/33.7 | 0.386 | 182 | 2293 |
3x70+3G16 | 514x0.4 | 1.6 | 35.0/38.0/39.5 | 0.272 | 234 | 3164 |
3x95+3G16 | 684x0.4 | 1.8 | 39.0/43.6/44.1 | 0.206 | 284 | 4016 |
3x120+3G25 | 870x0.4 | 1.8 | 44.0/45.8/47.0 | 0.161 | 330 | 4987 |
3x150+3G25 | 1092x0.4 | 2.0 | 49.0/51.9/52.5 | 0.129 | 375 | 6122 |
3x185+3G35 | 1325x0.4 | 2.2 | 54.5/57.5/58.5 | 0.106 | 429 | 7541 |
3x240+3G50 | 1752x0.4 | 2.4 | 60.5/62.7/64.5 | 0.0801 | 510 | 9737 |
3x300+3G50 | 2203x0.4 | 2.6 | 68.5/72.5/73.0 | 0.0641 | 555 | 12029 |
