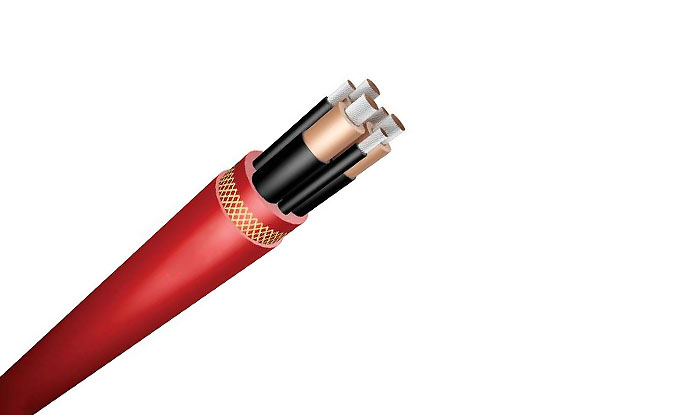

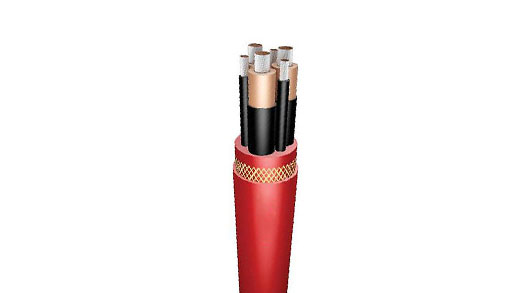

(N)TSKCGEWÖU 3.6/6 (7.2) kV Medium Voltage Trailing Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

APPLICATION

For connection of large material handling machines such as excavators, dumpers, crushers in open-cast mines Cables are suitable for high mechanical stresses in conjunction with mono spiral reels and cylindrical reels Other industrial applications.

STANDARDS

based on DIN VDE 0250 p. 813

CHARACTERISTICS

Excellent tear, impact and abrasion torsion resistant.
Flame retardant and oil resistant.
Temperature range -50℃ to +90℃ .
UV, sunlight, ozone, oil resistant.

Specifications

UV Resistance

Medium Voltage

Working Temperature 90℃

Oil Resistance

Flame Retardant

construction

Conductor:

Annealed ﬂexible stranded tin coated class 5 to IEC 60228, HD 383

Separator:

If needed a suitable semi-conductive tape between the conductor and insulation

Conductor screen:

Semi-conductive layer

Insulation:

Ethylene-propylene rubber (EPR) type 3GI3 to DIN VDE 0207 p. 20

Insulation screen:

Semi-conductive layer Max. resistivity of semi-conductive layers - 200 Ω x m

Core cable:

Three power, two earth and one pilot laid up on cradle separator with Kevlar reinforcement in centre

Semi-conductive covering:

Semi-conductive layer over core of cable

Internal layer of sheath:

A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 part 21

Anti-torsion braid:

Braid of polyamide threads between internal and outer layer of sheath

Outer layer of sheath:

A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 part 21

Colour of outer jacket:

Black

parameter

(N)TSKCGEWÖU

Number of cores Cross-section	Conductor diameter	Approximate overall diameter	Approximate weight	Conductor resistance at 200C	Current-currying capacity at 300C
mm2	mm	mm	kg/km	Ω/km	A
3.6/6 kV (N)TSKCGEWÖU
3x25+2x16+2x16	6.30	41.80	2835	0.795	132
3x35+2x16+1x16	7.00	44.40	3214	0.565	161
3x50+2x16+1x16	9.00	48.70	3922	0.393	202
3x70+2x25+1x25	10.80	53.70	5140	0.277	251
3x95+2x25+1x25	13.00	59.10	6172	0.210	301
3x120+2x35+1x35	14.10	70.00	6750	0.164	351
3x150+2x35+1x35	16.00	78.00	8152	0.132	405
3x185+2x50+1x50	18.20	82.00	9670	0.108	462
