NTSKCGWÖU 0.6/1 (1.2) kV KON Loader Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

STANDARDS

DIN VDE 0250 p. 813

CHARACTERISTICS

Excellent tear, impact and abrasion torsion resistant.
Flame retardant and oil resistant.
Temperature range: -50℃ to +90℃.
Bending radius 2.3 x D, D=diameter of cable.
UV, sunlight, ozone and oil resistant.

Specifications

Low Voltage

UV Resistance

Oil Resistance

Flame Retardant

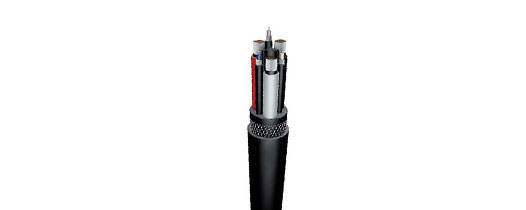

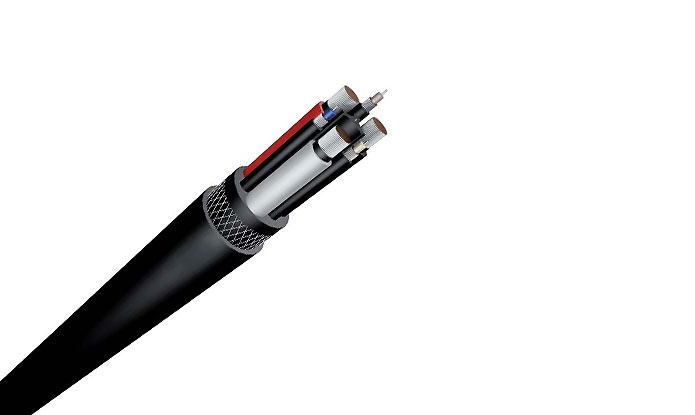

construction

Conductor:

Annealed ﬂexible stranded tin coated copper class 5 to IEC 60228

Separator:

If needed a suitable semi-conductive tape between the conductor and insulation

Insulation:

Ethylene-propylene rubber (EPR) type 3GI3 to DIN VDE 0207 part 20

Pilot cores:

Tinned copper wires stranded on reinforcing yarns with EPR insulation

Earth core:

The wrap of tinned copper strands covered semi-conductive layer

Core of cable:

Three power and three concentric pilot/earth cores laid up on cradle separator with kevlar reinforcement in centre

Semi-conductive covering:

Semi-conductive layer over core of cable

Internal layer of sheath:

A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 part 21

Anti-torsion braid:

Braid of polyamide threads between internal and outer layer of sheath

Outer layer of sheath:

A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 p. 21

Colour of outer jacket:

Black

parameter

NTSKCGWÖU

Number of cores Cross-section	Range overall diameter Min.-Approx.-Max.	Approximate weight	Conductor resistance at 200C	Inductive reactance at 50 Hz	Capacitance	Short circuit capacity	Current- currying capacity at 300C
mm2	mm	kg/km	Ω/km	Ω/km	μF/km	kA	A
3x16+3(1.5KON+16/3KON)	37.3-42.0	2060	1.24	0.089	0.39	2.3	99
3x25+3(1.5KON+25/3KON)	39.1-44.0	2428	0.795	0.088	0.42	3.6	131
3x50+3(1.5KON+25/3KON)	45.1-54.0	3467	0.565	0.083	0.32	6.4	202
