NTSKCGWÖU 0.6/1 (1.2) kV Loader Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

APPLICATION

For connection of material handling machines as loaders in mines Other industrial applications.

STANDARDS

DIN VDE 0250 p. 813

CHARACTERISTICS

Excellent tear, impact and abrasion torsion resistant.
Flame retardant and oil resistant.
Temperature range: -50℃ to +90℃.
Bending radius 4 x D, D=diameter of cable.
UV, sunlight, ozone and oil resistant.

Specifications

Low Voltage

UV Resistance

Working Temperature 90℃

Oil Resistance

Flame Retardant

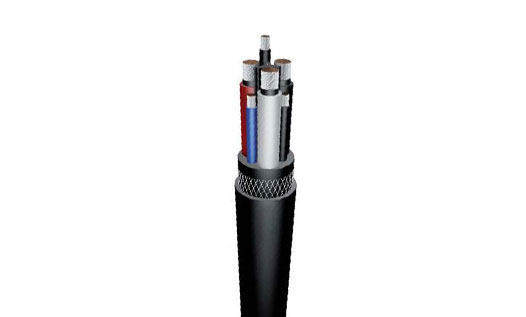

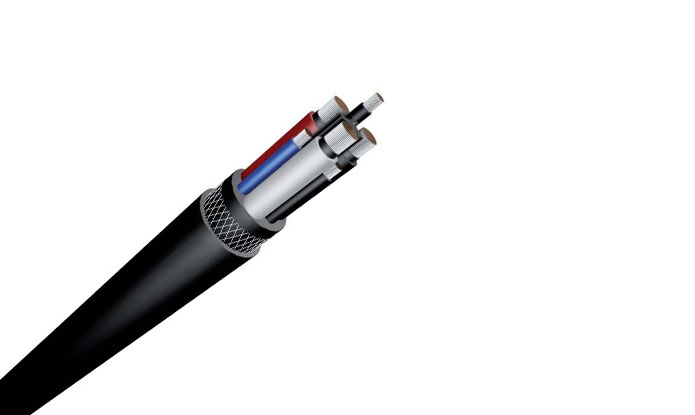

construction

Conductor:

Annealed ﬂexible stranded tin coated copper class 5 to IEC 60228

Separator:

If needed a suitable semi-conductive tape between the conductor and insulation

Insulation:

Ethylene-propylene rubber (EPR) type 3GI3 to DIN VDE 0207 part 20

Pilot cores:

Tinned copper conductors Class 5 with EPR insulation

Earth core:

Tinned copper conductors Class 5 covered semi-conductive compound

Core of cable:

Three power, one earth and two pilots laid up on cradle separator with kevlar reinforcement in centre

Semi-conductive covering:

Semi-conductive layer over core of cable

Internal layer of sheath:

A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 part 21

Anti-torsion braid:

Braid of polyamide threads between internal and outer layer of sheath

Outer layer of sheath:

A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 p. 21

Colour of outer jacket:

Black

parameter

NTSKCGWÖU

Number of cores Cross-section	Range overall diameter Min.-Approx.-Max.	Approximate weight	Conductor resistance at 200C	Inductive reactance at 50 Hz	Capacitance	Short circuit capacity	Current- currying capacity at 300C
mm2	mm	kg/km	Ω/km	Ω/km	μF/km	kA	A
3x16+1x6+2x6P	32.0-32.3-35.0	1526	1.24	0.089	0.39	2.3	99
3x25+1x6+2x6P	37.0-37.4-40.0	2097	0.795	0.088	0.42	3.6	131
3x50+1x10+2x10P	44.0-45.1-50.0	3357	0.565	0.082	0.32	6.4	202
