Type 209 1.1 to 11KV Mining Cable
Type 209 1.1 to 11kV Mining Cable
Get A Quote
Product Inquiry

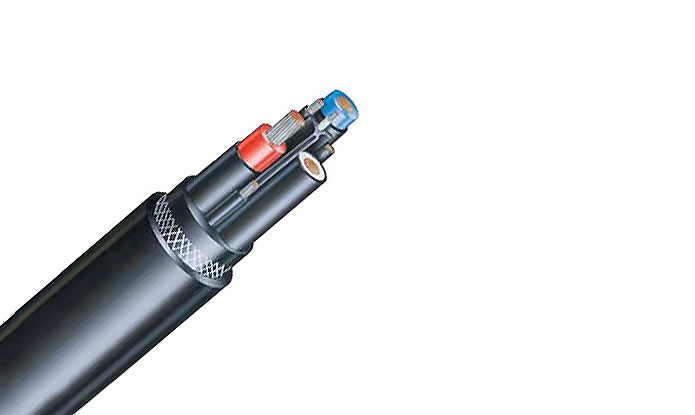

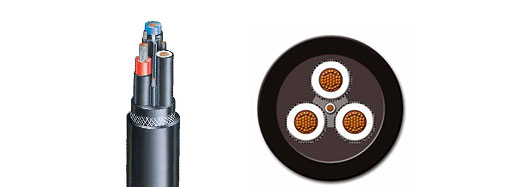

Product Picture
Product name
Type 209 1.1 to 11KV Mining Cable
Type 209 1.1 to 11kV Mining Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
overview
Type 209 series Mining Cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.
STANDARDS:
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1
Specifications
Low Voltage
Low Voltage
Medium Voltage
Medium Voltage

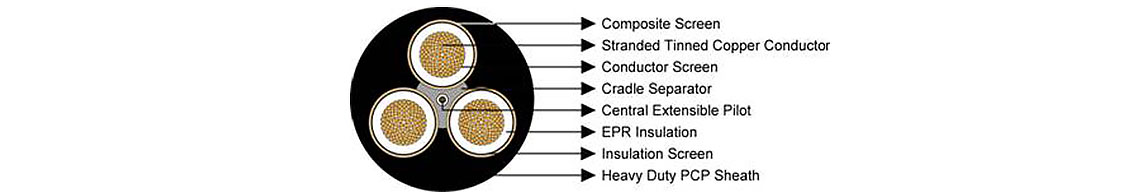

construction
3×Conductors::
Flexible stranded tinned annealed copper conductor.
Conductor Screen:
1.1/1.1kV - polyester barrier tape, 3.3/3.3kV and above - polyester barrier tape and extruded semiconductive tape.
Insulation:
EPR.
Insulation Screen:
Semiconductive tape.
Composite Screen (earth conductor):
Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator:
Semiconductive PCP.
1×Central Extensible Pilot:
EPR covered flexible stranded tinned copper conductor.
Sheath:
Heavy duty PCP sheath.
parameter
TYPE 209.1
TYPE 209.3
TYPE 209.6
TYPE 209.11
NOMINAL CONDUCTOR AREA STRAND SIZE INSULATION THICKNESS CORE SCREEN PILOT CONDUCTOR THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    STRAND SIZE AREA OF SCREEN STRAND SIZE THICKNESS OF COVERING
MM² NO/MM MM NO/MM MM² NO/MM MM MM MM KG/100M
Type 209.1
6 84/0.30 1.5 7/0.25 7.2 24/0.20 0.8 3.8 30.0 129
10 77/0.40 1.5 7/0.25 8.6 24/0.20 0.8 3.8 32.6 157
16 126/0.40 1.6 7/0.25 9.6 24/0.20 0.8 4.0 35.8 197
25 209/0.40 1.6 7/0.25 11.3 24/0.20 0.8 4.3 39.7 255
35 285/0.40 1.6 7/0.25 12.4 24/0.20 0.8 4.6 43.1 312
50 380/0.40 1.7 7/0.25 14.1 40/0.20 0.8 5.0 47.7 386
70 203/0.67 1.8 7/0.25 16.5 40/0.20 0.8 5.4 54.0 503
95 259/0.67 2.0 7/0.25 18.2 40/0.20 0.8 6.0 58.6 605
120 336/0.67 2.1 7/0.25 20.3 40/0.20 0.8 6.4 64.4 741
150 427/0.67 2.3 7/0.25 22.3 40/0.20 0.8 6.9 70.2 896
185 518/0.67 2.5 7/0.30 30.2 40/0.20 0.8 7.4 77.4 1092
240 672/0.67 2.8 7/0.30 33.6 40/0.20 0.8 8.2 86.0 1365
300 854/0.67 3.0 7/0.40 50.1 40/0.20 0.8 8.8 95.1 1715
NOMINAL CONDUCTOR AREA STRAND SIZE INSULATION THICKNESS CORE SCREEN PILOT CONDUCTOR THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    STRAND SIZE AREA OF SCREEN STRAND SIZE THICKNESS OF COVERING
MM² NO/MM MM NO/MM MM² NO/MM MM MM MM KG/100M
Type 209.3
16 126/0.40 3.0 7/0.25 13.1 24/0.20 0.8 5.3 46.2 301
25 209/0.40 3.0 7/0.25 14.8 24/0.20 0.8 5.6 50.1 369
35 285/0.40 3.0 7/0.25 15.8 24/0.20 0.8 5.9 53.5 431
50 380/0.40 3.0 7/0.25 17.2 40/0.20 0.8 6.3 57.6 507
70 203/0.67 3.0 7/0.25 18.6 40/0.20 0.8 6.6 62.5 624
95 259/0.67 3.0 7/0.25 20.3 40/0.20 0.8 7.1 66.2 719
120 336/0.67 3.0 7/0.30 27.2 40/0.20 0.8 7.4 72.0 876
150 427/0.67 3.0 7/0.40 39.6 40/0.20 0.8 7.8 78.0 1072
185 518/0.67 3.0 7/0.40 42.2 40/0.20 0.8 8.2 83.4 1236
240 672/0.67 3.0 7/0.40 46.6 40/0.20 0.8 8.8 90.3 1500
300 854/0.67 3.0 7/0.50 63.2 40/0.20 0.8 9.4 98.4 1840
NOMINAL CONDUCTOR AREA STRAND SIZE INSULATION THICKNESS CORE SCREEN PILOT CONDUCTOR THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    STRAND SIZE AREA OF SCREEN STRAND SIZE THICKNESS OF COVERING
MM² NO/MM MM NO/MM MM² NO/MM MM MM MM KG/100M
Type 209.6
16 126/0.40 5.0 7/0.25 17.2 24/0.20 0.8 6.4 57.3 435
25 209/0.40 5.0 7/0.25 18.6 24/0.20 0.8 6.7 61.2 512
35 285/0.40 5.0 7/0.25 18.6 24/0.20 0.8 7.0 64.6 582
50 380/0.40 5.0 7/0.25 21.3 40/0.20 0.8 7.3 68.5 668
70 203/0.67 5.0 7/0.25 23.4 40/0.20 0.8 7.7 73.7 799
95 259/0.67 5.0 7/0.30 29.2 40/0.20 0.8 8.1 77.8 935
120 336/0.67 5.0 7/0.30 31.7 40/0.20 0.8 8.5 83.1 1090
150 427/0.67 5.0 7/0.40 45.7 40/0.20 0.8 8.9 89.1 1310
185 518/0.67 5.0 7/0.40 48.4 40/0.20 0.8 9.3 94.5 1480
240 672/0.67 5.0 7/0.40 52.8 40/0.20 0.8 9.9 101.4 1750
300 854/0.67 5.0 7/0.50 71.5 40/0.20 0.8 10.4 109.3 2120
NOMINAL CONDUCTOR AREA STRAND SIZE INSULATION THICKNESS CORE SCREEN PILOT CONDUCTOR THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    STRAND SIZE AREA OF SCREEN STRAND SIZE THICKNESS OF COVERING
MM² NO/MM MM NO/MM MM² NO/MM MM MM MM KG/100M
Type 209.11
25 209/0.40 7.6 7/0.25 23.7 24/0.20 0.8 8.1 75.6 750
35 285/0.40 7.6 7/0.30 30.2 24/0.20 0.8 8.4 79.7 858
50 380/0.40 7.6 7/0.30 31.7 40/0.20 0.8 8.7 83.6 960
70 203/0.67 7.6 7/0.30 34.1 40/0.20 0.8 9.1 88.8 1093
95 259/0.67 7.6 7/0.40 47.5 40/0.20 0.8 9.6 93.7 1267
120 336/0.67 7.6 7/0.40 51.0 40/0.20 0.8 9.9 98.8 1436
150 427/0.67 7.6 7/0.40 53.7 40/0.20 0.8 10.3 103.5 1614
185 518/0.67 7.6 7/0.40 57.2 40/0.20 0.8 10.7 108.8 1830
