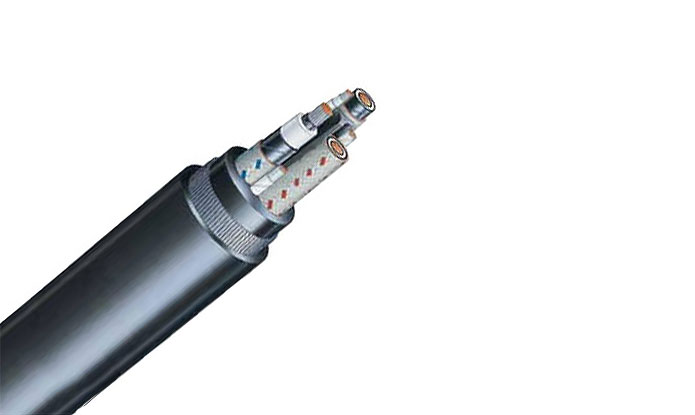

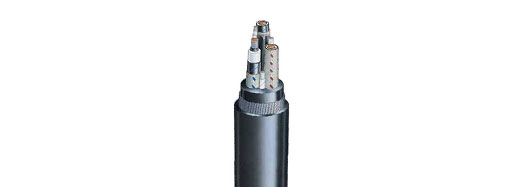

Type 245 1.1 to 6.6kV Mining Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

overview

These very flexible cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables.Cable has 3 central pilots for earth continuity monitoring and for control circuits.

STANDARDS:

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Specifications

Low Voltage

Medium Voltage

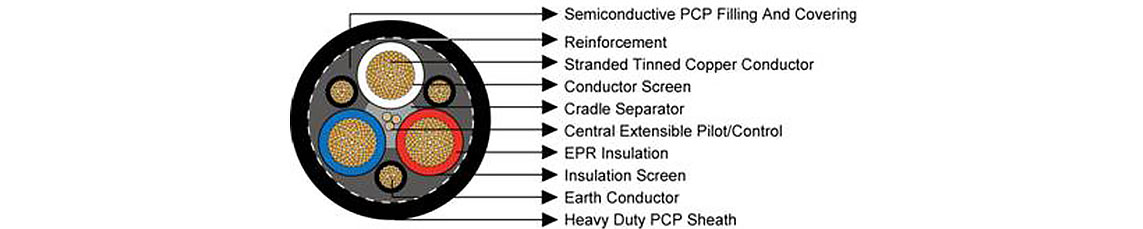

construction

3×Conductors:

Flexible stranded tinned annealed copper conductor.

Conductor Screen:

1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

Insulation:

EPR.

Insulation Screen:

Semiconductive tape.

Cradle Separator:

Semiconductive PCP.

Overall Core Screen:

SemiconductivePCP filling andcovering.

3×Interstitial Earth Conductor:

Semiconductive PCP insulated flexible stranded tinned copper conductor.

3×Central Extensible Pilot:

EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement:

Open-weave braid reinforcement.

Sheath:

Heavy duty PCP sheath.

parameter

Type 245.1

Type 245.3

Type 245.6

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 245.1
16	133/0.40	2.0	69/0.25	1.8	28/0.25	0.8	4.1	42.6	235
25	259/0.36	1.6	91/0.25	1.8	28/0.25	0.8	4.2	43.4	269
35	287/0.40	1.6	140/0.25	1.4	28/0.25	0.8	4.4	45.6	315
50	703/0.30	1.7	120/0.30	1.0	28/0.25	0.8	4.8	48.4	390
70	988/0.30	1.8	180/0.30	1.0	28/0.25	0.8	5.1	53.9	501
95	1332/0.30	2.0	150/0.30	1.0	28/0.25	0.8	5.6	60.4	630
120	1702/0.30	2.1	195/0.30	1.2	28/0.25	0.8	6.0	65.5	765
150	2146/0.30	2.3	235/0.30	1.2	28/0.25	0.8	6.3	70.5	915

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 245.3
25	259/0.36	3.0	91/0.25	1.5	28/0.25	0.8	5.2	51.1	338
35	287/0.40	3.0	140/0.25	1.0	28/0.25	0.8	5.4	54.5	398
50	703/0.30	3.0	120/0.30	1.0	28/0.25	0.8	5.7	56.8	490
70	988/0.30	3.0	180/0.30	1.2	28/0.25	0.8	6.0	61.2	592
95	1332/0.30	3.0	235/0.30	1.2	28/0.25	0.8	6.4	66.6	739
120	1702/0.30	3.0	300/0.30	1.2	28/0.25	0.8	6.7	71.0	870
150	2146/0.30	3.0	375/0.30	1.2	28/0.25	0.8	7.0	75.2	1028

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	EARTH CONDUCTOR		PILOT CONDUCTOR		THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	THICKNESS OF COVERING	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH INCLUDING SC PCP LAYER	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM	NO/MM	MM	MM	MM	KG/100M
Type 245.6
50	703/0.30	5.0	120/0.30	1.4	28/0.25	0.8	6.7	67.2	635
70	988/0.30	5.0	180/0.30	1.4	28/0.25	0.8	7.0	71.7	755
95	1332/0.30	5.0	235/0.30	1.4	28/0.25	0.8	7.4	77.1	905
120	1702/0.30	5.0	300/0.30	1.4	28/0.25	0.8	7.7	81.3	1050
150	2146/0.30	5.0	375/0.30	1.4	28/0.25	0.8	8.0	85.8	1210
