Type 409 1.1 to 22kV Mining Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

overview

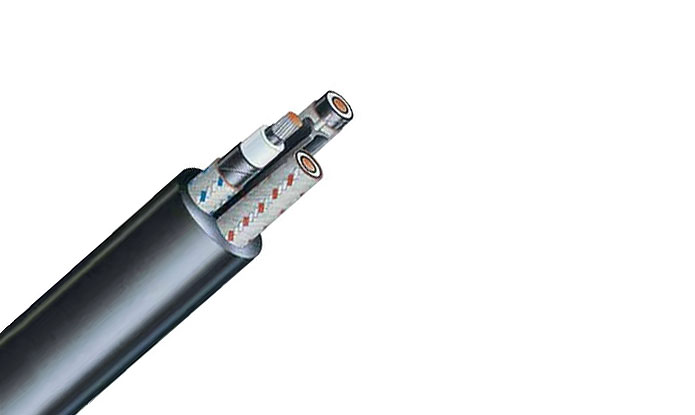

Type 409 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment, while larger onesare used for power supply to draglines, shovelsand drills.

STANDARDS:

AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Specifications

Low Voltage

Medium Voltage

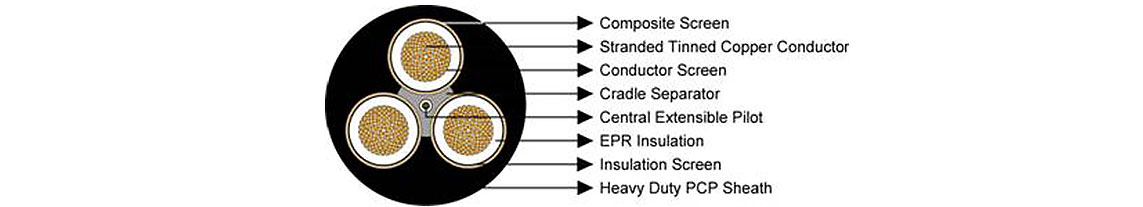

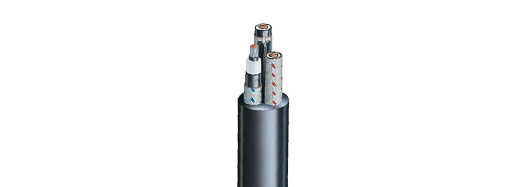

construction

3×Conductors:

Flexible stranded tinned annealed copper conductor.

Conductor Screen:

1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

Insulation:

EPR.

Insulation Screen:

Semiconductive tape.

Composite Screen (earth conductor):

Tinned annealed copper braiding interwove with polyester yarn.

Cradle Separator:

Semiconductive PCP.

1×Central Extensible Pilot:

EPR covered flexible stranded tinned copper conductor.

Sheath:

Heavy duty PCP sheath.

parameter

Type 260.1

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 409.1 Class2
6	84/0.30	1.5	7/0.25	7.2	24/0.20	0.8	3.8	30.0	129
10	77/0.40	1.5	7/0.25	8.6	24/0.20	0.8	3.8	32.6	157
16	126/0.40	1.6	7/0.25	9.6	24/0.20	0.8	4.0	35.8	197
25	209/0.40	1.6	7/0.25	11.3	24/0.20	0.8	4.3	39.7	255
35	285/0.40	1.6	7/0.25	12.4	24/0.20	0.8	4.6	43.1	312
50	380/0.40	1.7	7/0.25	14.1	40/0.20	0.8	5.0	47.7	386
70	203/0.67	1.8	7/0.25	16.5	40/0.20	0.8	5.4	53.9	503
95	259/0.67	2.0	7/0.30	21.8	40/0.20	0.8	6.0	59.3	622
120	336/0.67	2.1	7/0.30	24.7	40/0.20	0.8	6.4	65.1	760
150	427/0.67	2.3	7/0.40	36.1	40/0.20	0.8	6.9	72.1	960
185	518/0.67	2.5	7/0.40	40.5	40/0.20	0.8	7.4	78.6	1160
240	672/0.67	2.8	7/0.50	57.7	40/0.20	0.8	8.2	88.6	1490
300	854/0.67	3.0	7/0.50	63.2	40/0.20	0.8	8.8	96.3	1800
Type 409.3 Class2
16	126/0.40	3.0	7/0.25	13.1	24/0.20	0.8	5.3	46.2	301
25	209/0.40	3.0	7/0.25	14.8	24/0.20	0.8	5.6	50.1	371
