Type 450 3.3 to 33kV Mining Cable, Mining Trailing & Rolling cable&Crane cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

overview

These Type 450 3.3 to 33KV Mining Cables are suitable for supply of power to a wide range of applications, from dragline cable to slow reeling applications, where copper screened cable is required but light weight and smaller dimensions are also desired.

STANDARDS:

AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

Specifications

Medium Voltage

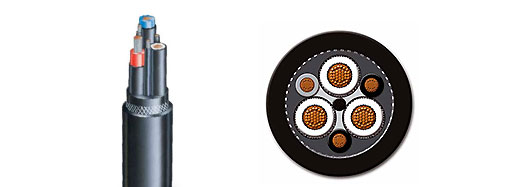

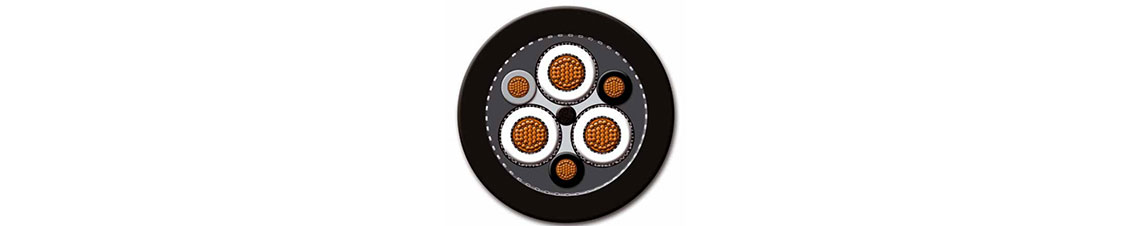

construction

3×Conductors:

Flexible stranded tinned annealed copper conductor.

Conductor Screen:

Polyester barrier tape and extruded semi conductive tape.

Insulation:

EPR.

Insulation Screen:

Semi conductive tape.

Composite Screen:

Tinned annealed copper braiding interwove with polyester yarn, covered with semi conductive tape.

Filler:

Elastomer center filler.

2×Interstitial Earth Conductor:

CSP insulated flexible stranded tinned copper conductor.

1×Interstitial Pilot:

EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement:

Open-weave braid reinforcement.

Sheath:

Extra-heavy duty PCP sheath.

parameter

Type 450.3 Class1

Type 450.6 Class1

Type 450.11 Class1

Type 450.22 Class1

Type 450.33 Class1

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT/EARTH CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 450.3 Class1
16	126/0.40	2.2	128/0.25	6.3	120/0.30	1.4	4.5	42.8	266
25	209/0.40	2.2	118/0.30	8.3	120/0.30	1.4	4.8	46.9	338
35	285/0.40	2.2	127/0.30	9.0	120/0.30	1.4	5.1	50.3	392
50	380/0.40	2.4	141/0.30	10.0	183/0.30	1.4	5.6	55.5	487
70	203/0.67	2.4	117/0.40	14.7	54/0.67	1.4	6.0	61.1	637
95	259/0.67	2.4	123/0.40	15.5	70/0.67	1.6	6.3	64.3	734
120	336/0.67	2.4	135/0.40	17.0	84/0.67	1.6	6.4	69.0	867
150	427/0.67	2.4	144/0.40	18.1	112/0.67	1.6	6.6	73.3	1022
185	518/0.67	2.4	144/0.40	18.1	132/0.67	1.6	6.7	78.1	1175
240	672/0.67	2.4	136/0.50	26.7	168/0.67	1.6	6.9	84.5	1440
300	854/0.67	2.4	144/0.50	28.3	228/0.67	1.6	7.0	90.4	1741

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT/EARTH CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 450.6 Class1
16	126/0.40	3.0	118/0.30	8.3	120/0.30	1.4	5.0	47.6	317
25	209/0.40	3.0	129/0.30	9.1	120/0.30	1.6	5.2	51.2	382
35	285/0.40	3.0	139/0.30	9.8	120/0.30	1.6	5.5	54.7	443
50	380/0.40	3.0	149/0.30	10.5	177/0.30	1.6	5.9	58.8	534
70	203/0.67	3.0	123/0.40	15.5	54/0.67	1.6	6.3	64.3	682
95	259/0.67	3.0	130/0.40	16.3	70/0.67	1.8	6.4	67.1	771
120	336/0.67	3.0	141/0.40	17.7	84/0.67	1.8	6.5	71.9	912
150	427/0.67	3.0	144/0.40	18.1	112/0.67	1.8	6.6	76.0	1073
185	518/0.67	3.0	144/0.40	18.1	132/0.67	1.8	6.8	80.9	1222
240	672/0.67	3.0	141/0.50	27.7	168/0.67	1.8	7.0	87.4	1502
300	854/0.67	3.0	144/0.50	28.3	228/0.67	1.8	7.1	93.2	1790

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT/EARTH CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 450.11 Class1
25	209/0.40	5.0	120/0.40	15.1	120/0.30	2.0	6.3	62.8	542
35	285/0.40	5.0	127/0.40	16.0	120/0.30	2.0	6.4	65.8	601
50	380/0.40	5.0	135/0.40	17.0	183/0.30	2.0	6.5	69.3	692
70	203/0.67	5.0	144/0.40	18.1	54/0.67	2.0	6.6	73.8	826
95	259/0.67	5.0	144/0.40	18.1	70/0.67	2.2	6.7	76.6	926
120	336/0.67	5.0	144/0.40	18.1	84/0.67	2.2	6.9	81.6	1082
150	427/0.67	5.0	139/0.50	27.3	112/0.67	2.2	7.0	86.1	1263
185	518/0.67	5.0	144/0.50	28.3	132/0.67	2.2	7.1	90.8	1433
240	627/0.67	5.0	144/0.50	28.3	168/0.67	2.2	7.3	96.8	1690
300	854/0.67	5.0	144/0.50	28.3	228/0.67	2.2	7.4	102.7	2000

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT/EARTH CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 450.22 Class1
35	285/0.40	7.6	144/0.40	18.1	120/0.30	2.5	6.8	78.4	805
50	380/0.40	7.6	144/0.40	18.1	183/0.30	2.5	6.9	81.8	900
70	203/0.67	7.6	140/0.50	27.5	54/0.67	2.5	7.0	86.8	1070
95	259/0.67	7.6	144/0.50	28.3	70/0.67	2.5	7.2	89.8	1180
120	336/0.67	7.6	144/0.50	28.3	84/0.67	2.5	7.3	94.5	1350
150	427/0.67	7.6	144/0.50	28.3	112/0.67	2.5	7.4	98.6	1520
185	518/0.67	7.6	144/0.50	28.3	132/0.67	2.5	7.5	103.4	1700
240	627/0.67	7.6	144/0.50	28.3	168/0.67	2.5	7.7	109.4	1980
300	854/0.67	7.6	144/0.50	28.3	228/0.67	2.5	7.9	115.4	2310

NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	CORE SCREEN		PILOT/EARTH CONDUCTOR		THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NOMINAL CONDUCTOR AREA	STRAND SIZE	INSULATION THICKNESS	STRAND SIZE	AREA OF SCREEN	STRAND SIZE	THICKNESS OF COVERING	THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
MM²	NO/MM	MM	NO/MM	MM²	NO/MM	MM	MM	MM	KG/100M
Type 450.33 Class1
50	380/0.40	10.5	144/0.50	28.3	183/0.30	2.5	7.4	96.9	1222
70	203/0.67	10.5	144/0.50	28.3	54/0.67	2.5	7.5	101.4	1385
95	259/0.67	10.5	144/0.50	28.3	70/0.67	2.5	7.7	104.4	1505
120	336/0.67	10.5	144/0.50	28.3	84/0.67	2.5	7.8	109.2	1680
185	518/0.67	10.5	144/0.50	28.3	132/0.67	2.5	8.0	118.0	2060
240	627/0.67	10.5	144/0.50	28.3	168/0.67	2.5	8.2	124.0	2360
300	854/0.67	10.5	144/0.50	28.3	228/0.67	2.5	8.4	130.1	2710
