BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
Get A Quote
Product Inquiry
Product Picture
Product name
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
Power cables for power networks, underground and in cable ducting.
Standards:
BS 6622, BS EN/IEC 60228
Flame Retardant according to BS EN/IEC 60332-1-2
Technical data:
a.Temperature range:
during installation: -20~90
fixed installed: -20~90
at short circuit of max. 5 s: 250
ambient temperature at storage: 40
b.Nominal voltage: 6.35/11 (12)kV
PERFORMANCE: e.Behavior in fire: IEC 60332-1-2
Specifications
Medium Voltage
Medium Voltage
Working Temperature 90℃
Working Temperature 90℃
Flame Retardant
Flame Retardant

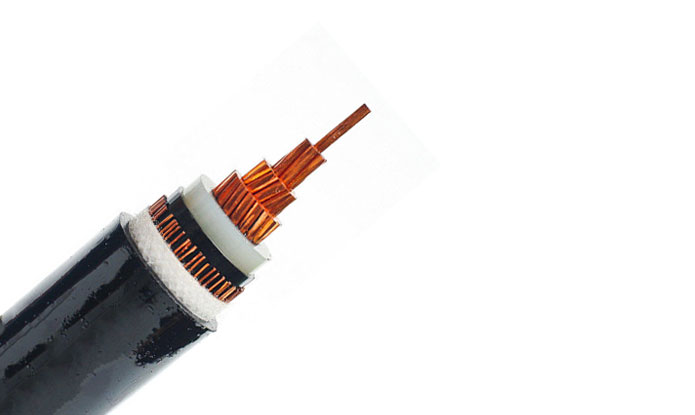

construction
Conductor:
Class 2 stranded copper conductor
Conductor Screen:
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation:
XLPE (Cross-Linked Polyethylene)
Insulation Screen:
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen:
Individual or collective overall copper tape screen
Filler:
PET (Polyethylene Terephthalate) fibres
Separator:
Binding tape
Bedding:
PVC (Polyvinyl Chloride)
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath:
PVC (Polyvinyl Chloride
parameter
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm2
NOMINAL DIAMETER
mm
NOMINAL WEIGHT
kg/km
Under Armour Over Armour Overall
1 50 21.7 24.9 28.5 1200
1 70 23 26.2 30 1500
1 95 24.7 27.9 31.7 1600
1 120 26.7 29.9 33.9 2100
1 150 27.5 31.5 35.7 2500
1 185 29.3 33.3 37.5 2900
1 240 31.6 35.6 40 3600
1 300 34.6 38.6 43 4300
1 400 37 41 45.8 5200
1 500 40.5 45.5 50.5 6500
1 630 44.6 49.6 54.8 8000
1 800 48.8 53.8 59.2 9850
1 1000 53.5 58.5 64.3 12100
3 25 39 44 48.8 4300
3 35 41.6 46.6 51.6 4700
3 50 44.4 49.4 54.6 5300
3 70 48.1 53.1 58.5 6300
3 95 52 57 62.6 7300
3 120 55.6 60.6 66.6 8400
3 150 58.6 63.6 69.8 9600
3 185 62.7 67.7 74.1 11000
3 240 68.1 74.4 81.2 14000
3 300 73.5 79.8 87 16600
