H05RNH2-F 2 Cores Flat Cable
H05RNH2-F 2 Cores Flat Cable
Get A Quote
Product Inquiry

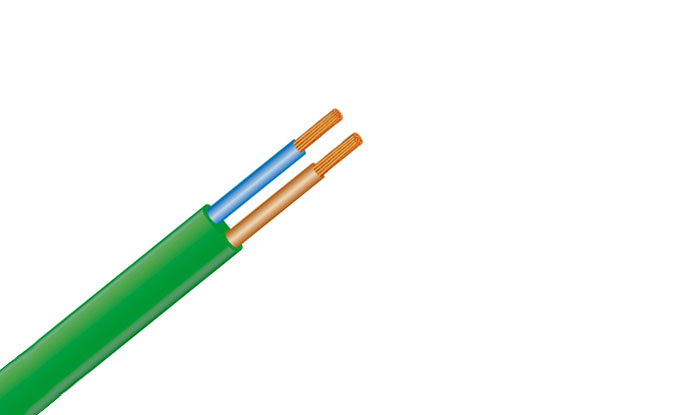

Product Picture
Product name
H05RNH2-F 2 Cores Flat Cable
H05RNH2-F 2 Cores Flat Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
2 cores flat cable under polychloroprene or equivalent synthetic rubber sheath for lighting festoons.
Specifications
Low Voltage
Low Voltage
Flame Retardant
Flame Retardant
construction
Conductor:
Flexible bare or tinned copper Class 5
Insulation:
Special crosslinked elastomer
Outer sheath:
Special crosslinked elastomer for high temperatures
- Colour black or green
- Other colours on request
Core colours:
2 cores= Brown + Blue
parameter
H05RNH2-F 2 Cores Flat Cable
CHARACTERISTICS
Conductor material                 Bare copper  Bare copper
Conductor flexibility             Flexible class 5     Flexible class 5
Outer sheath                    Elastomer Elastomer
Number of cores                     2 2
Conductor cross-section  1.5 mm² 2.5
Approximate weight  132 kg/km 138
Extermal dimensions 5.3mm*13.3mm 5.3mm*13.3mm
 Electrical characteristics
Maximum permissible nominal current  16 A 16.2
Voltage drop, single phase  27.0 V/A.km 25
Rated Voltage Uo/U (Um) 300 / 500 V 300 / 500 V
Mechanical characteristics
Cable flexibility  Flexible  Flexible
 Usage characteristics
Chemical resistance  Good  Good
Flame retardant IEC 60332-1 IEC 60332-1
Operating temperature, range -25 .. 50 °C
Weather resistance Good Good
Short-circuit max. conductor temperature 200 °C 200 °C
Water proof  Accidental  Accidental
