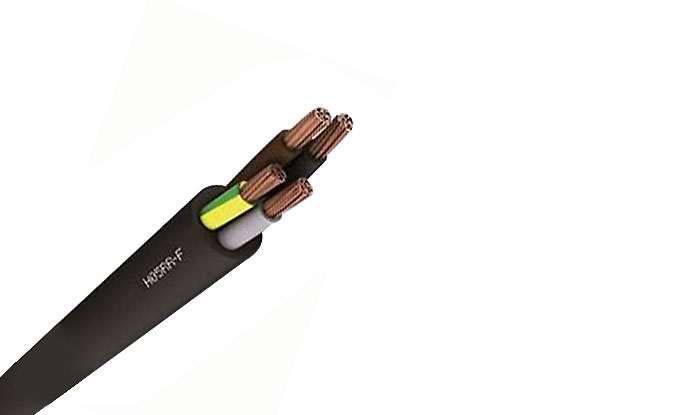

H05RR-F BS EN 50525-2-21 Cable, Rubber flexible cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

Handheld and power supply devices according to EN 50565-2.
For lightweight workshop tools that are subject to light loads.
According to EN 50565-2: dry and damp rooms; only temporary use outdoors; not for industrial/commercial or agricultural facilities, except tailors/cutting workshops; not suitable for supplying industrial power tools.
Light & sound technology.

Standards:

<HAR> cable type approval according to EN 50525-2-21
Product Make-up
Bare copper wire according to HAR
Core insulation: rubber compound, type EI 4
Outer sheath: rubber compound, type EM3

Technical Data

Coloured according to HD 308
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage: U0/U: 300/500 V
Test voltage: 2000 V
Protective conductor: G = with GN-YE protective conductor, X = without protective conductor
Current rating: According to IEC 60364-5-52/ VDE 0298-4, EN 50565-1/ VDE 0298-565-1
Temperature range: Flexible use: -25°C to +60°C

Specifications

Low Voltage

Working Temperature 70℃

Cold Resistant -25℃

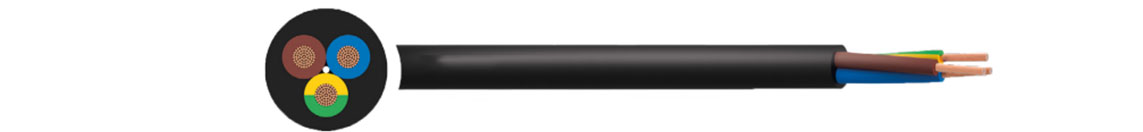

construction

Conductor:

Class 5 Flexible Stranded Copper

Insulation:

EPR (Ethylene Propylene Rubber)

Outer sheath:

Rubber

parameter

H05RR-F

Number of cores and mm² per conductor	Outer diameter [mm]	Copper index (kg/km)	Weight (kg/km)
2 X 0.75	5.7 - 6.7	14.4	61
3 G 0.75	6.2 - 7.4	21.6	75
2 X 1.0	6.1 - 7.3	19.2	73
3 G 1.0	6.5 - 7.7	28.8	86
4 G 1.0	7.1 - 8.5	38.4	105
2 X 1.5	7.6 - 8.8	28.8	115
3 G 1.5	8.0 - 9.4	43.2	135
4 G 1.5	9.0 - 10.4	57.6	165
5 G 1.5	9.8 - 11.4	72	190
2 X 2.5	9.0 - 10.4	48	160
3 G 2.5	9.6 - 11.2	72	190
4 G 2.5	10.7 - 12.3	96	235
5 G 2.5	11.9 - 13.7	120	285
