High Temperature Single Core Solid Silicone SID 180degC Cable
High Temperature Single Core Solid Silicone SID 180degC Cable
Get A Quote
Product Inquiry
Product Picture
Product name
High Temperature Single Core Solid Silicone SID 180degC Cable
High Temperature Single Core Solid Silicone SID 180degC Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
This cable is suitable in applications where the interaction of extreme high and low temperatures can cause the insulation to becomes inflexible and brittle. As a by-product the silicone compound is Low Smoke Zero Halogen, UV and Ozone resistant.
Standards:
Absence of halogens to EN 50267-2-1
Low degree of acidity to EN 50267-2-2
Low emission of toxic smokes and gases to EN 61034-1 - EN 61034-2
Flame propagation test to EN 60332-1-2
Technical data
Voltage: 300/500V. Test voltage: 2000V
Temperature rating: -50°C to +180°C
Characteristics
Voltage Rating (Uo/U) SIA : 300/500V
SIAF - 0.25-6mm2: 300/500V
SIAF - 10mm2 and above: 600/1000V
Temperature Rating Fixed: -60°C to +180°C
Minimum Bending Radius Fixed: 4 x overall diamater
Sheath Colour Black Blue Brown Red White Grey
Specifications
Low Voltage
Low Voltage
UV Resistance
UV Resistance
construction
Conductor:
Class 1 solid tinned copper to EN(IEC-VDE) 60228
Insulation:
Silicone rubber
Colour:
Black, blue, brown, red & white
parameter
Single Core Solid Silicone SID
Size Diameter Insulation Thickness Diameter of Cable Resist. Max 20ºC Weight
mm mm mm mm (Ohm/km) kg/km
0.5 0.8 0.6 2.0 36.7 8.65
0.75 1 0.6 2.2 24.8 11.5
1 1.12 0.6 2.3 18.2 14.2
1.5 1.4 0.6 2.6 12.2 19.5
2.5 1.8 0.7 3.2 7.56 31.1

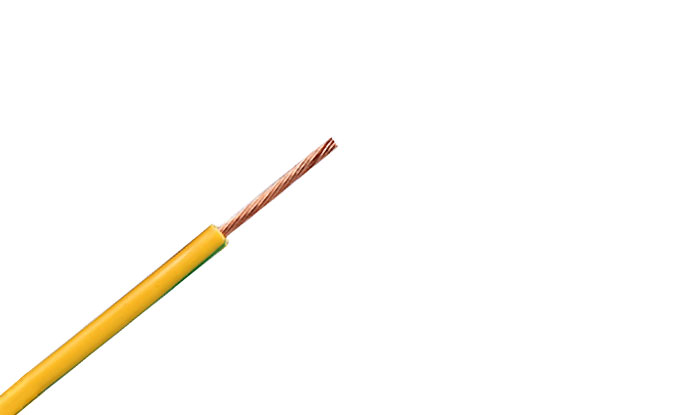

Other Cables With Similar Properties
