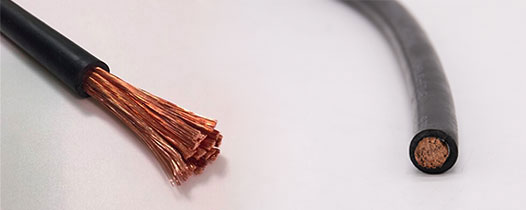

H01N2-D Rubber Sheathed Single Core Welding Cable
H01N2-D Rubber Sheathed Single Core Welding Cable
H01N2-D Rubber Sheathed Single Core Welding Cable
H01N2-D Rubber Sheathed Single Core Welding Cable
Get A Quote
Product Inquiry
Product Picture
Product name
H01N2-D Rubber Sheathed Single Core Welding Cable
H01N2-D Rubber Sheathed Single Core Welding Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
Cable of normal flexibility grade, used as high voltage insulated conductor from electrical welding machine to electrodes, i.e. as earth connection. In addition to hand welding, it can be also applied in automobile industry, shipbuilding, transport systems, production lines, tool manufacturing, welding robots. These cables retain their high flexibility also under the influence of ozone, light, oxygen, protective gases, oils and gasoline. Due to their robust construction, they are also resistant to cold, same as to heat and fire. Suitable for outdoor use, but also in dry and damp conditions.
Technical Data
Voltage Rating: 100V
Temperature Rating Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius: Flexed: 6 x overall diameter
Sheath Colour: Black, Red
Specifications
Low Voltage
Low Voltage
Cold Resistant -40℃
Cold Resistant -40℃
Oil Resistance
Oil Resistance
construction
Conductors:
bare or tinned copper conductor, fine wired stranded, class 6 acc. to IEC 60228 / HD 383 / DIN VDE 0295
Separator:
polyester foil or paper
Sheath:
rubber compound on poly-chloroprene basis (CR) (= Neoprene), i.e. EM5 acc. to DIN VDE 0282 part 803, oil resistant
Sheath colour:
black
parameter
Datasheet
NOMINAL CROSS SECTIONAL AREA
mm²
NOMINAL THICKNESS OF INSULATION
mm
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
10 2 9 146
16 2 10 204
25 2 11.5 290
35 2 12.5 384
50 2.2 14.5 535
70 2.4 16.5 716
95 2.6 18.5 943
120 2.8 20.5 1235
150 3 23 1556
