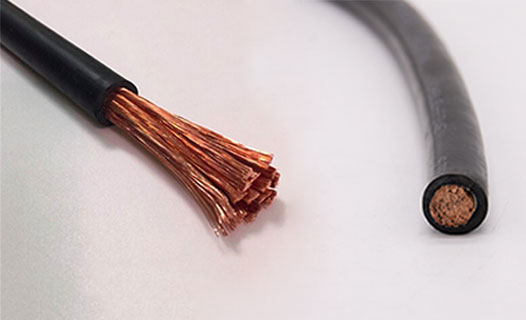

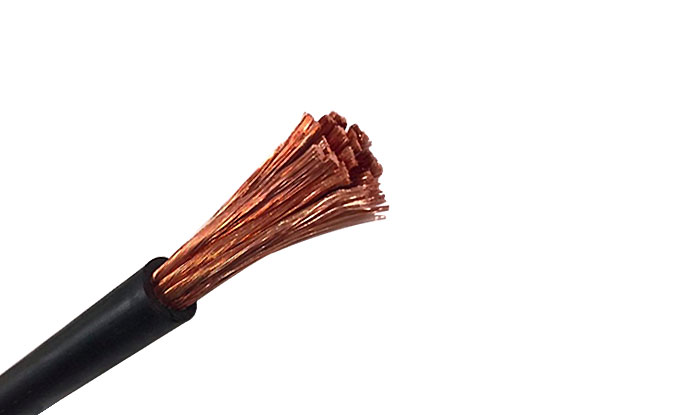

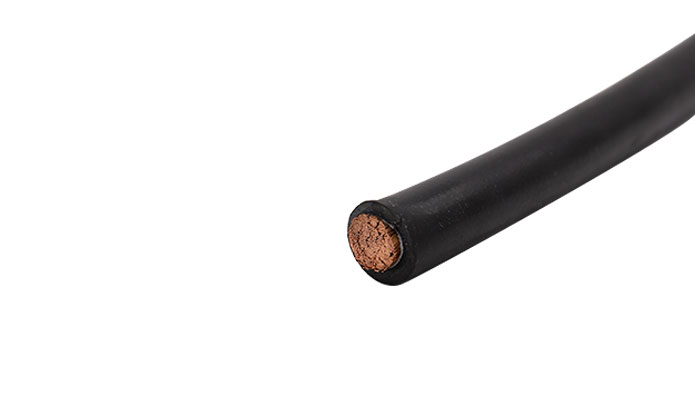

H01N2-E Welding Cable
H01N2-E Welding Cable
H01N2-E Welding Cable
H01N2-E Welding Cable
Get A Quote
Product Inquiry
Product Picture
Product name
H01N2-E Welding Cable
H01N2-E Welding Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
Standards:
BS EN 60228, BS EN 50525-2-81, HD 22.6, VDE 0282-6
Flame Retardant according to BS EN/IEC 60332-1-2
Technical data:
Voltage Rating: 100V
Temperature Rating Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius Flexed: 6 x overall diameter
Specifications
Low Voltage
Low Voltage
Cold Resistant -40℃
Cold Resistant -40℃
Oil Resistance
Oil Resistance
Flame Retardant
Flame Retardant

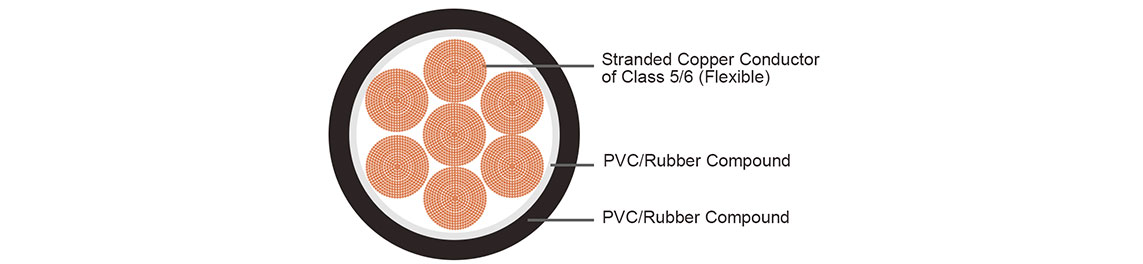

construction
Conductors:
Extra flexible type Class 6 flexible copper conductor
Separator:
PET (Polyester Tape)
Sheath:
Rubber compound
Sheath colour:
black
parameter
Datasheet
NO. OF CORES NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
  mm² mm mm kg/km
1 120 2.8 20.5 1235
1 150 3 23 1556
