CSA AWM L2 L3 L4 L6 Telecom Power Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

Applications

Huatong CSA AWM telecom power cable can be used in Central Office, CATV Head End, Data Center and Cell tower applications. L6 telecom grounding cable is suitable for use in conduit and underground duct. Sunlight and oil resistant. Maximum side wall pressure 500 Lbs./Ft. Suitable for DC and AC.

Features

ROHS

UV Resistance

Oil Resistance

Standards

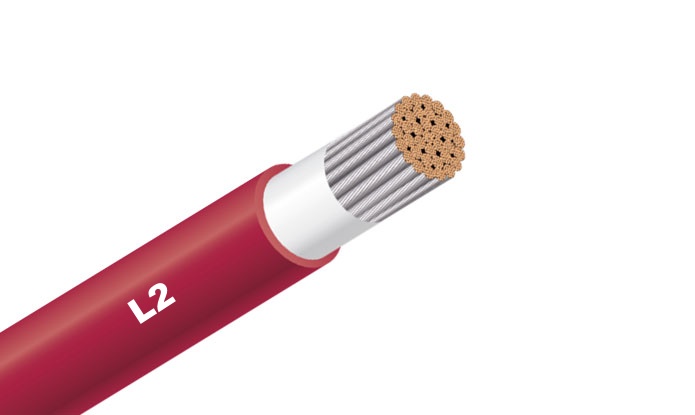

L2 AWM Telecom Cable:
ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
UL 2731 Telecommunications Central Office Power Cable
CSA AWM IB 105°C 600V. FT4-ST1
IEC including 60674 and 60332
RoHS Complaint, Lead-Free, Silicone-Free
ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telcordia GR-347-CORE
REACH - European Community Regulation

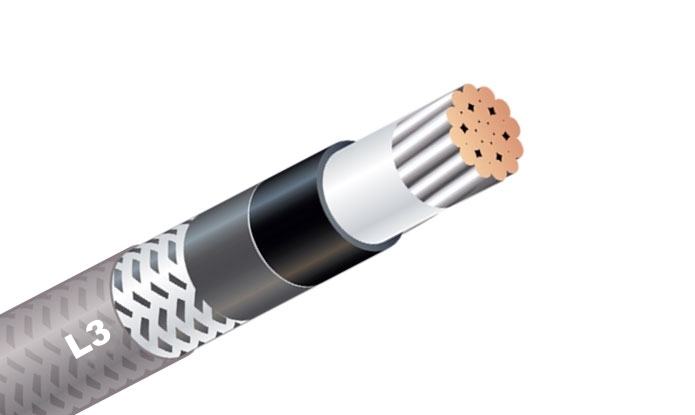

L3 AWM Telecom Cable:
ASTM B8 Concentric-Lay-Stranded Copper Conductors
ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
UL 2731 Telecommunications Central Office Power Cable
CSA AWM IB 105°C 600V. FT4-ST1
IEC including 60674 and 60332
RoHS Complaint , Lead-Free, Silicone-Free
ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telcordia GR-347-CORE
REACH - European Community Regulation

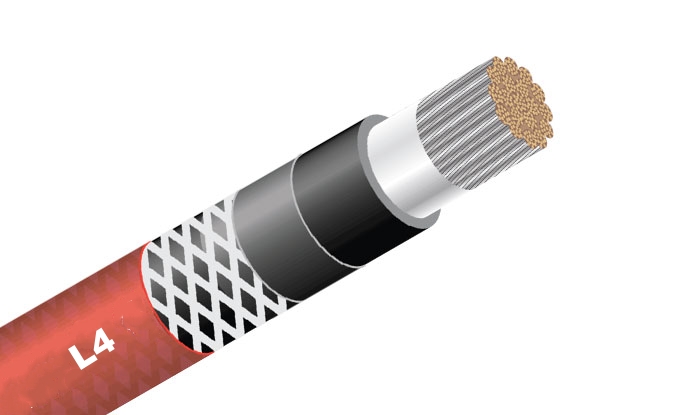

L4 AWM Telecom Cable:
ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
UL 2731 Telecommunications Central Office Power Cable
CSA AWM IB 105°C 600V. FT4-ST1
IEC including 60674 and 60332
RoHS Complaint , Lead-Free, Silicone-Free
ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telcordia GR-347-CORE
REACH - European Community Regulation

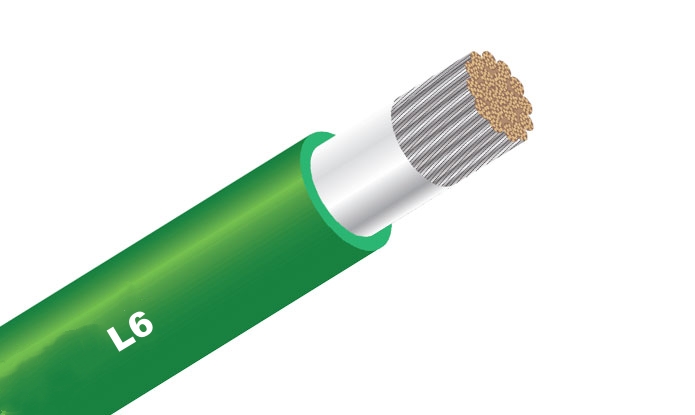

L6 AWM Telecom Cable:
ASTM B1 Hard-Drawn Copper
ASTM B3 Standard Specification for Soft or Annealed Copper Wire
ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
UL 44 Thermoset-Insulated Wires and Cables
ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
RoHS-3 Complies with European Directive 2015/863
REACH - European Community Regulation

Parameters

L2 AWM Telecom Cable

L3 AWM Telecom Cable

L4 AWM Telecom Cable

L6 AWM Telecom Cable

Conductor		Allowable Ampacities+
Size (AWG or kcmil)	No. of Strands	Nominal Total Weight (lbs/1000')	Allowable Ampacity at 75C	Allowable Ampacity at 90C	Insulation Thickness (mils)	DC Resistance at 25°C
14 AWG	41	27	20	25	45	2.73
12 AWG	65	36	25	30	45	1.72
10 AWG	104	51	35	40	45	1.08
8 AWG	41	85	50	55	60	0.679
6 AWG	65	119	65	75	60	0.436
4 AWG	126	200	65	95	60	0.274
2 AWG	168	254	115	130	60	0.172
1/0 AWG	266	430	150	170	80	0.109
2/0 AWG	342	544	175	195	80	0.0565
4/0 AWG	532	780	230	260	80	0.0546
350 KCMIL	888	1273	310	350	95	0.0334
500 KCMIL	1221	1738			95
750 KCMIL	1850	2725	475	535	110	0.0157

Conductor		Allowable Ampacities+
Size (AWG or kcmil)	No. of Strands	Nominal Total Weight (lbs/1000')	Allowable Ampacity at 75C	Allowable Ampacity at 90C	Insulation Thickness (mils)	DC Resistance at 25°C
14 AWG	7	32	20	25	45	2.73
12 AWG	7	42	25	30	45	1.72
10 AWG	7	64	35	40	45	1.08
8 AWG	7	98	50	55	60	0.6795
6 AWG	7	134	65	75	60	0.4276
4 AWG	7	191	85	95	60	0.2689
2 AWG	7	282			60
1 AWG	19	363			80
1/0 AWG	19	442	150	170	80	0.1063
2/0 AWG	19	538	175	195	80	0.08432
4/0 AWG	19	807	230	260	80	0.05248
350 KCMIL	37	1305			95
500 KCMIL	37	1802			95
750 KCMIL	61	2665	475	535	110	0.01481

Conductor		Allowable Ampacities+
Size (AWG or kcmil)	No. of Strands	Nominal Total Weight (lbs/1000')	Allowable Ampacity at 75C	Allowable Ampacity at 90C	Insulation Thickness (mils)	DC Resistance at 25°C
10 AWG	7	64			45
8 AWG	41	99	50	55	60	0.679
6 AWG	65	135	65	75	60	0.436
4 AWG	126	220	85	95	60	0.274
2 AWG	168	279	115	130	60	0.172
1/0 AWG	266	460	150	170	80	0.109
2/0 AWG	342	577	175	195	80	0.0868
4/0 AWG	532	821	230	260	80	0.0546
350 KCMIL	888	1322	310	350	95	0.0334
500 KCMIL	1221	1799	380	430	95	0.0234
750 KCMIL	1850	2787	475	535	110	0.0157

Conductor		Allowable Ampacities+
Size (AWG or kcmil)	No. of Strands	Nominal Total Weight (lbs/1000')	Allowable Ampacity at 75C	Allowable Ampacity at 90C	Insulation Thickness (mils)	DC Resistance at 25°C
10 AWG	7	39			30
6 AWG	7	97			45
6 AWG	65	99	65	75	45	0
2 AWG	7	230			45
2 AWG	168	228	115	130	45	0
