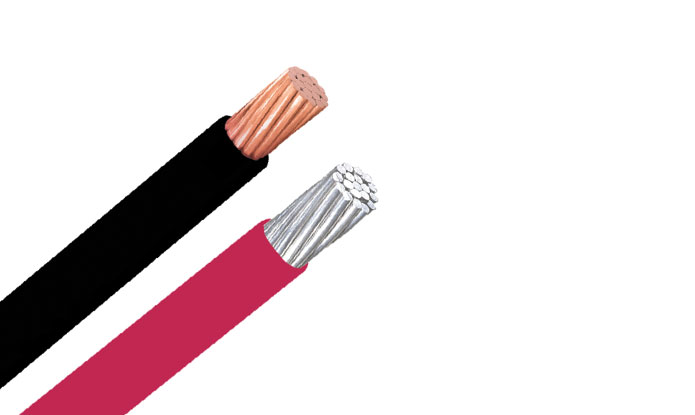

CSA RPVU90 RPV90 Solar Cable

OVERVIEW

SPECIFICATIONS

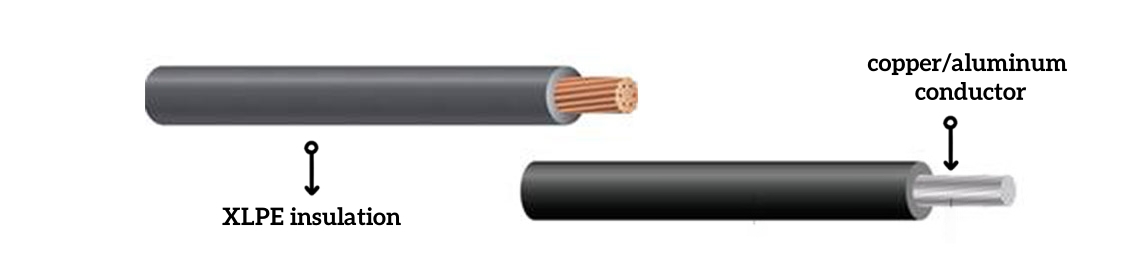

CONSTRUCTION

PARAMETER

Leave your Feedback

Overview

Applications

RPVU90, RPV90 cables may be installed indoors or outdoors, in raceways and conduits, both above and below ground, and may be direct buried. RPVU90 can be used in direct burial installations. It must comply with CE Code Rules 12-012 and 4-004. They are 90ºC, 2 kV rated, and suitable for use in a photovoltaic system.

Type RPVU90 cable is for use on the DC and AC side of a photovoltaic system, suitable for installation in both wet and dry locations, and may be exposed to sunlight.
Type RPV90 cable is for use on the DC and AC side of a photovoltaic system, suitable for installation in dry locations, and may be exposed to sunlight.

RPVU90/RPV90 cables are RoHS Compliant.

Standards

• CSA C22.2 No. 38 - Thermoset-Insulated Wires and Cables
• CSA C22.2 No. 271-11
• ASTM B3, B8, B787
cUL File No.: E365883
CSA File No.: 271587

Features

Voltage：
600V/1000V/2000V
Working temperature:
90ºC MAX, -40ºC MIN
Performance:
• Deformation-resistant at high temperatures
• Excellent moisture resistance, exceeds UL 44
• Stable electrical properties over a broad temperature range
• Increased flexibility
• Resistant to crush and compression cuts
• UV/sunlight-resistant

Specifications

ROHS

UV Resistance

Working Temperature 90℃

Structure

Aluminum:

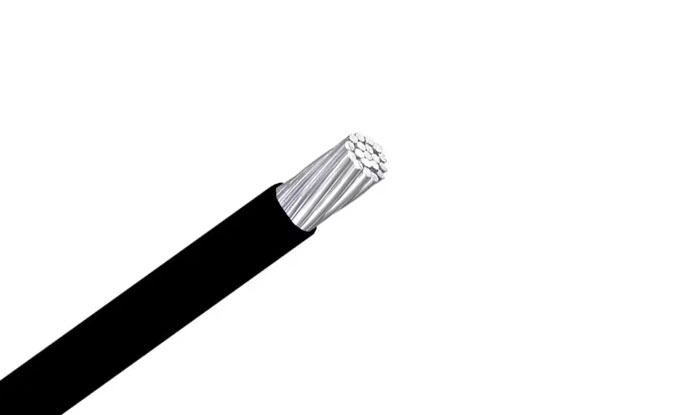

• sizes from #6 AWG to 1000 kcmil, stranded
• compact stranded AA-8000 series aluminum conductor material (ACM) per ASTM B801 Class B or ASTM B836

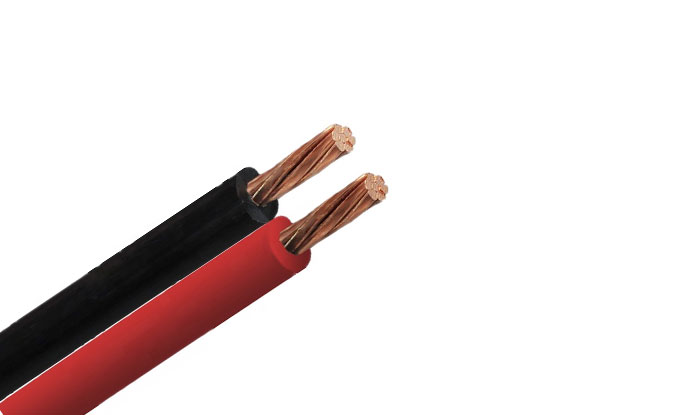

Copper:
• sizes from #14 AWG to 1000 kcmil, solid or stranded
• bare, stranded annealed per ASTM B8 Class B compressed

Parameters

1000V/2000V RPVU90

2000V RPV90 Aluminium AA8000

All dimensions are nominal are nominal and subject to normal manufacturing tolerances.

Size (AWG/Kcmil)	Conductor		Ins. Thickness		Approx O.D.		Weight/Km		Max. DC resistance at 20 C
Size (AWG/Kcmil)	Nos of strands (CU)	Nos of strands (AL)	mm (CU)	mm (AL)	mm (CU)	mm (AL)	kgs (CU)	kgs (AL)	Ω/km (CU)	Ω/km (AL)
12	7	/	1.52	/	5.3	/	57.8	/	5.43	/
10	7	/	1.52	/	5.9	/	79.9	/	3.41	/
8	7	/	2.03	/	7.7	/	130.2	/	2.14	/
6	7	7	2.03	2.03	8.6	8.4	165.7	84	1.35	2.210
4	7	7	2.03	2.03	9.8	9.5	246.1	113	0.848	1.390
2	7	7	2.03	2.03	11.3	10.9	366.9	156	0.534	0.875
1/0	19	18	2.41	2.41	14.0	13.3	576.0	238	0.335	0.550
2/0	19	18	2.41	2.41	14.8	14.4	706.1	285	0.266	0.436
3/0	19	19	2.41	2.41	16.4	15.5	876.3	341	0.211	0.346
4/0	19	19	2.41	2.41	17.8	16.9	1,083.4	412	0.167	0.274
250	37	36	2.79	2.79	19.8	18.8	1,293.4	498	0.142	0.232
350	37	36	2.79	2.79	22.4	21.3	1,768.1	657	0.101	0.166
400	37	36	2.79	2.79	23.5	22.3	2,003.5	734	0.0885	0.145
500	37	36	2.79	2.79	25.6	24.3	2,473.2	888	0.0709	0.116
750	61	60	3.18	3.18	31.0	29.3	3,676.8	1,305	0.0472	0.0774

All dimensions are nominal are nominal and subject to normal manufacturing tolerances.

Size (AWG/Kcmil)	Conductor	Ins. Thickness	Approx O.D.	Weight/Km	Max. DC resistance at 20 C )
Size (AWG/Kcmil)	Nos of strands	mm	mm	kgs	Ω/km
6	7	1.78	7.9	74.1	2.210
4	7	1.78	9.0	102.0	1.390
3	7	1.78	9.6	120.5	1.100
2	7	1.78	10.4	143.6	0.875
1	18	2.29	12.2	192.5	0.693
1/0	18	2.29	13.1	228.6	0.550
2/0	18	2.29	14.2	274.0	0.436
3/0	19	2.29	15.3	329.6	0.346
4/0	19	2.29	16.7	398.8	0.274
250	36	2.67	18.5	482.6	0.232
350	36	2.67	21.0	639.1	0.166
400	36	2.67	22.0	715.2	0.145
500	36	2.67	24.0	867.0	0.116
750	60	3.05	29.0	1,271.3	0.0774
1500	91	3.56	41.2	2,452.8	0.0387
