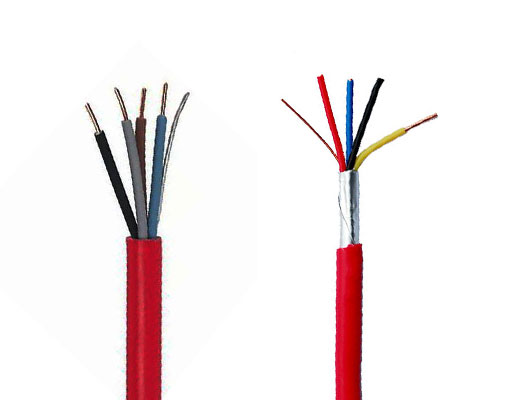

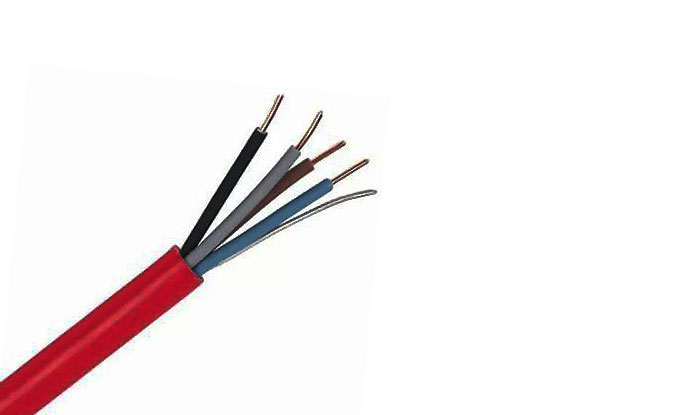

300/500V Mica+XLPE Insulated & LSZH Sheathed Fire Alarm Cable, Fire Resistant Fire Alarm Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

Application

The 300/500V Mica+XLPE Insulated & LSZH Sheathed Fire Resistant Fire Alarm Cables are designed, manufactured and tested as data transmission cables for emergency services. These are primarily intended for for indoor instrumentation and control cabling, electrically noisy environments and fire alarm systems in office buildings when high frequency signal transmission has to be assured in the event of a fire.

Standards:

Basic design to BS 7629-1

COLOUR CODE

Insulation Colour: According to IEC 60189-2 (other colour code on request).
Sheath Colour: Colour red (other colours on request).

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C - +90°C
Temperature range during installation (mobile state): -20°C - +50°C
Minimum bending radius: 8 x Overall Diameter

Specifications

Low Voltage

LSZH

Working Temperature 90℃

Fire Resistance

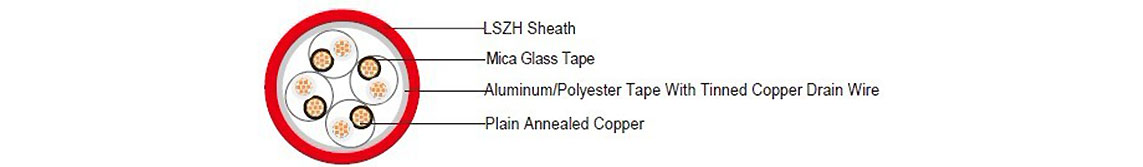

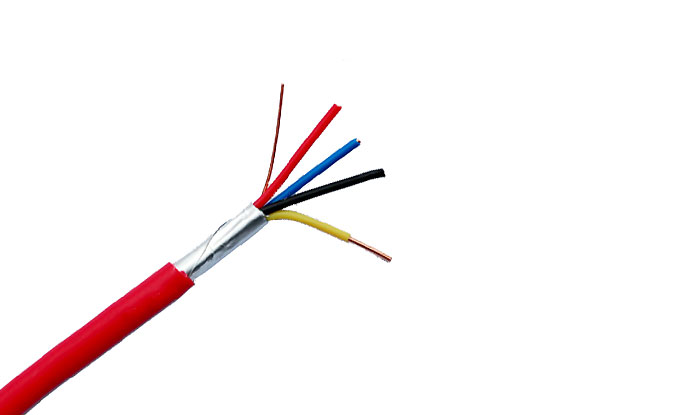

construction

Conductors:

Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation:

Mica glass tape covered by extruded cross-linked XLPE compound or cross-linked compound

Cabling Elements:

Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation.

Cabling:

Pairs are cabled together. In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, the bunches are then cabled together.

Overall screen:

Aluminum/polyester tape with tinned copper drain wire.

Outer Sheath:

Thermoplastic LSZH compound

parameter

1-5 Pairs

10-20 Pairs

CABLE CODE	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
MM2	MM	MM	MM	KG/KM
1 Pairs
1x2x0.75 stranded	0.6	0.8	7.8	64
1x2x1 stranded	0.6	0.9	8.4	73
1x2x1.5 stranded	0.7	0.9	9.3	87
2 Pairs
2x2x0.75 stranded	0.6	0.9	10.7	118
2x2x1stranded	0.6	1.0	11.5	136
2x2x1.5 stranded	0.7	1.0	13.0	165
5 Pairs
5x2x0.75 stranded	0.6	1.1	14.8	218
5x2x1 stranded	0.6	1.2	15.7	266
5x2x1.5 stranded	0.7	1.3	18.1	342

CABLE CODE	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
MM2	MM	MM	MM	KG/KM
10 Pairs
10x2x0.75 stranded	0.6	1.3	20.1	380
10x2x1 stranded	0.6	1.4	21.3	455
10x2x1.5 stranded	0.7	1.5	24.8	606
15 Pairs
15x2x0.75 stranded	0.6	1.4	24.9	535
15x2x1 stranded	0.6	1.5	26.5	646
15x2x1.5 stranded	0.7	1.6	30.8	862
20 Pairs
20x2x0.75 stranded	0.6	1.5	28.2	680
20x2x1 stranded	0.6	1.6	30.2	839
20x2x1.5 stranded	0.7	1.8	34.9	1121
