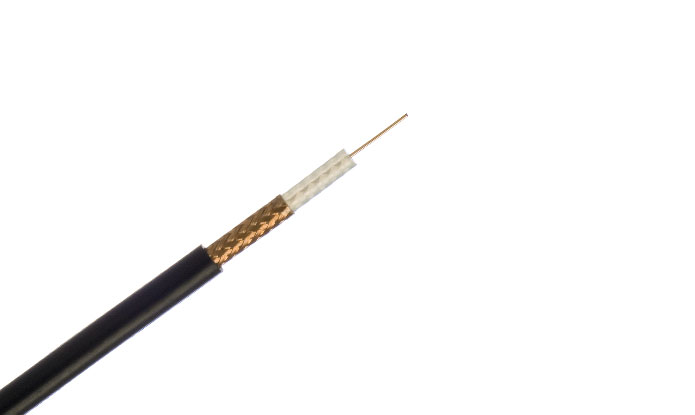

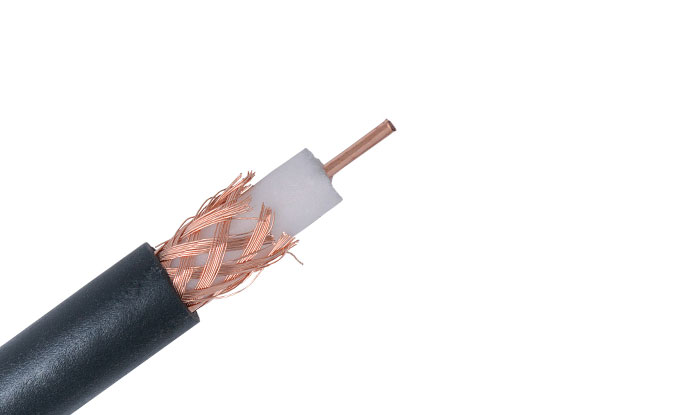

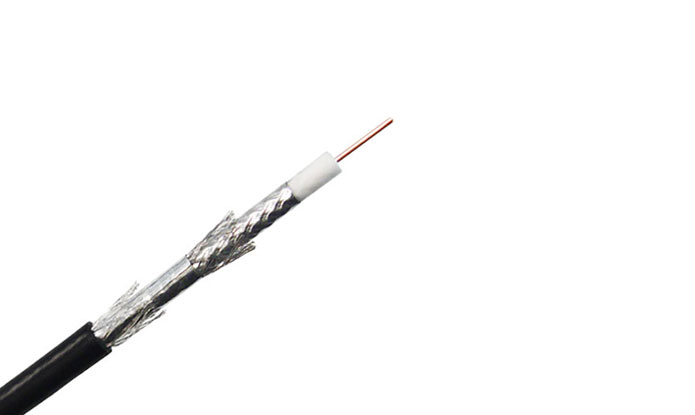

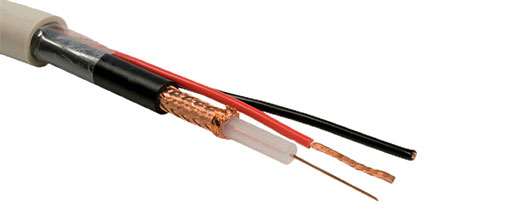

RG59 Coax Cable
RG59 Coax Cable
RG59 Coax Cable
RG59 Coax Cable
Get A Quote
Product Inquiry
Product Picture
Product name
RG59 Coax Cable
RG59 Coax Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
RG59 Coaxial Cables can be used in CATV Audio/Visual, Radio Frequency applications.
Technical Data
a.Temperature range:
during installation: +5 °C up to+70 °C
fixed installed: -30 °C up to+70 °C
b.Nominal voltage: 30V
d.Minimal inner bending radius: 4D
Specifications
Low Voltage
Low Voltage
Working Temperature 70℃
Working Temperature 70℃
LSZH
LSZH

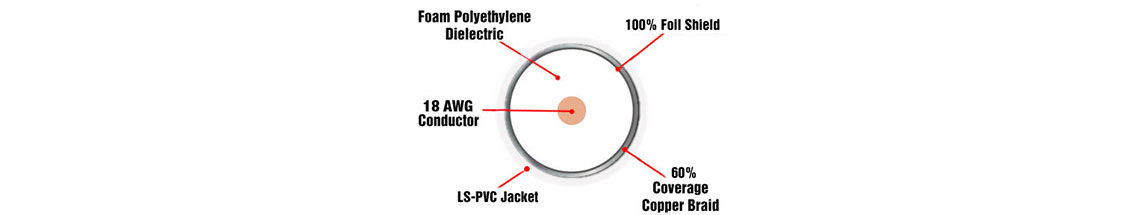

construction
Conductors:
Bare Copper Clad Steel OR Bare Copper 20AWG
Insulation:
Foam Polyethylene
Shielding:
Aluminum / Polyester plus Tinned Copper Braid (Copper wire braid is available) Dual Shield
Jacket:
PVC (LSZH jacket is available).
Jacket Color:
Black
parameter
Datasheet
Conductor Stranding Nom. Dia. of Cond. Dielectric (in) Nom. O.D. (in) Nom. Imp. Nom. Cap. (pF/ft) Approx LBS/MFT
Solid 0.032 0.145 0.233 75 22 31
