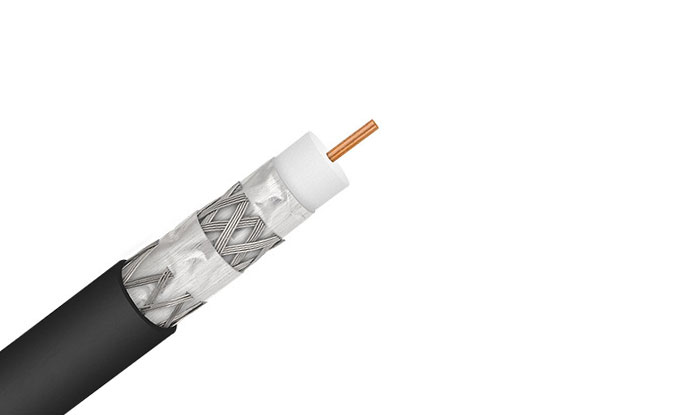

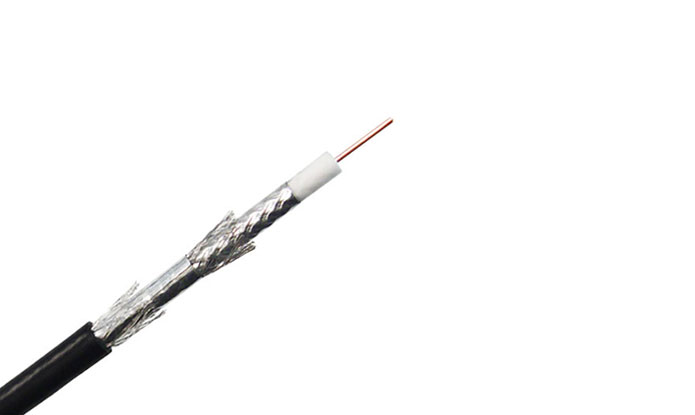

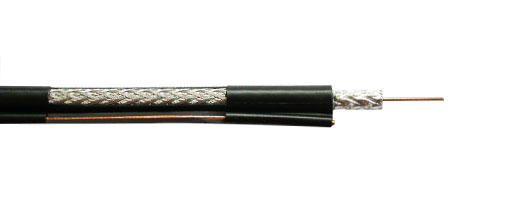

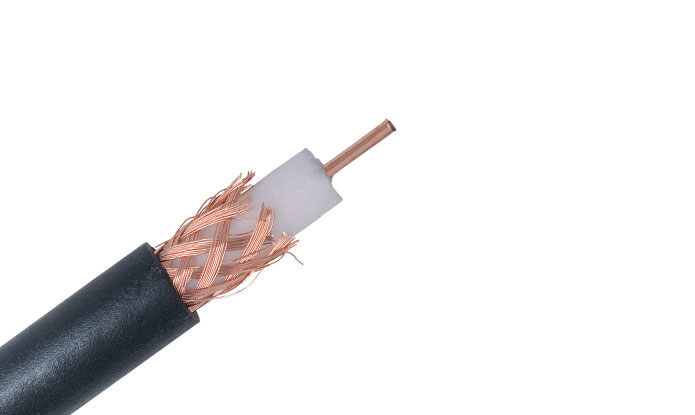

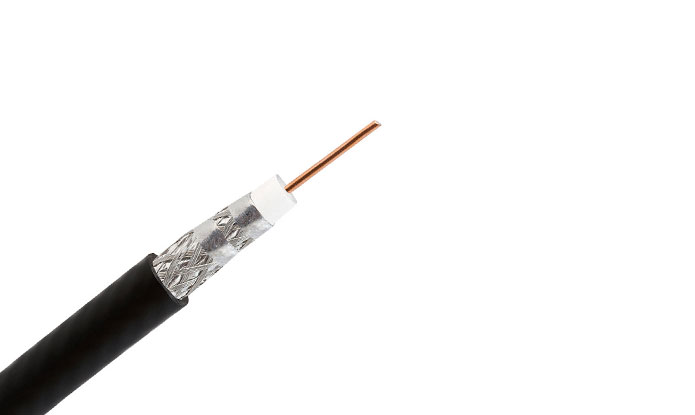

RG6 Coax Cable
RG6 Coax Cable
RG6 Coax Cable
RG6 Coax Cable
RG6 Coax Cable
Get A Quote
Product Inquiry
Product Picture
Product name
RG6 Coax Cable
RG6 Coax Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
RG6 Coaxial Cables can be used in CATV applications.
Technical Data
a.Temperature range:
during installation: +5 °C up to+70 °C
fixed installed: -30 °C up to+70 °C
b.Nominal voltage: 300V
d.Minimal inner bending radius: 4D
Specifications
Low Voltage
Low Voltage
LSZH
LSZH
construction
Conductors:
Bare Copper Clad Steel OR Bare Copper 18AWG
Insulation:
Foam Polyethylene
Shielding:
Aluminum / Polyester plus Tinned Copper Braid (Copper wire braid is available) Dual Shield
Jacket:
PVC (LSZH jacket is available)
Jacket Color:
Black
parameter
Datasheet
Conductor Stranding Nom. Dia. of Cond. Dielectric (in) Nom. O.D. (in) Nom. Imp. Nom. Cap. (pF/ft) Approx LBS/MFT
Solid 0.04 0.18 0.269 75 17 30
Other Cables With Similar Properties
