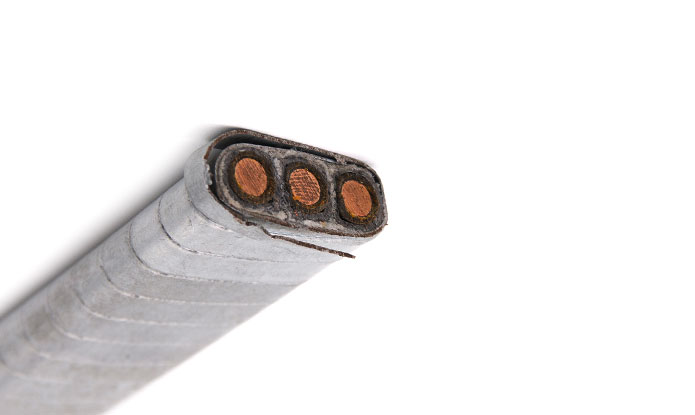

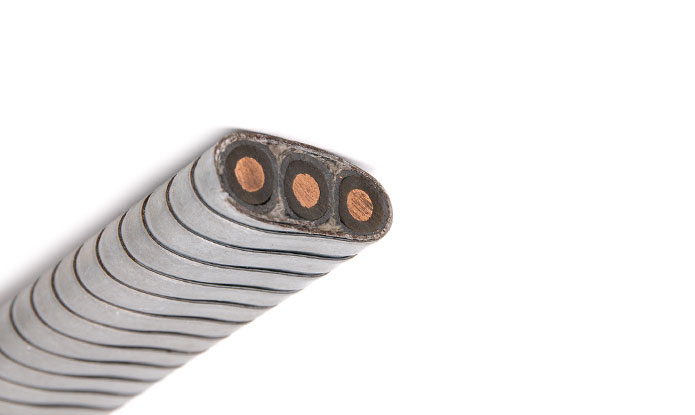

EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump
EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump
EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump
Get A Quote
Product Inquiry
Product Picture
Product name
EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump
EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Overview
This product is mainly used to provide power for ESP Cable conductor continuous working temperature is not more than 232℃(450F).
Standards:
API RP11S5, API RP11S6, IEEE1018
Specifications
Medium Voltage
Medium Voltage
Water Resistance
Water Resistance
Cold Resistant -40℃
Cold Resistant -40℃
Oil Resistance
Oil Resistance

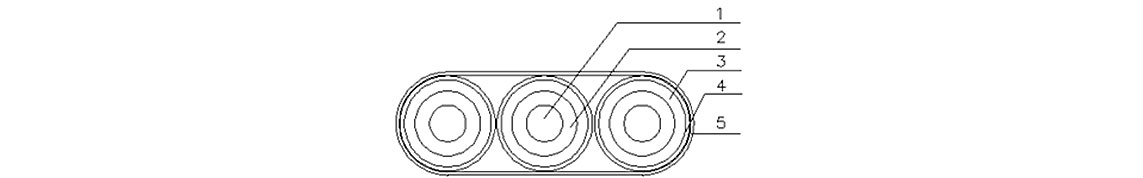

construction
1. Conductor            2. EPDM            3. Lead            4. Glass fiber cloth            5. Galvanized steel strip
PARAMETER
3kV
5kV
Type Conductor specification EPDM insulation LEAD sheath Finished size
calculated weight
kg/km
AWG Area
mm2
Outer diameter mm Thickness
mm
Outer diameter mm Thickness
mm
Outer diameter mm Thickness
mm
Width
mm
6EP3LDGF 6 13 4.12 1.7 7.52 0.76 9.12 13.14 32.72 1.7
4EP3LDGF 4 20 5.19 1.7 8.59 0.76 10.19 14.21 35.93 2.1
2EP3LDGF 2 33 6.54 1.7 9.94 0.76 11.54 15.56 40.00 2.6
1EP3LDGF 1 42 7.35 1.7 10.75 0.76 12.35 16.37 42.41 3.0
Type Conductor specification EPDM insulation LEAD sheath Finished size
calculated weight
kg/km
AWG Area
mm2
Outer diameter mm Thickness
mm
Outer diameter mm Thickness

mm
Outer diameter
mm
Thickness
mm
Width
mm
6EP5LDGF 6 13 4.12 1.9 7.92 0.76 9.52 12.54 34.00 1.85
4EP5LDGF 4 20 5.19 1.9 8.99 0.76 10.59 14.61 37.13 2.23
2EP5LDGF 2 33 6.54 1.9 10.34 0.76 11.94 15.96 41.00 2.77
1EP5LDGF 1 42 7.35 1.9 11.15 0.76 14.75 16.80 43.60 3.14
