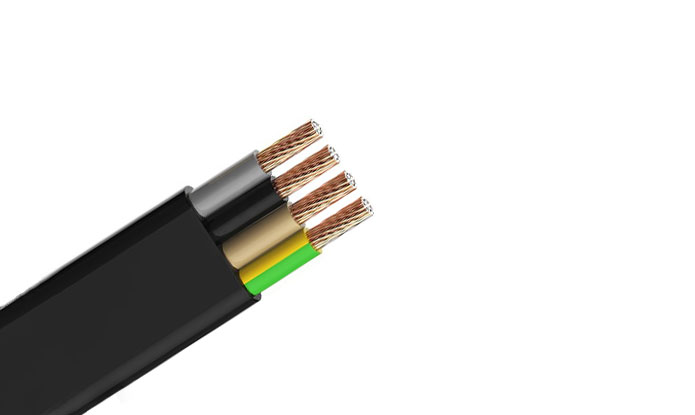

Submersible Cable, Flat EPDM Submersible Pump Cable, Rubber Submersible Pump Cable

OVERVIEW

SPECIFICATIONS

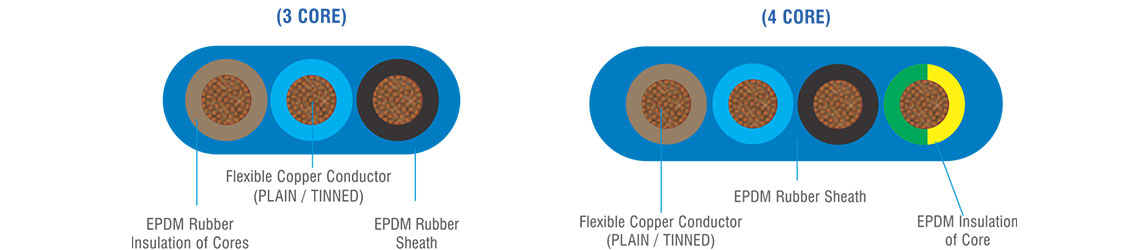

CONSTRUCTION

PARAMETER

Application

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

Special Features:

Meets the requirement of CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
Designed for heavy duty use.
Excellent resistant to oils, acids, chemicals, ozone & solvents.
Excellent Weather Resistant.
Excellent Electrical Properties.
Temperature range -40°C to +90°C

Specifications

Low Voltage

Working Temperature 90℃

Cold Resistant -40℃

Oil Resistance

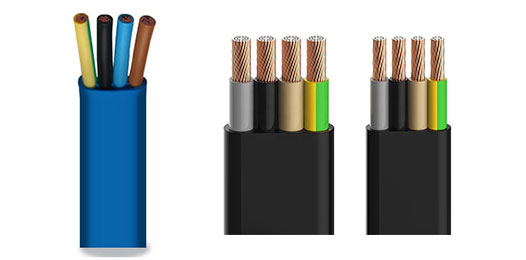

construction

Conductor:

Finely stranded bare flexible copper conductor

Insulation:

EPR rubber

Sheath:

Black \ Blue heavy duty EPR.

Core Colours:

3core : Red, Yellow, Blue OR Brown, Blue, Black
4core: Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

parameter

3 Cores (1100V)

4 Cores (1100V)

Conductor		Rubber Insulation		Rubber Sheath			Conductor Resistance at 20°C (Max) ohms/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	Height mm	Width mm
1.50	22/0.30	0.80	3.25	1.15	6.20	12.80	12.10	23
2.50	36/0.30	0.90	3.80	1.15	6.40	14.60	7.41	30
4.00	56/0.30	1.00	4.50	1.15	7.40	16.80	4.95	34
6.00	84/0.30	1.00	5.25	1.15	8.00	18.70	3.30	43
10.00	140/0.30	1.00	6.50	1.40	9.90	23.70	1.91	61
16.00	224/0.30	1.00	8.00	1.40	11.80	28.00	1.21	81
25.00	350/0.30	1.20	10.10	2.00	14.70	35.50	0.780	108
35.00	490/0.30	1.20	11.30	2.00	16.80	39.50	0.554	135
50.00	703/0.30	1.40	13.30	2.20	18.30	45.50	0.386	170
70	988/0.30	1.40	15.30	2.20	20.00	51.00	0.272	220
95	1349/0.30	1.60	18.00	2.40	23.50	60.00	0.206	265
120.00	608/0.50	1.80	19.80	2.80	25.00	65.00	0.161	306
150.00	760/0.50	2.20	22.70	4.00	30.70	76.10	0.129	365

Conductor		Rubber Insulation		Rubber Sheath			Conductor Resistance at 20°C (Max) ohms/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	Height mm	Width mm
1.50	22/0.30	0.80	3.25	1.30	6.20	15.80	12.10	23
2.50	36/0.30	0.90	3.80	1.30	6.40	18.00	7.41	30
4.00	56/0.30	1.00	4.50	1.45	7.40	21.00	4.95	34
6.00	84/0.30	1.00	5.25	1.50	8.00	24.50	3.30	43
10.00	140/0.30	1.00	6.50	1.80	9.90	29.70	1.91	61
16.00	224/0.30	1.00	8.00	1.95	11.80	36.00	1.21	81
25.00	350/0.30	1.20	10.10	2.00	14.70	45.10	0.780	108
35.00	490/0.30	1.20	11.30	2.00	16.80	50.10	0.554	135
50.00	703/0.30	1.40	13.30	2.20	18.30	58.10	0.386	170
70	988/0.30	1.40	15.30	2.20	20.00	66.50	0.272	220
95	1349/0.30	1.60	18.00	2.40	23.50	77.30	0.206	265
120.00	608/0.50	1.80	19.80	3.50	27.40	87.00	0.161	306
