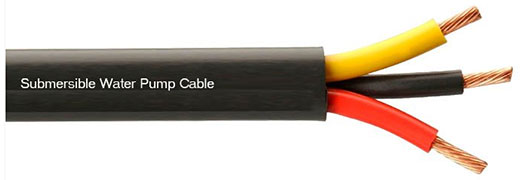

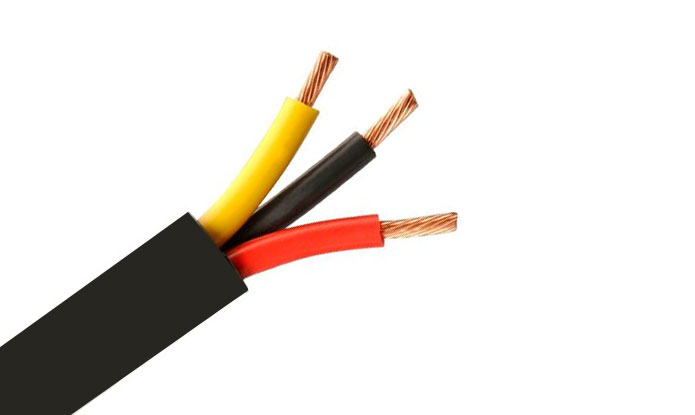

Submersible Cable, Round Submersible Pump Cable, Rubber Submersible Pump Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

Special Features:

Cable is in accordance with UL specification for 75 degree C type TW cable.
Generally conforming to: UL 83, IEC 60227, BS 6500, ISI 694.
Excellent resistant to moisture, abrasion, grease and oil.
Excellent resistance to oils, acids, chemicals and ozone.

Specifications

Low Voltage

Oil Resistance

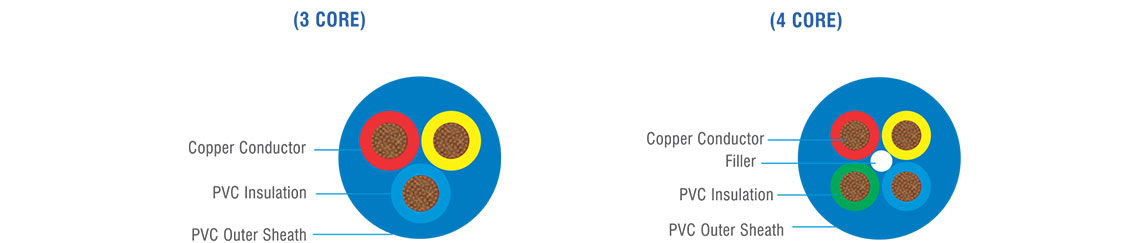

construction

Conductor:

Finely stranded bare flexible copper conductor

Insulation:

PVC

Sheath:

PVC

Core Colours:

3core : 3core : Red, Yellow, Black,
4core: Red, Yellow, Black, Green

parameter

3 Cores (450/750V)

4 Cores (450/750V)

Conductor		Rubber Insulation	Rubber Sheath	Approx. Overall Dia.	Conductor Resistance at 20°C (Max)
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Thickness	Approx. Overall Dia.	Conductor Resistance at 20°C (Max)
Sq. mm.	Nos./mm	mm	mm	mm	ohms/km
1.50	22/0.30	0.80	1.60	10.20	12.10
2.50	36/0.30	0.90	1.80	11.90	7.41
4.00	56/0.30	1.00	1.90	13.50	4.95
6.00	84/0.30	1.00	2.10	15.60	3.30
10.00	140/0.30	1.20	3.30	20.60	1.91
16.00	226/0.30	1.20	3.50	24.20	1.21
25.00	354/0.30	1.40	3.80	29.10	0.780
35.00	490/0.30	1.40	4.10	32.10	0.554
50.00	703/0.30	1.60	4.50	38.10	0.386
70.00	988/0.30	1.60	4.80	42.30	0.272
95.00	1349/0.30	1.80	5.30	49.10	0.206

Conductor		Rubber Insulation	Rubber Sheath	Approx. Overall Dia.	Conductor Resistance at 20°C (Max)
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Thickness	Approx. Overall Dia.	Conductor Resistance at 20°C (Max)
Sq. mm.	Nos./mm	mm	mm	mm	ohms/km
1.50	22/0.30	0.80	1.70	11.20	12.10
2.50	36/0.30	0.90	1.90	13.00	7.41
4.00	56/0.30	1.00	2.00	14.90	4.95
6.00	84/0.30	1.00	2.30	17.50	3.30
10.00	140/0.30	1.20	3.40	22.60	1.91
16.00	224/0.30	1.20	3.60	27.10	1.21
25.00	350/0.30	1.40	4.10	32.70	0.780
35.00	490/0.30	1.40	4.40	36.20	0.554
50.00	703/0.30	1.60	4.80	42.30	0.386
70.00	988/0.30	1.60	5.20	48.20	0.272
95.00	1349/0.30	1.80	5.90	55.60	0.206
