EPDM insulated and Lead sheath, double galvanized steel armor, With 2×3/8CT(2205) ESP Cable (Flat)

Home > Products > Cables by type > ESP and Tubing Cable

Get A Quote

Product Inquiry

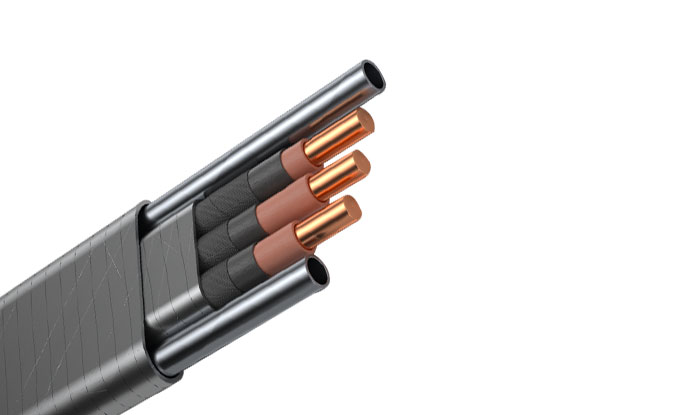

Product Picture

Product name

EPDM insulated and Lead sheath, double galvanized steel armor, With 2×3/8CT(2205) ESP Cable (Flat)

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Overview

5kV EPDM insulation and Lead sheath With double tube 3/8x0.049 "(2205) Double Layer Steel tape Armor ESP cable
This product is mainly used to provide power for ESP Cable conductor continuous working temperature is not more than 232℃(450F)

Standards：

IEEE1017.2-2021

Part Number:

104394161

construction

1-Copper conductor 2-EPDM insulation 3-Lead sheath 4-Bedding Tape 5-Capillary Tube
6-Inner Armor 7-0uter Armor

PARAMETER

5KV

Type

Conductor specification

EPDM insulation

LEAD sheath

Stainless tube

Finished size
≤

Weight

kg/km

AWG

Area
mm²

Outer diameter mm

Thickness
mm

Outer diameter mm

Thickness
mm

Outer diameter
mm

Thickness
mm

Outer diameter mm

Thickness

mm

Width

mm

5EL40G20C2G20F2-1(2205)

33.6

6.54

1.91

10.34

1.0

12.34

1.245

9.525

19.06

64.53

4.2
