British Standard Industrial Cable 6192Y/6193Y to BS 6004
British Standard Industrial Cable 6192Y/6193Y to BS 6004
Get A Quote
Product Inquiry

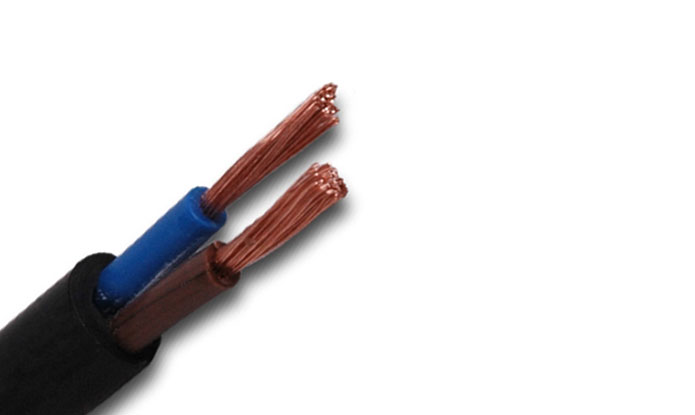

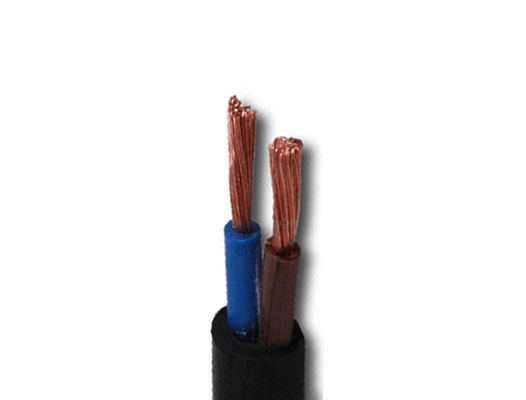

Product Picture
Product name
British Standard Industrial Cable 6192Y/6193Y to BS 6004
British Standard Industrial Cable 6192Y/6193Y to BS 6004
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit in conduit or trunking where mechanical protection is required.
Core Identification
2 cores: brown and blue
3 cores: brown, black and grey
Technical Characteristics
- Working voltage: 300/500v
- Test voltage: 2000 volts
- Minimum bending radius: 4xOverall diameter
- Operating temperature: -15º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩxkm
Specifications
Low Voltage
Low Voltage
Working Temperature 70℃
Working Temperature 70℃
Flame Retardant
Flame Retardant

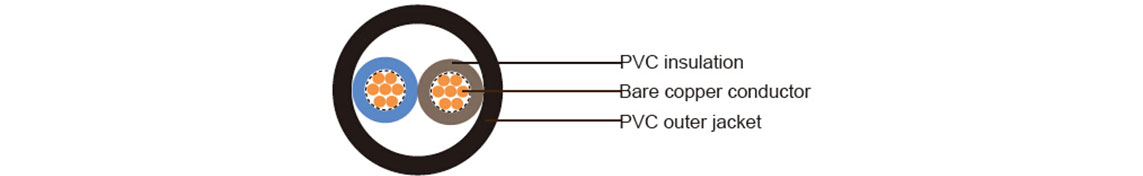

construction
- Fine bare copper strands
- Stranding to BS 6360, IEC 60228 CL-1 or 2
- PVC insulation type TI1 to BS 7655
- PVC sheath type T6 to BS 7655
parameter
6192Y/6193Y
AWG (NO OF STRANDS/ STRAND DIAMETER) NO. OF CORES X NOMINAL CROSS SECTIONAL AREA #XMM2 NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIMENSIONS NOMINAL WEIGHT KG/KM
LOWER LIMIT MM UPPER LIMIT MM
6192Y
17 2 × 1.0 0.6 0.9 4x6.2 4.7x7.4 53
16 2 × 1.5 0.7 0.9 4.4x7.0 5.4x8.4 70
14 2 × 2.5 0.8 1 5.2x8.4 6.2x9.8 105
12(7/20) 2 × 4 0.8 1 6x10.4 7.2x11.5 150
10(7/18) 2 × 6 0.8 1.1 6.8x11.5 8.0x13.0 205
8(7/16) 2 × 10 1 1.2 7.8x15.1 9.6x16 325
6(7/14) 2 × 16 1 1.3 9.8x17.2 11.0x18.5 465
6193Y
17 3 × 1.0 0.6 0.9 4x8.4 4.7x9.8 77
16 3 × 1.5 0.7 0.9 4.4x9.8 5.4x11.5 100
14 3 × 2.5 0.8 1 5.2x11.5 6.2x13.5 150
12(7/20) 3 × 4 0.8 1.1 6x14.8 7.4x16.5 230
10(7/18) 3 × 6 0.8 1.1 6.8x16.5 8.0x18.0 300
8(7/16) 3 × 10 1 1.2 7.8x21.0 9.6x22.5 485
6(7/14) 3 × 16 1 1.3 9.8x24.8 11.0x26.5 700
