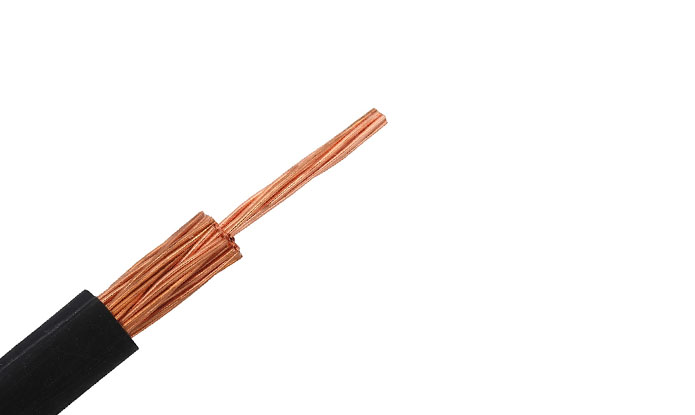

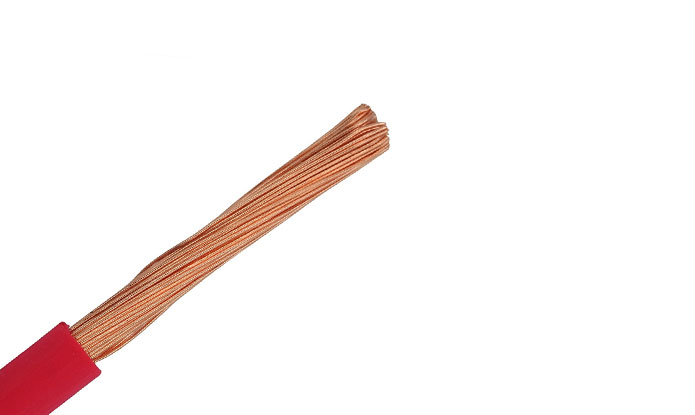

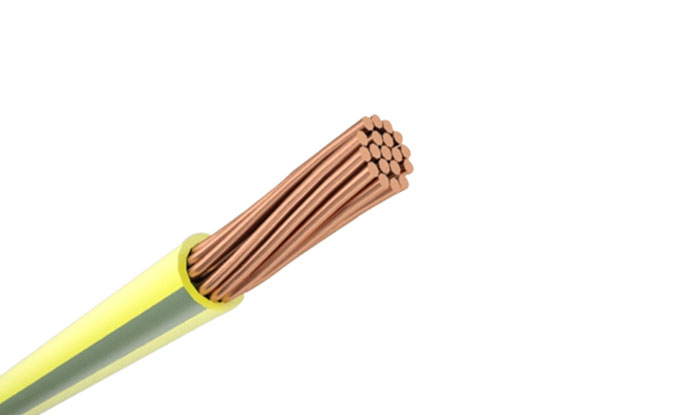

German Standard Industrial Cable H05V-K, Fixed Wiring Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

Standard and Approval

NF C 32-201-3
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant

Technical Characteristics:

WORKING VOLTAGE: 300/500v
TEST VOLTAGE: 2000 volts
FLEXING BENDING RADIUS: 12.5 x Ø
STATIC BENDING RADIUS: 12.5 x Ø
FLEXING TEMPERATURE: -5ºC to +70ºC
STATIC TEMPERATURE: -30ºC to +80ºC
FLAME RETARDANT: NF C 32-070
INSULATION RESISTANCE: 10 MΩ x km

Specifications

ROHS

Low Voltage

Flame Retardant

construction

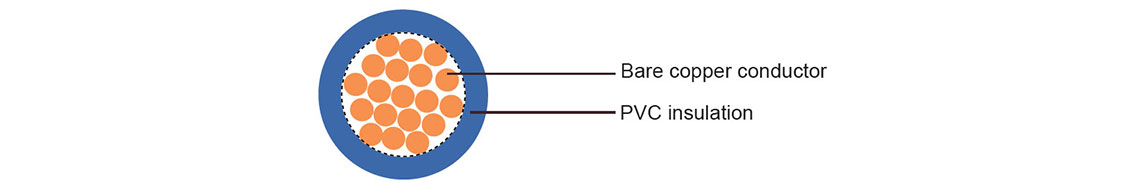

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart

parameter

H05V-K

AWG	NO. OF CORES X NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL COPPER WEIGHT	NOMINAL WEIGHT
	# X MM²	MM	MM	KG/KM	KG/KM
20(16/32)	1 x 0.5	0.6	2.1	4.9	10
18(24/32)	1 x 0.75	0.6	2.4	7.2	13
17(32/32)	1 x 1	0.6	2.6	9.6	15
