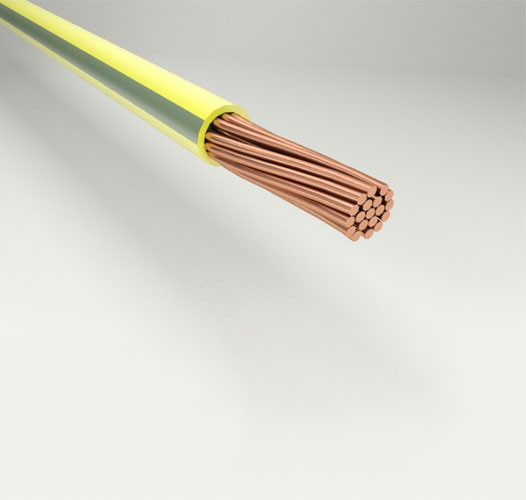

German Standard Industrial Cable H05V-K
German Standard Industrial Cable H05V-R/H07V-R
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.
Standard and Approval
<HAR> HD 21.3 S3, BS 6004, VDE-0281 Part-3, CEI 20-20/3, CEI 20-35 (EN60332-1).
CEI 20-52CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant
Technical Characteristics:
WORKING VOLTAGE: 300/500 volts(H05V-R), 450/750 volts(H07V-R)
TEST VOLTAGE: 2000 volts(H05V-R), 2500 volts(H07V-R)
FLEXING BENDING RADIUS: 15 x Ø
STATIC BENDING RADIUS: 15 x Ø
FLEXING TEMPERATURE: -5 ºC to +70 ºC
STATIC TEMPERATURE: -30 ºC to +80 ºC
SHORT CIRCUIT TEMPERATURE: +160 ºC
FLAME RETARDANT: IEC 60332.1
INSULATION RESISTANCE: 10 MΩ x km
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
Flame Retardant
Flame Retardant

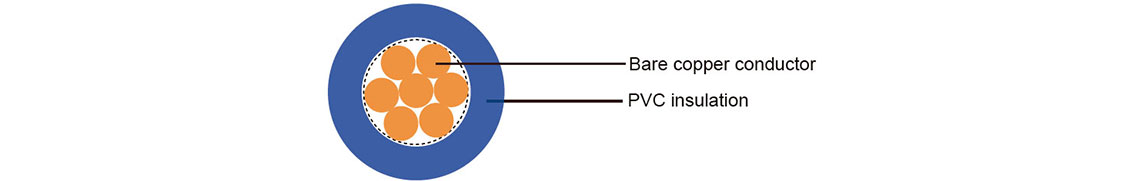

construction
Bare copper solid/strands conductor
Strands to VDE-0295 Class-2, IEC 60228 Cl-2
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
parameter
H05V-R/H07V-R
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
# X MM² MM MM KG/KM KG/KM
H05V-R
20(7/29) 1 x 0.5 0.6 2.2 4.8 9
18(7/27) 1 x 0.75 0.6 2.4 7.2 12
17(7/26) 1 x 1 0.6 2.6 9.6 15
H07V-R
16(7/24) 1 x 1.5 0.7 3.0 14.4 23
14(7/22) 1 x 2.5 0.8 3.6 24 35
12(7/20) 1 x 4 0.8 4.2 39 51
10(7/18) 1 x 6 0.8 4.7 58 71
8(7/16) 1 x 10 1 6.1 96 120
6(7/14) 1 x 16 1 7.2 154 170
4(7/12) 1 x 25 1.2 8.4 240 260
2(7/10) 1 x 35 1.2 9.5 336 350
1(19/13) 1 x 50 1.4 11.3 480 480
2/0(19/11) 1 x 70 1,4 12.6 672 680
3/0(19/10) 1 x 95 1,6 14.7 912 930
4/0(37/12) 1 x 120 1,6 16.2 1152 1160
300MCM(37/11) 1 x 150 1,8 18.1 1440 1430
350MCM(37/10) 1 x 185 2,0 20.2 1776 1780
500MCM(61/11) 1 x 240 2,2 22.9 2304 2360
  1 x 300 2.4 24.5   2940
  1 x 400 2.6 27.5   3740
