Annealed Plain Copper Conductor Single Core PVC Insulated (H05V2-R/H07V2-R) Cable
Annealed Plain Copper Conductor Single Core PVC Insulated (H05V2-R/H07V2-R) Cable
Get A Quote
Product Inquiry

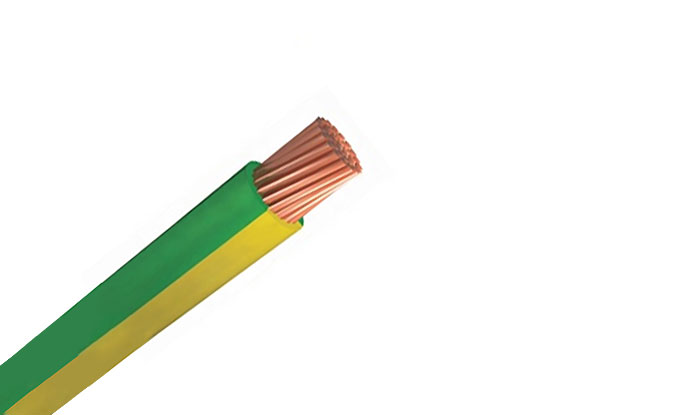

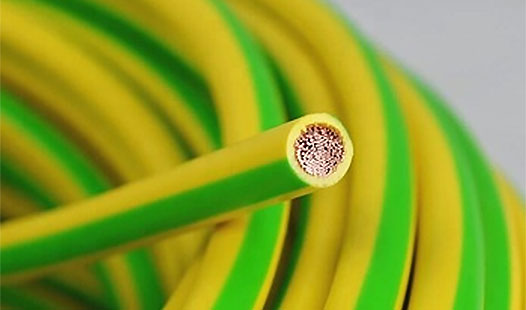

Product Picture
Product name
Annealed Plain Copper Conductor Single Core PVC Insulated (H05V2-R/H07V2-R) Cable
Annealed Plain Copper Conductor Single Core PVC Insulated (H05V2-R/H07V2-R) Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
Approval: RoHS2 2011/65/EU
H05V2-R/H07V2-R is a 90°C PVC insulated stranded conductor. Suitable for fixed installation. To be installed in conduit or duct systems, or as connection wire to be used in switch cabinets and similar applications.
Standards:
Conductor: IEC 60228,2
Construction: EN 50525-2-31
Flame retardant: IEC 60332-1-2
Properties
Temperature range: -30°C to +90°C
Voltage Rating: H05V2-R Uo/U  300/500 V
Voltage Rating: H07V2-R Uo/U  450/750 V
Specifications
Low Voltage
Low Voltage
Working Temperature 90℃
Working Temperature 90℃
Flame Retardant
Flame Retardant

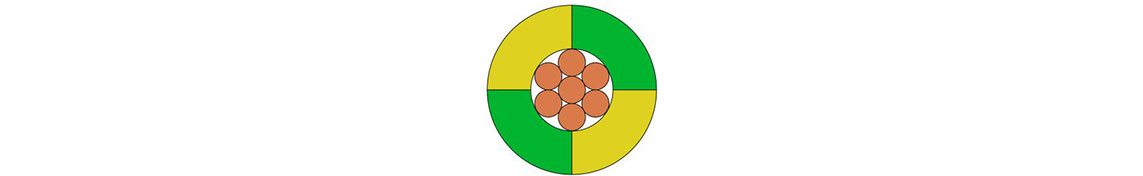

construction
Conductor:
Stranded bare copper conductor
Insulation:
90℃ PVC
Color:
Customer choice
Marking:
H05V2-R / H07V2-R
parameter
H05V2-R/H07V2-R
Type Code Cross-section
[mm]
Insulation thickness
[mm]
Outer diameter
[mm]
Copper weight
[kg/km]
Total weight
[kg/km]
H05V2-R 0.5 0.6 2.2 4.8 9
H05V2-R 0.75 0.6 2.3 7.2 12
H05V2-R 1 0.6 2.5 9.6 15
H07V2-R 1.5 0.7 3.0 14.4 22
H07V2-R 2.5 0.8 3.6 24.0 34
H07V2-R 4 0.8 4.1 38.4 50
H07V2-R 6 0.8 4.7 57.6 72
H07V2-R 10 1.0 6.1 96.0 119
H07V2-R 16 1.0 7.0 153.6 181
H07V2-R 25 1.2 8.8 240.0 280
H07V2-R 35 1.2 9.9 336.0 382
