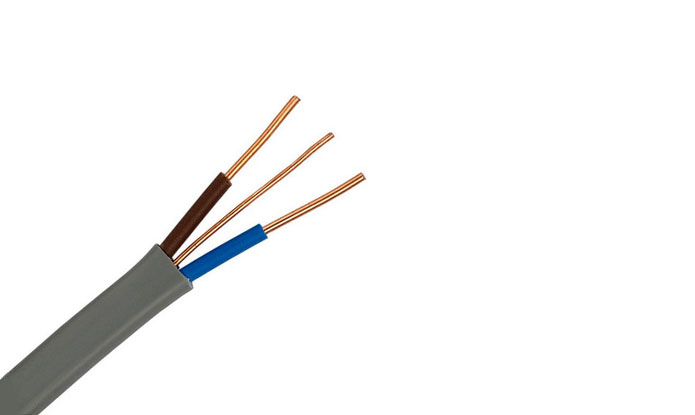

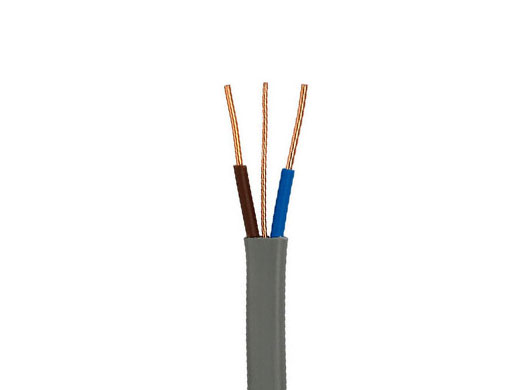

British Standard Industrial Cable 6241Y/6242Y/6243Y to BS 6004
British Standard Industrial Cable 6241Y/6242Y/6243Y to BS 6004
OVERVIEW
SPECIFICATIONS

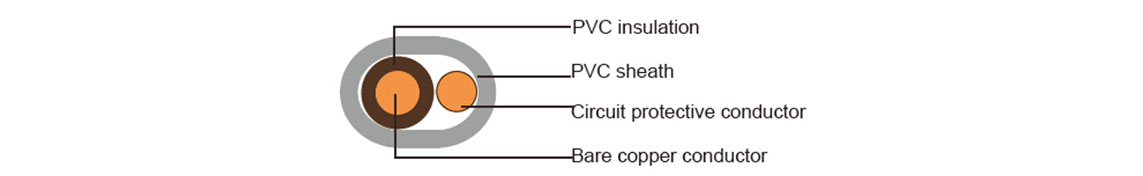

CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit or trunking where mechanical protection is required.
Core Identification
2 cores: brown and blue, or, for 2 × 1.0 and 2 × 1.5 cables, brown and brown
3 cores: brown, black (centre core) and grey
Technical Characteristics
- Working voltage: 300/500v
- Test voltage: 2000 volts
- Minimum bending radius: 4xOverall diameter
- Flexing temperature: -15º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩxkm
Specifications
Low Voltage
Low Voltage
Flame Retardant
Flame Retardant
construction
- Fine bare copper strands
- Stranding to IEC 60228 CL-1 or 2
- PVC insulation type TI1 to BS 7655
- The core or cores shall be laid parallel with the uninsulated circuit protective conductor
- For twin cores, the protective conductor centrally placed between cores in same plane
- For 3 cores, the protective conductor centrally placed between black and grey cores in same plane
- PVC sheath type T6 to BS 7655
parameter
6241Y
6242Y
6243Y
AWG (NO OF STRANDS/ STRAND DIAMETER) NO. OF CORES X NOMINAL CROSS SECTIONAL AREA #XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIMENSIONS CIRCUIT PROTECTIVE CONDUCTOR AWG NOMINAL WEIGHT KG/KM
LOWER LIMIT MM UPPER LIMIT MM
6241Y
17 1 × 1.0 0.6 0.9 3.9x5.1 4.8x6.0 17 45
16 1 × 1.5 0.7 0.9 4.4x5.4 5.3x6.6 17 55
AWG (NO OF STRANDS/ STRAND DIAMETER) NO. OF CORES X NOMINAL CROSS SECTIONAL AREA #XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIMENSIONS CIRCUIT PROTECTIVE CONDUCTOR AWG NOMINAL WEIGHT KG/KM
LOWER LIMIT MM UPPER LIMIT MM
6242Y
17 2 × 1.0 0.6 0.9 3.9×7.2 4.8x8.7 17 68
16 2 × 1.5 0.7 0.9 4.4x8.1 5.3x9.7 17 85
14 2 × 2.5 0.8 1 5.1x9.6 6.2x11.7 16 120
12(7/20) 2 × 4 0.8 1 5.7x10.8 6.9x13.1 16 175
10(7/18) 2 × 6 0.8 1.1 6.4x12.4 7.8x15.0 14 240
8(7/16) 2 × 10 1 1.2 7.9x15.5 9.5x18.9 12(7/20) 390
6(7/14) 2 × 16 1 1.3 8.9x18.1 10.8x21.9 10(7/18) 560
AWG (NO OF STRANDS/ STRAND DIAMETER) NO. OF CORES X NOMINAL CROSS SECTIONAL AREA #XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIMENSIONS CIRCUIT PROTECTIVE CONDUCTOR AWG NOMINAL WEIGHT KG/KM
LOWER LIMIT MM UPPER LIMIT MM
6243Y
17 3 × 1.0 0.6 0.9 3.9x9.4 4.8x11.4 17 91
16 3 × 1.5 0.7 0.9 4.4x10.7 5.3x12.9 17 115
14 3 × 2.5 0.8 1 5.1x12.6 6.2x15.3 17 170
12(7/20) 3 × 4 0.8 1.1 5.9x14.8 7.1x17.9 16 250
10(7/18) 3 × 6 0.8 1.1 6.4x16.8 7.8x20.2 14 340
8(7/16) 3 × 10 1 1.2 7.9x21.3 9.5x25.7 12(7/20) 540
6(7/14) 3 × 16 1 1.3 8.9x24.6 10.8x29.7 10(7/18) 790
